| Categories | Jumbo Drilling Machine |
|---|---|
| Brand Name: | Glorytek |
| Model Number: | UJ33 |
| Certification: | CE and others |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | 290000-350000USD Per set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 set per month |
| Delivery Time: | 30-40days |
| Packaging Details: | Seaworthy package |
| Keyword: | Underground drill jumbo |
| Hole diameter range: | 41-89 mm |
| Hole depth(mm): | 5270 |
| Drill Pipe(mm): | T38-H35-R32/5525 |
| Drilling coverage area(㎡): | 180 |
| Total weight(T): | ≤50T |
| L*W*H-roof down/up(mm): | 16976*2930*3159/3859 |
| Turning radius(inner/outer)mm: | Inner R6500,outer R12100 |
| Face size (W *H)(m): | 16.3*13.2 |
| Cooling system type: | Water cooling |
| Company Info. |
| Glorytek Industry (Beijing) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

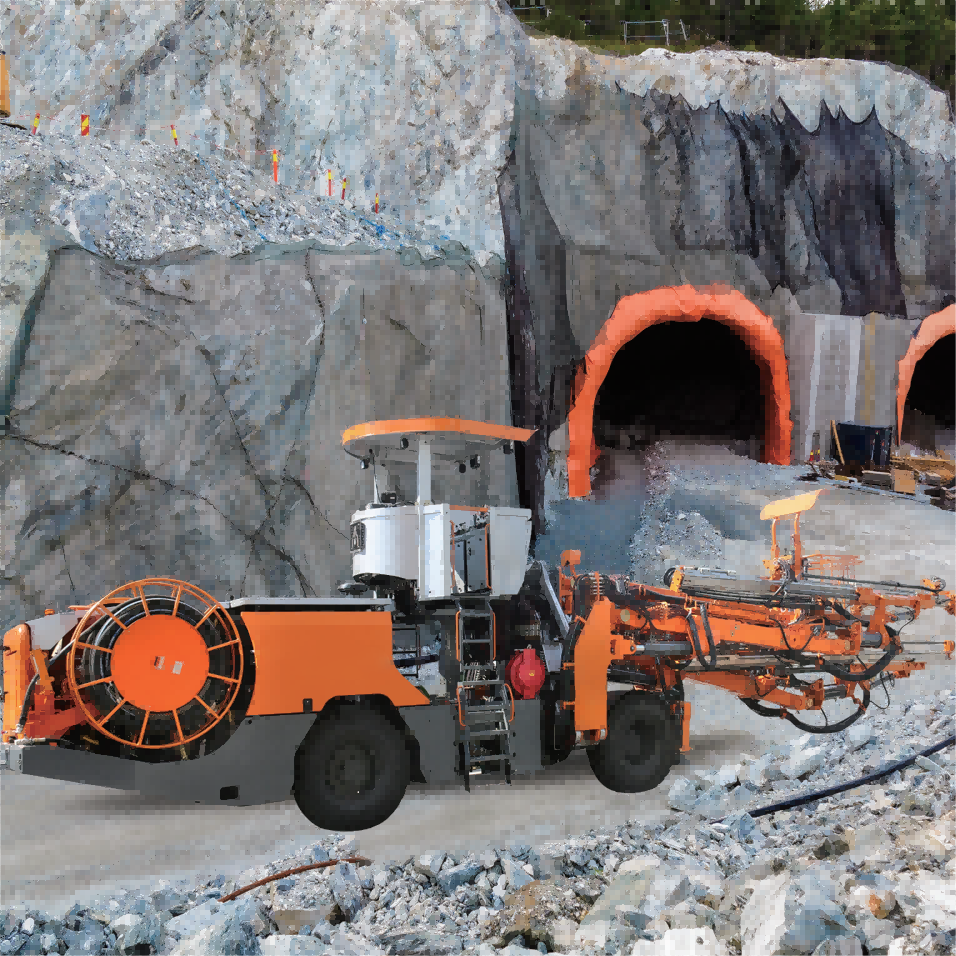

UJ33 Drilling Jumbo
Product Description
UJ33 is designed for construction and excavation of underground facilities such as highway,railway,hydro power and tunnel etc. It configured with three heavy duty booms plus a service platform, elevating cab, self-reeling and in winding reels for electric cable and water hose, automatic grease lubrication system for easy operation and maintenance. The two outer drill booms are equipped with an eagle-type extendable seat, and an optional automatic drill rod handling function is also available, which is suitable for the excavation and bolting operation of larger section tunnels. The full hydraulic piloy proportional control method is adopted, which is characterized by precise control and low failure rate. A high frequency hydraulic rock drill was installed to meet the customer's high penetration rate demanding.
Product Picture
Technical Parameter
| Main Technical specifications | Drifter | ||||
| Hole Range (mm) | 41-89 | Cooling system type | Water cooling | Model | ZY104M |
| Hole depth(mm) | 5270 | LxW x H-roof down/up(mm) | 16976×2930×3159/3859 | Impact power(kW) | 20 |
| Drill Pipe(mm) | T38-H35-R32/5525 | Turning radius(inner/outer)mm | Inner R6500,outer R12100 | Rotation torque(Max.)(N.m) | 680 |
| Drilling coverage area(㎡) | 180 | Face size (W x H)(m) | 16.3×13.2 | Impact frequency(HZ) | 60 |
| Total weight(T) | ≤50T | Hydraulic system pressure(bar) | 210 | ||
| Feed | Electric motor | Rotation speed(rpm) | 0-340 | ||
| Total length(mm) | 7244 | Rate Power (kW) | 55*3 | Flow rate ( L/min ) | 66 |
| Feeding length(mm) | 5270 | RPM ( rpm ) | 1475 | Rotation system | Separate rotation |
| Feed extension(mm) | 1800 | Frequency (Hz) | 50 | Adapt to rock hardness | M.M. P hardness f=20or less |
| Lift force (kN) | 20 | Voltage(V) | 380 | Penetration rate (m/min) | 2 |
| Screw air compressor system | Diesel engine | Tramming | |||
| Pressure(bar) | 8 | Model | B6.7CS4-240C | Tramming speed(km/h) | 17/10/5 |
| FAD (m3/min) | 1 | Rate Power (kW) | 177 | Traction force( kN) | 150 |
| Boom | Gradeability(°) | 15 | |||
| Penetration rate (m/min) | 3 | Boom lift angle ( max.)(°) | +68/-45 | Rear axle oscillation( ° ) | ±8 |
| Boom extension(mm) | 1600 | Feed tilt (°) | +3/-90 | Tramming brake | Two independent loops |
| Boom swing angle(max.)( ° ) | ±45 | Feed beam roll over(°) | 360(Spiral) | Ground clearance(mm) | 397 |
| Service platform | Boom lifting angle | ||||
| Type | Mixed coordinate system | Boom swing angle(°) | ±45 | Pump | Variable displacement pump |
| Parallel holding | Total | Boom lifting angle(°) | +60/-35 | System pressure(bar) | 230 |
| Boom extension(mm) | 5000 | Rated load (Kg) | 600 | Hydraulic tank capacity(L) | 900 |
| Chassis | Filtration accuracy (μm) | 10 | |||
| Type | Rear axle steering | Steering system Hydrostatic | Power Steering System | Water system | |
| Steering angle (°) | -0.76 | Approach angle&departure angle(°) | 15 | Booster pump | Centrifugal |
| Cab | Elevating cab | Hydraulic oil tank(L) | 150 | Flow rate ( L/min ) | 300 |
| Electric system | Working pressure ( bar ) | 17 | |||
| Cable reel capacity (m) | 100 | Control system voltage(V) | 24 | Min.water inlet pressure ( bar) | 2 |
Our Company & Servce
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and
exporting top quality drilling equipment and drilling parts for
more than 20 years. We are supported and assisted by highly
experienced R&D team and enginners that enable us to complete
all the assigned projects successfully as per clients'
requirements.
Our factory covers an area of 250,000 square meters, construction
area is about 150,000 square meters, having machining machinery,
CNC processing center, friction welding machine, testing equipments
etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including
Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia,
South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
|
