| Categories | Power Relay |
|---|---|
| Brand Name: | NNC |
| Model Number: | NNC71K(JQX-116F) |
| Certification: | CE/CCC |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | get latest price |
| Payment Terms: | L/C |
| Supply Ability: | 30k pcs 7 days |
| Delivery Time: | 7-14 days |
| Theory: | Power Relay |
| Coil Contact: | 1H(SPST-NO)/2Z(DPDT);2H(DPST-NO) |
| Coil Voltage: | DC6-220V, AC6-380V (Customize allowed) |
| Coil Material: | Ag Alloy |
| Max Switching Voltage: | 277VAC |
| Electrical Life: | 1*10^5 |
| Mechanical Life: | 1*10^7 |
| Rated Current: | 30A |
| Company Info. |
| CLION ELECTRIC CO.,LTD |
| View Contact Details |
| Product List |

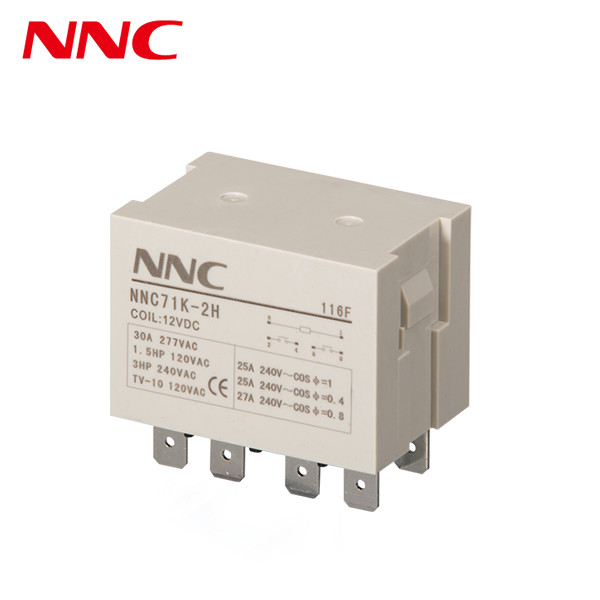

NNC71K Power Relay
| Specification | |||
| Dimension | 68mm*33.4mm*47mm | 50.6mm*33.4mm*47mm | |
| Contact Feature | Form | 1H(SPST-NO);2H(DPST-NO) | |
| Rated load | 30A | ||
| Max switching voltage | 277VAC | ||
| Contact resistance | ≤100mΩ | ||
| Material | Silver Alloy | ||
| Electrical life | ≥1*105 | ||
| Mechanical life | ≥1*107 | ||
| Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||
| Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||
| Maximum voltage (23℃) | 110%*Rated voltage | ||
| Coil voltage | DC6-220V, AC6-380V (Customize allowed) | ||
| Coil power | DC: 2.0W, AC: 4VA | ||
| Pick-up time | ≤25ms | ||
| Release time | ≤15ms | ||
| Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | |
| Between Opposite-pole contacts | 1500VAC/1min(leakage current 1mA) | ||
| Between contacts and coil | 2500VAC/1min(leakage current 1mA) | ||
| Insulation resistance | ≥100mΩ(500VDC) | ||
| Ambient temperature | -25℃ ～55℃ | ||
| Ambient humidity | 45%-75%RH | ||
| Atmospheric pressure | 86-106KPa | ||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||
| Installation | Screw | ||
Certificate
Shipment & Packaging
| Packing | 1Z/2Z | |
| Outer Box(pcs) | 150 | |
| Dimension of the carton | 40*26.5*34.5CM | |
| Weight | G.W:12KG N.W:11KG |
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before
packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the
express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
|
