| Categories | Industrial Air Springs |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | G3013 |
| Place of Origin: | Guangzhou,China |
| Certification: | ISO/TS16949:2009 |
| MOQ: | 5 |
| Price: | USD19.9/PC-USD49.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 5-8 Working Days |
| Payment Terms: | T/T, Western Union, Paypal or Others |
| Supply Ability: | 1000PCS/Week |
| Product NO.: | W02-358-3000 |
| Shape: | Sleeve Convoluted |
| Operating Temperature: | -30°C+70°C |
| Rubber Type: | Natural Rubber And Cord |
| Upper installation: | 5/16-18 UNC |
| Application: | Automatic Conveyor Belt Machine |
| MAX H.: | 3.5 Inches |
| After-sales Service: | 12 Months |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

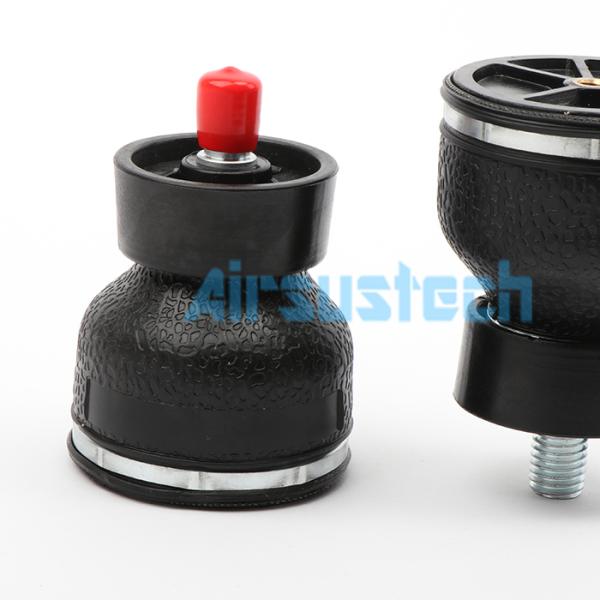

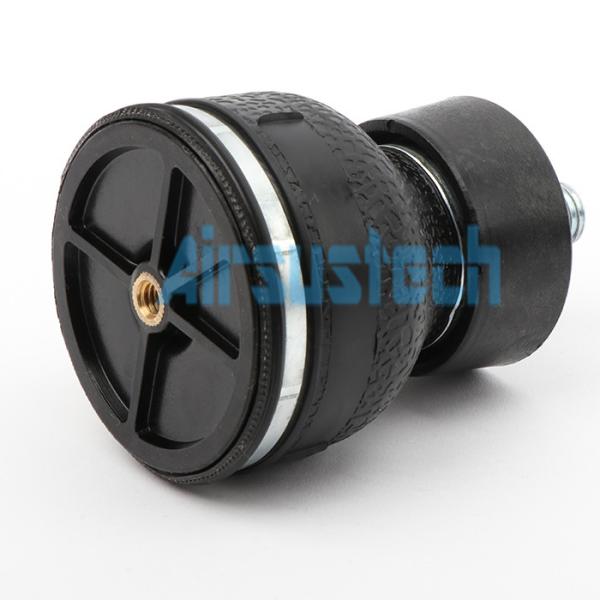

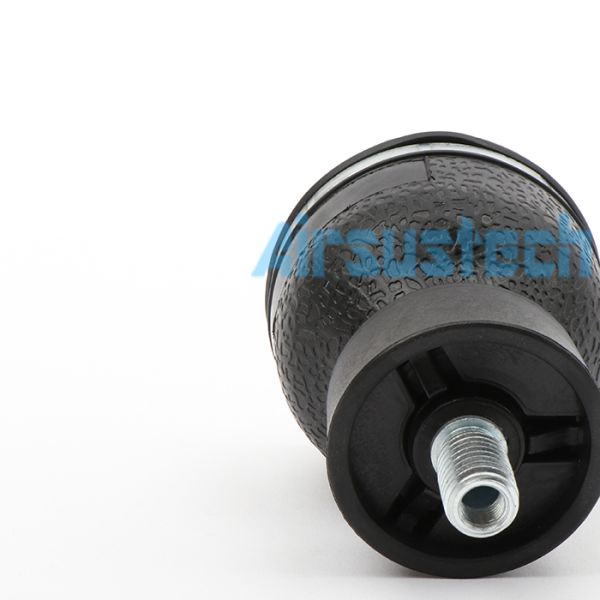

The AIRSUSTECH Air Springs are commonly used in a variety of applications such as heavy-duty machinery, trucks, trailers, and agricultural equipment. They are perfect for use in any industry that requires the isolation of vibration and shock. Additionally, the G3013 Air Springs are a reliable and efficient solution for managing vibrations in industrial machinery. Designed with natural rubber and cord, they provide durable and long-lasting performance.
G3013 Air Springs Technical Parameters:
The Diameter of Top Cover Plate: 2.4 inches
The Diameter of Bottom Plate: 2.88 inches
Air Fitting: 1/8 NPT
Stroke: 2 inches
Type: Plastic Stud
Max Diameter at 60 PSIG: 3.4 inches
Maximum Height: 1.5 inches
Minimum Height: 3.5 inches
| Dynamic Characteristics at 2.5 in. Design Height (Required for Airmount isolator design only) | ||||
| Volume @ 60 PSIG = 9.2 in3 | Natural Frequency | |||
| Gage Pressure(PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 210 | 336 | 235 | 3.92 |
| 60 | 330 | 467 | 224 | 3.73 |
| 80 | 450 | 619 | 220 | 3.67 |
| 100 | 570 | 740 | 214 | 3.57 |
| Goodyear | 1S3-013, 1S3 013, 1S3013 |
| Firestone | W02-358-3000, W02 358 3000, W023583000 WO2-358-3000, WO2 358 3000, WO23583000 |
W02-358-3001, W023583001, W02 358 3001 WO2-358-3001, WO2 358 3001, WO23583001 | |
| Contitech | SK37-6P02, SK37 6P02, SK376P02 SK37-6PO2, SK37 6PO2, SK376P02 |
| Prevost | 950208 |
AIRSUSTECH G3013 Air Springs Advantages:
1. Improve the ride comfort of the vehicle;
2. Improve the stability of vehicle driving control;
3. Enhance the vehicle driving power and braking force on bumpy
road;
4. The body height remains the same, will not increase or decrease
with the load, reduce or increase;
5. Prolong the service life of tires and brake discs;
6. Reduce electrical, air conditioning, exhaust system, bridge,
body and chassis maintenance costs;
7. Prolong the service life of the vehicle and increase the
depreciation value.


|
