6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Categories Vacuum Freeze Dryer
Brand Name: Lanphan
Model Number: HFD-20
Certification: CE
Place of Origin: China
MOQ: 1 Unit
Price: $5970/pc
Payment Terms: L/C, T/T, Paypal...
Supply Ability: 500 Units per Month
Delivery Time: 3-7 work days
Packaging Details: wooden box package
Type: Production Freeze Dryer
Capacity: 25kg/h
Condition: New
Power(w): 4500W
Cold trap temperature: -55 degree
Vacuum degree: less than 2Pa
Voltage: 110v/220v/380v/50Hz
After-sales service provided: Online support
Application: Food Processing,Laboratory,Food or lab freeze drying
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

6 trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry

Production Freeze Dryer principle and process

The principle of vacuum freeze drying is to remove water through sublimation and collect water through condensation. The vacuum freeze drying process is divided into three stages: (product freezing stage, primary freeze drying stage, secondary freeze drying stage, residual moisture <1%)

Advantages of Production Freeze Dryer

Remove more moisture

One of the main reasons for removing moisture from food is to prevent the spread of mold and bacteria. All living organisms need moisture to thrive. Therefore, by reducing the moisture content, it becomes almost impossible for them to survive. Most home dehydrators can remove about 90 to 95 percent of the water in food.

Better nutritional content

Drying foods does not change the fiber or iron content. However, many vitamins and minerals begin to degrade at high temperatures. Freeze-dried foods retain more of these valuable vitamins and minerals.By comparison, freeze drying will remove up to 98 to 99 percent of moisture content...

Production Freeze Dryer Parameter

ModelHFD-9HFD-10HFD-15HFD-20HFD-25
Tray space0.9m21m21.5m22m22.5m2
Cold trap temperature-55ºC
Ultimate Vacuum<2pa
Power supply220V/50HZ can be customized 110V or 380V
Processing capacity(kg/batch)12-1414-1515-2025-2629-30
Material tray size200*425mm309*780mm270*780mm390*900mm390*900mm
Number of trays10pcs4pcs7pcs6pcs7pcs
Layer Spacing35mm65mm40mm40mm48mm
Capture water volume12KG/24H12KG/24H18KG/24H26KG/24H30KG/24H
Overall power2300W3000W3000W4500W4500W

Production Freeze Dryer Description

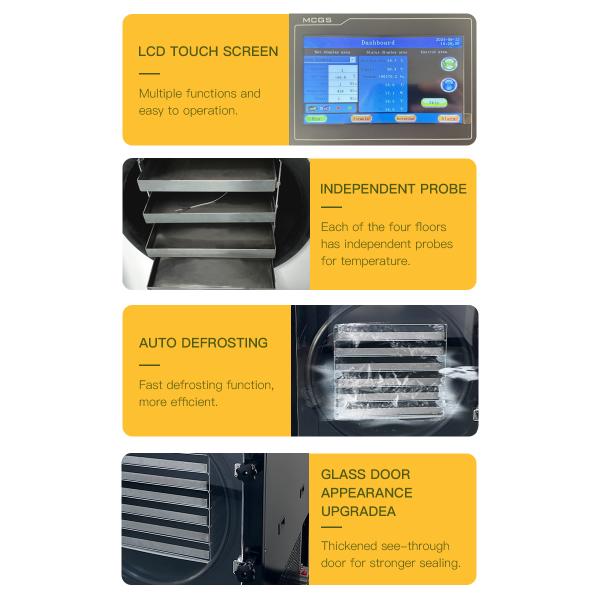

Production Freeze Dryer Details

Production Freeze Dryer Size

Production Freeze Dryer Parts

Production Freeze Dryer Factory
