12" x 3 Original Norgren M/31123 Single Acting Air Bellow 330mm Stroke Industrial Air Spring

Categories Industrial Air Spring
Brand Name: Norgren
Model Number: M/31123
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou China
MOQ: 5pcs
Price: USD199.9-299.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Part: Industrial Air Spring
Stroke Length: 330 mm
Transport Package: Cartons
After-sales Service: 1 Year
Medium: Compressed Air
Port Size: G1/2
OEM No.: M/31123
Operating Temperature: -40 ... 70 °C, -40 ... 158 °F
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

12" x 3 Original Norgren M/31123 Single Acting Air Bellow 330mm Stroke Industrial Air Spring

12" x 3 Original Norgren M/31123 Single Acting Air Bellow 330mm Stroke Industrial Air Spring

Product Description

Product Name: Norgren Air Spring
Brand: NORGREN
Model NO.: M/31123 / M 31123 / M31123
NominalØ(inch)xconvolutions: 12''x2 / 12'' x 2 / 12x2
Medium Compressed Air
Operating Temperature: -40 ... 70 °C, -40 ... 158 °F
Operating Pressure: 0 ... 8 bar
Port Size: G1/2
Nominal Diameter: 12"
Number Of Convolutions: 3

Replaces These Air Springs (Air Bellows)
Firestone No.: W01-R58-4062 / W01R584062 / W01 R58 4062
Firestone Style: 12''x2 / 12'' x 2 / 12x2
Dunlop FR: 12''x2 SP1542
Continental ContiTech: FT 412-32 DS CR 66339
Continental ContiTech: FT 412-32 1/2 M10
Continental ContiTech: FT 412-32 DS G1/2
Continental ContiTech: FT 412-32 DS G1/2 CR
Continental ContiTech: FT 412-32 DS CR G1/2
Continental ContiTech Bellows:: FT 412-32 / FT412-32 / FT41232
Parker: 12''X3 9109051

M/31123 Norgren Air Spring Technical Data

Weight6.9KG
Maximum height430mm
Minimum compression height100mm
Diameter of cover plate260mm
Pore sizeG1/2
Screw sizeM10
Center distance between screws232mm
Maximum outer diameter of bellows325mm
Required installation space350mm

Force F (kN)

Pressure Pbar345678Volume(l)
Height H (mm)3509.813.216.720.524.328.417.2
30012.316.520.825.329.934.715.3
25014.419.324.229.434.539.912.9
20016.422.027.733.539.445.610.0
15018.825.131.437.844.250.77.2

Norgren industrial air spring is a pneumatic component for various applications, which is mainly used to provide smooth support and shock absorption effects. This air spring is usually used for industrial equipment, cars and other occasions that need to be shock -absorbing and supported.

Main Features:
Safety: Air spring design is used for safety operations, which can effectively absorb impact and vibration.
Multifunction: Suitable for a variety of application scenarios, including car interior and industrial machinery.
Duravity: It usually has a long service life and can work under extreme conditions.

Pictures of Details

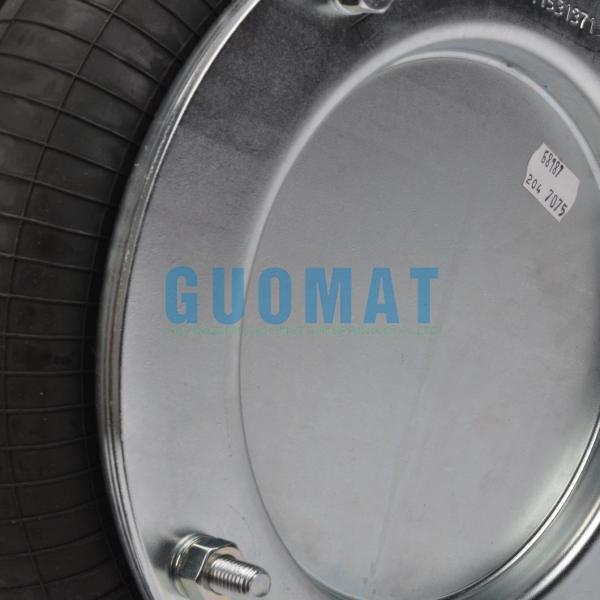

Norgren M/31123 Air Bellows G1/2 Triple Convoluted Rubber Air SpringNorgren M/31123 Air Bellows G1/2 Triple Convoluted Rubber Air Spring
