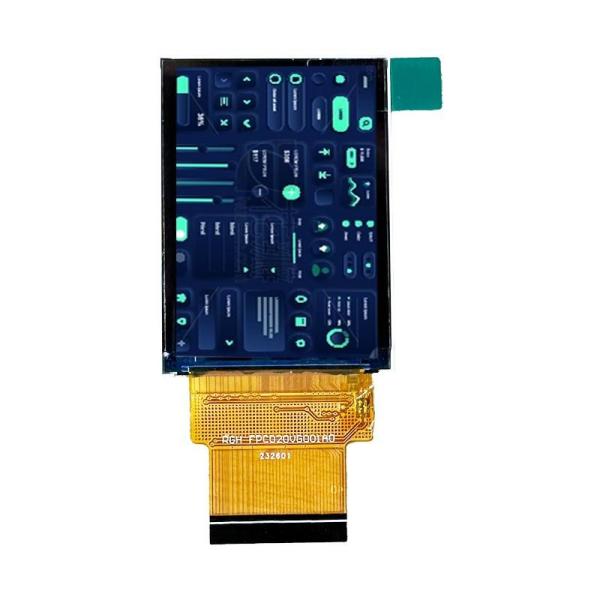

| Categories | IPS TFT LCD Display |
|---|---|
| Brand Name: | RGH |
| Model Number: | RT20VG001A |
| Place of Origin: | Shenzhern,China |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Certification: | ISO9001/ISO14001 |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Screen Size: | 2.0inch |
| Resolution: | 480 x 640 pixels |
| Brightness: | 700 cd/m² |
| Backlight Type: | LED |
| Interface: | RGB 16BIT |
| Display Type: | Thin Film Transistor Liquid Crystal Display |
| Viewing Angle: | ALL O'CLOCK |
| Dimensions: | 34.60*47.80*2.1 mm |
| Response Time: | 30ms |
| Touchscreen: | No |
| Contrast Ratio: | 1200:1 |
| Panel Type: | IPS |
| Active area: | 30.6 (H) *40.80(V) |
| Application: | Industrial Application |
| Driver ic: | ST7701S |
| Colors: | 262K |
| Operating temperature: | -20~70℃ |
| Viewing direction: | full viewing angle |





| NO. | Symbol | Level | Function |
| 1 | LEDA | LED power anode | |
| 2 | LEDK | LED power cathode | |
| 3 | GND | Ground | |
| 4 | VCC | Power setting | |
| 5-13 | GND | Ground | |
| 14 | VS | Vertical sync input | |
| 15 | HS | Horizontal sync input | |
| 16 | DCLK | Dot clock signal for RGB. | |
| 17 | DE | DE | |
| 18-22 | B0-B4 | Data bus. | |
| 23-28 | G0-G5 | Data bus. | |
| 29-33 | R0-R4 | Data bus. | |
| 34 | RESET | Reset signal. | |
| 35 | CS | Chip selection. | |
| 36 | SCL | Serial interface clock | |
| 37 | SDA | Serial data input/output bidirectional pin for SPI interface. | |
| 38 | IOVCC | Power setting | |
| 39 | GND | Ground | |
| 40 | I0VCC | Power setting |
![]() | ![]() |





FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will
contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display
manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
