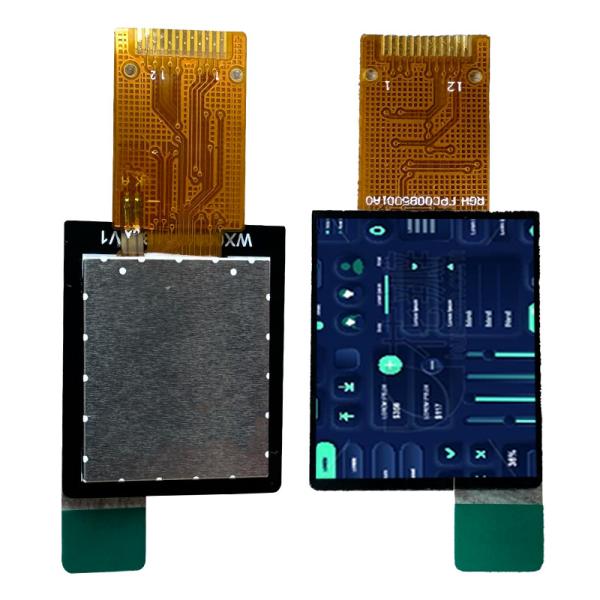

| Categories | TFT LCD Capactive Touchscreen |
|---|---|
| Brand Name: | RGH |
| Model Number: | RTP085001B |
| Place of Origin: | Shenzhern,China |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Certification: | ISO9001/ISO14001 |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Size: | 0.85 inches |
| Resolution: | 128*128 |
| Dimensions: | 21.30(H)*25.75(V)*2.49(T) |
| Interface: | SPI |
| Viewing Angle: | ALL O'OCLOCK |
| Brightness: | 450 cd/m2 |
| Backlight Type: | LED |
| Touch Screen: | YES |






| NO. | Symbo | Leve | Function |
| 1 | GND | Ground | |
| 2 | LEDK | LED power cathode | |
| 3 | LEDA | LED power anode | |
| 4 | VDD | Power setting | |
| 5 | GND | Ground | |
| 6 | GND | Ground | |
| 7 | D/C | command selecion pin in 4-line serial interface | |
| 8 | Cs | Chip selecion pin | |
| 9 | SCL | This pin is used lo beserial inlerfaceclook | |
| 10 | SDA | SPlinter faceinputloutput pin | |
| 11 | RESET | This signal wil reset the device and it must be applied to properly | |
| 12 | GND | Ground |





FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
