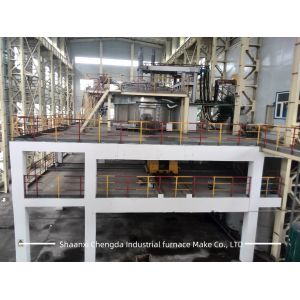

Silicon Manganese Hot Melt Slag Smelting Furnace Equipment with ISO 9001 Certification

• Procurement, production, smelting machinery/ferromanganese and silico-manganese smelting furnaces
•

• The equipment is used to receive the hot melt slag from the silicon manganese ore furnace, the temperature of the original slag is about 1200-1300 degrees Celsius, after heating, tempering, heat preservation, the temperature reaches 1400-1500 degrees Celsius continuous delivery to the centrifuge for mineral wool use. This equipment is suitable for the production line of slag wool with an annual output of 30,000 tons.
•

• Device operating environment conditions:
• 1. The altitude does not exceed 1500m.
• 2. The ambient temperature is within 50 ° C.
• 3. There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
• 4. No noticeable vibrations or bumps

Core Functions & Advantages

• High-Efficiency Smelting: Utilizes advanced thermal technology to fully react hot melt slag with reducing agents, ensuring high alloy yield.
• Energy-Saving Design: Optimizes heat utilization, reducing energy consumption compared to traditional furnaces while lowering emissions.
• Stable Performance: Features a robust structure and precise temperature control, guaranteeing consistent product quality and long-term operation reliability.

Display of internal structure of melting furnace:

The arc is not exposed from beginning to end, and the mixed charge is added to the furnace in small batch with the drop of the material surface, so that the material surface in the furnace is maintained at a certain height, and the shape of a flat cone is displayed around the electrode. When the reduced silica ferromangmanganese water in the furnace is stored to a certain extent, the furnace eye is opened with a burners or round steel, and the molten iron and slag are released to remove the residue in the alloy, and then the ingot is cast in the ingot mold. Electric furnaces are supplied under a prescribed power supply system. The average electric furnace is produced once at an interval of 2 hours, and four furnaces are produced in 8 hours per shift. Use the water quenching water slag, after the completion of iron production, the winch will pull the ladle to the casting room to calm for about 20 minutes, the crane will lift the ladle, cast the molten iron into the ingot mold. After slightly cooling, the alloy is pry up, lifted into the iron box by the crane, and then cooled into the warehouse.

Application Scope

  Shaanxi Chengda Industrial Furnace Manufacturing Co., Ltd. is a high-tech enterprise specialized in the research, design, and manufacturing of various industrial furnaces, including AC and DC steelmaking electric arc furnaces, ladle refining furnaces, ferroalloy ore thermal furnaces, ferroalloy refining furnaces, electric slag remelting furnaces, non-standard metallurgical equipment, heat treatment equipment, and various related environmental protection dust removal equipment. The company's product design and manufacturing capabilities have reached 100 tons for electric arc furnaces, 160 tons for ladle refining furnaces, and a capacity range of 3600KVA to 35000KVA for ore thermal furnaces. In accordance with national industrial policies, we have designed high and low voltage compensation systems, dust removal systems, ferroalloy DC furnaces, and new energy equipment suitable for the actual operation of the equipment. For inquiries, please contact Mr. Du at 13991381852 or Mr. Chen

13709182307.
