6I6583 6I-6583 Sun Gear For Excavator 315C 315D L 318C 318E L 319C Swing Gear Parts

6I6583 6I-6583 Sun Gear For Excavator 315C 315D L 318C 318E L 319C Swing Gear Parts

Specifiion

Parts No	6I6583 6I-6583
Part name	Sun gear
Excavator model	315C 315D L 318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
egory group	Excavator Swing Gear Parts
Place of origin	PRC
Payment term	T/T, Western Union, MoneyGram
Packing	As request or standard packing
Delivery time	Stock for urgent delivery
Means of transport	By sea/air, DHL FEDEX TNT UPS EMS

Applicable models

EXCAVATOR 315C 315D L 318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM

320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR

320E RR 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
UNDERCARRIAGE OEMS

More gear parts for C A T heavy equipment

1484715 GEAR-COUPLING

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN,...

7Y1431 GEAR-PLANETARY

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

7Y1430 GEAR-SUN

5I7674 GEAR

311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321B, 321C, 323D L, 323D LN

2056788 GEAR

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN...

1252951 GEAR

311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7686 GEAR AS

311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7558 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320...

1252950 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 3...

6I6585 GEAR-PLANETARY

315C, 315D L, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 3...

6I6583 GEAR-SUN

1484705 GEAR-RING

315C, 315D L, 318C, 318E L, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320E RR...

1655788 GEAR-PLANETARY

311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

1655787 GEAR-PLANETARY

311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

3530538 GEAR-SUN

311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR

3333049 GEAR-PLANETARY

311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L

1912608 GEAR-PLANETARY

311C, 311D LRR, 311F LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR

1912613 GEAR-RING

311C, 311D LRR, 311F LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR

1994629 GEAR-SUN

315C, 315D L, 316E L, 318D L, 318D2 L

1912663 GEAR-SUN

315C

2291080 GEAR & BEARING GP-SWING

315C

1655797 GEAR

311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

1653892 GEAR-RING

311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

1655793 GEAR-SUN

311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

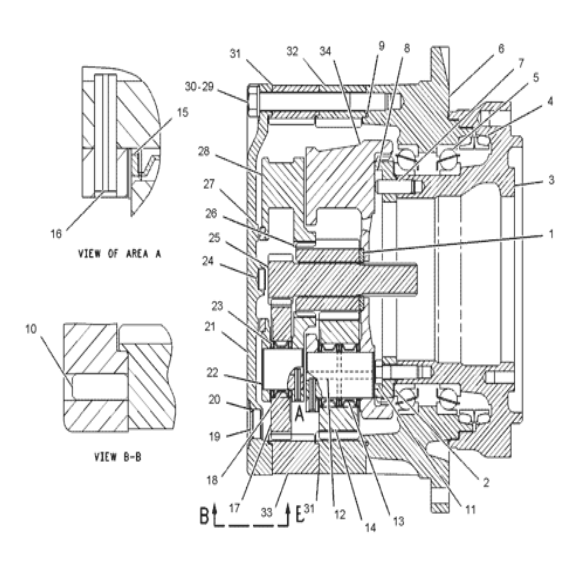

alog parts list

Pos.	Part No	Qty	Parts name	Comments
1	7Y-1434	[1]	SPACER (40X69.5X6-MM THK)
2	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
3	114-1485	[1]	HOUSING-MOTOR
4	114-1497	[1]	SEAL GP-DUO-CONE
5	096-6412	[2]	BALL BEARING
6	114-1486	[1]	HOUSING
7	114-1539	[4]	PIN-DOWEL
8	7Y-1436	[1]	GEAR-COUPLING
9	6D-0692	[1]	SEAL-O-RING
10	095-1270 M	[2]	SETSCREW-SOCKET (M12X1.75X30-MM)
11	6V-5686 M	[16]	BOLT (M16X2X50-MM)
12	7Y-0223	[3]	SHAFT-PLANETARY
13	094-1542	[6]	BEARING-ROLLER
14	7Y-1431	[3]	GEAR-PLANETARY (30-TEETH)
15	094-1528	[6]	WASHER (53X84X1-MM THK)
16	095-0891	[6]	PIN-SPRING
17	6I-6585	[3]	GEAR-PLANETARY (44-TEETH)
18	094-0616	[3]	BEARING AS-ROLLER
19	3E-2338	[2]	PLUG-PIPE
20	7M-8485	[2]	SEAL-O-RING
21	7Y-1426	[1]	COVER
22	7Y-0225	[3]	SHAFT-PLANETARY
23	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24	094-0580	[1]	PLATE (10-MM THK)
25	6I-6583	[1]	GEAR-SUN (13-TEETH)
26	7Y-1430	[1]	GEAR-SUN (17-TEETH)
27	7Y-1558	[1]	SPACER (90X119.6X7.5-MM THK)
28	7Y-1432	[1]	CARRIER
29	7X-2568 M	[16]	BOLT (M20X2.5X180-MM)
30	8T-4123	[16]	WASHER (3.62X5.75X0.375-MM THK)
31	1U-8846 B		SEALANT-GASKET
32	102-6456	[1]	GEAR-RING (79-TEETH)
33	102-6454	[1]	GEAR-RING (104-TEETH)
34	7Y-1433	[1]	CARRIER
	B		USE AS REQUIRED
	M		METRIC PART

Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Packing and Shipping

1. Packaging Details

Plastic Bag & Plastic Box , Customize , Or customer's Brand

2. Delivery Time

1-2 day after received the payment

3. Type of Shipping :

EMS , DHL , TNT , UPS , FeDex , By air & By sea ..

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Advantage

1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.

2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.

3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.

4. All of our products are of good quality, competitive price, comparing to other suppliers.

5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.

6. We have completed transport system to shipped the goods in fast way.

7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.

8. We have thousands of customers in different countries and regions around the world.
