| Categories | Titanium Tube |
|---|---|
| Brand Name: | LHTI |
| Model Number: | LH-01 |
| Certification: | ISO9001 |
| Place of Origin: | BaoJi Shaanxi China |
| MOQ: | If in stock, sample is available; If not in stock,100kgs of each size |
| Price: | USD $19.5-$28.5 / kg |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 10000 Kilogram/Kilograms per Month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Standard exporting packaging, plywood case outside |
| Surface Treatment: | Polished |
| Payment Term: | T/T,L/C etc |
| Product Type: | Polished Welded Titanium Round Tubes |
| Diameter: | 10mm |
| Tolerance: | h7 |
| Performance: | titanium heat-transferring coil |
| Hs Code: | 8108904090 |
| Length: | Customizable |
| Shape: | Round |
| Material: | Titanium |
| Material Grade: | Gr1,Gr2 |
| Classification: | Gr1 Gr2 Gr5 Gr7 Gr9 |
| Size: | Customizable |
| Third Party Testing: | Available |
| Payment: | T/T,L/C,ESCROW,PAYPAL |
| Company Info. |
| Baoji Lihua Nonferrous Metals Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

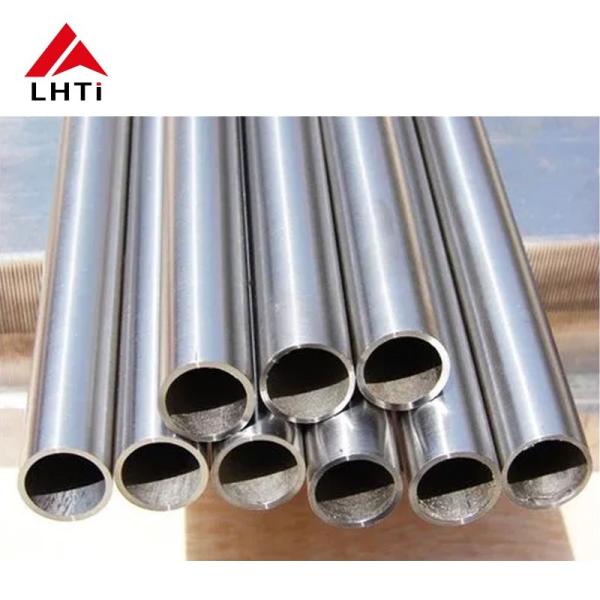

High Purity Gr2 Seamless Titanium Tube ASTM B338 / small diameter titanium tubing
Titanium Tubing, made from high-quality titanium, delivers outstanding strength, lightweight properties, and excellent resistance to corrosion and oxidation, along with a 20% elongation for both durability and flexibility. Suitable for diverse applications such as chemical processing, oil and gas production, aerospace engineering, and the automotive industry, it is available in both seamless and welded forms. Its exceptional strength-to-weight ratio is ideal for scenarios where weight reduction is crucial. Combining high strength, low weight, and superior resistance, Titanium Tubing is the optimal choice for demanding applications requiring reliability and performance.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
|
