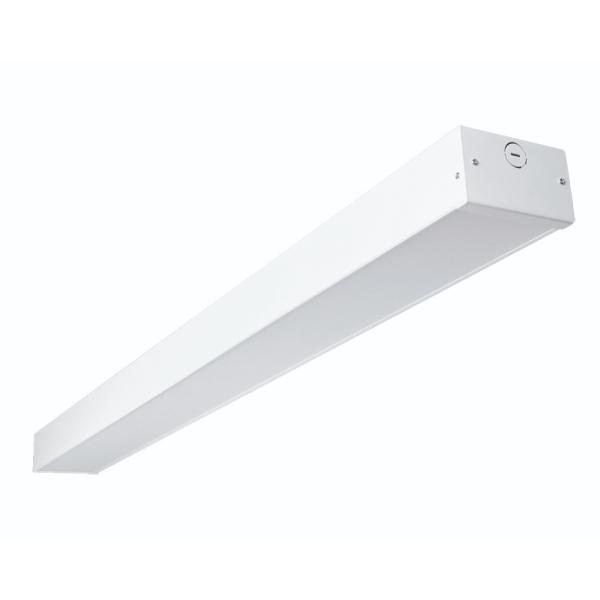

1. Total luminaire efficacy as high as 120 LPW (lumens per Watt). UGR<19 Available in different lumen up to 170LPW to suit the needs of customer.
2. Electrical : 50/60Hz,PF>0.9, THD<20%,Flicker free, Mains surge immunity:L-N 2KV,L-FG N-FG 4KV
3. 0-10V, 10-100%,5%. Class 1 rated output. Consult Factory for other available drivers.
4. Available in different Length and lumen to suit the needs of various applications. Optional color: Matte black, Silver, Customized
5. optional motion sensor and the emergency battery pack.
Code | Width | Length | Power | Lumens(lm) | CRI | Color temp. | Voltage | Driver | Options | Notes | |||||||
| S31-6011-36 | 107 | 608 | 36W | 47L | 4700 | 8 | 80CRI | 30 | 3000K | UNV | universal | DIM | 0-10V Dimming | Antimicrobial powder coat | Length will plus 30mm for Surface type | ||
| S31-9011-48 | 107 | 908 | 48W | 63L | 6300 | 9 | 90CRI | 35 | 3500K | 120 | 120V | SDIM | Step dimming | ||||
| S31-12011-68 | 107 | 1208 | 68W | 89L | 8900 | 40 | 4000K | 277 | 277V | DALI | DALI | Sensor | |||||
| 50 | 5000K | 347 | 347V | POE | Power over ethernet | Emergency | |||||||||||
| TW | Tunable White | TP | Tunable Power | ||||||||||||||
Packages
Code | Pcs | Width(mm) | Length(mm) | Height(mm) | Weight(KG) | Volume(CBM) | NOTES | ||||||||
| S31-6011-36 | 10 | 140 | 650 | 550 | 15 | 0.0501 | |||||||||
| S31-9011-48 | 6 | 140 | 950 | 340 | 12 | 0.0452 | |||||||||
| S31-12011-68 | 4 | 140 | 1250 | 230 | 11.5 | 0.0403 | |||||||||
Foototes: Accessories (order separately) 1. V-Hook 2. Wirerope
Options: 1. Motion Sensor 2. The emergency battery pack
Housing:
Die-formed, cold rolled steel.Metal housing provides excellent thermal transfer to extend component life.
Acrylic(PMMA) diffuser provides even illumination with comfortable appeal.
Electrical:
Fixtures are factory pre-wired and tested for all circuits. LED driver is accessible from above.
Warranty:
TM-21 predicted L70 lumen maintenance up to 50,000 hours. 5 years manufacturer's limited warranty.
Finish:
Highly reflective, matte powder coat white paint for high efficiency. Matte texture to diffuse glare and lamp image on the surface within the optical chamber exterior. Custom finishes are also available.
General Notes: All options are factory installed. All accessories are field installed.
|
