Product Details
Company Profile

Product Overview

FRP Structural Composite Sandwich Sandwich Panels

The panel has superior insulating performance with an approximate thermal R-value of 15. Typical panels are a solid core 3-ply panel that is ultra-high strength, low weight, self-supporting. The plys are Pressing bonded with a 1,544 pound per square inch industrial adhesive with no thermal conduction paths. This panels hold up to the mechanical stresses and dynamic forces. • FRP (Option: Aluminum) over closed-cell foam construction • Standard panel thickness 70 mm,for side wall 80mm for floor with cross beam and 90mm for Roof. • Solid core 3-ply structural composite for side wall and Cross beam embedded in the floor. • High gloss interior/High Impact exterior for different Function works • Quick Installation : 3 people x 2 hours /unit • High strength composite body extrusions (FRP and Aluminum)

FEATURES AT A GLANCE

1. Light net Weight : 40% lighter than Metal

2. Better insulation: K value < 0.295 W/㎡ ℃

3. High in strength :

* ANTI-PRESSURE:>180MPa

* ANTI-CURVE: >220MPa

CUT STRENGTH: 24.6MPa

4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

5. Easy assembly and repair at site ,3 work 1.5 hours for one box.

Side elevation

Interior elevation

Amount Truck elevation

Main Parameters

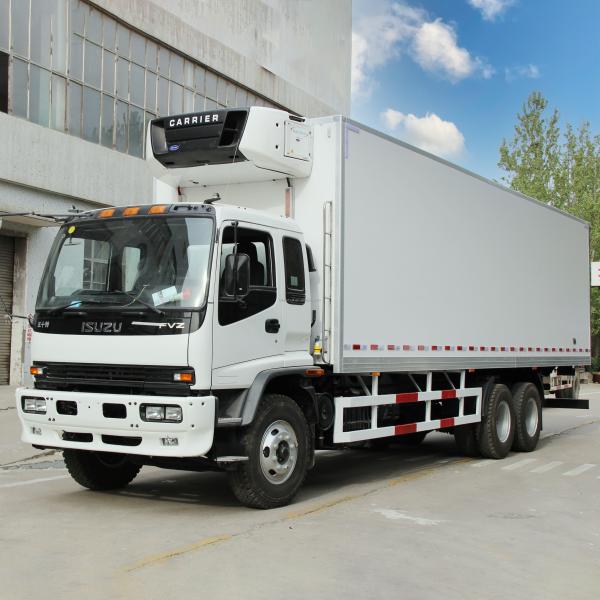

Refrigeration Freight Transport Truck Body
Refrigeration Truck Body with FRP Insulated Sandwich Panels for Refrigerted Trucks and Draw Bar Cold Rooms
1. MODEL:				GET.6KDX.XLC
a refrigerator truck body or chiller is a box designed with XPS /PU insulation foams to carry perishable freight at low temperatures. Refrigerator truckbody can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. These Truck Box is mainly designed for the cargos 's transportation asked the temperature controls , like frozen cargos, fresh foods & fruits , and other temperature sensitive machines . Our Refrigerated truck box can get the best insualtion , with Refrigeration units can give an temperature range of -40 ~ +15 ℃ for almost general cargos transporation.
2. GENERAL PARAMETERS
K .Value for the Composite Box			0.295 W/㎡ ℃
Max. Overall Length	48 ft	14,750 mm	0~14750mm can choose
Max. Overall Width	10 ft	3,200 mm	0~ 3200 mm can choose
Max. Overall Height	10 ft	3,200 mm	0~3200 mm can choose
Max. Floor Thinckness	4 .13 inch	105 mm	45-105mm can choose
Side Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Front Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Rear Door Panel	3 .31 inch	84 mm	45-105mm can choose
Roof Wall	4 .13 inch	105 mm	45-105mm can choose
3. Box Structure
super Structure	self-supporting body, without cross bars , inside and outside skin made of glass fibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties. Without metallic carrier elements = without direct heat conductivity The body are water tight the plastic elements are flam resistant

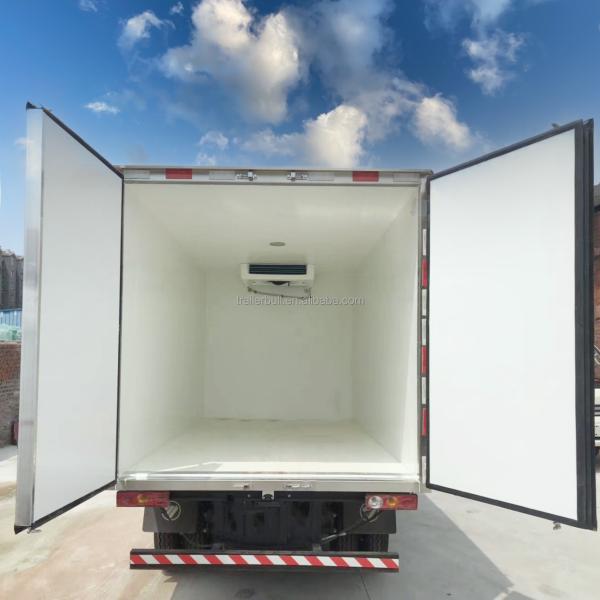

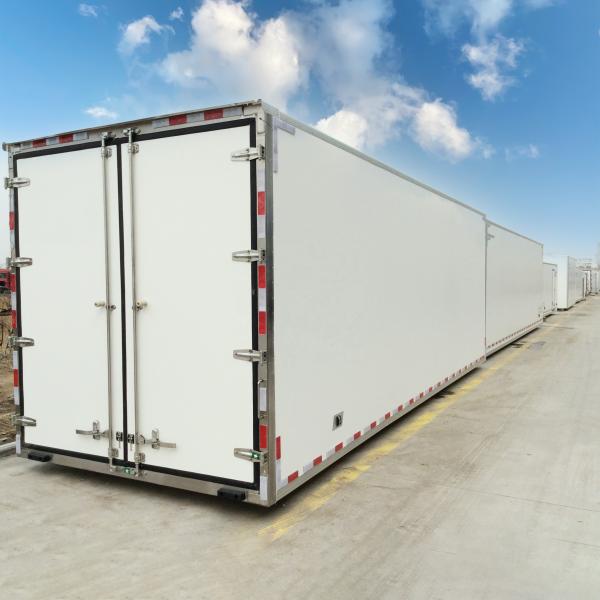

Rear Wall	Two -wing Rear door , approx ,80 mm thick with 5-fold special sealing ,rigid frame joints. Each Door Wing with 1 external power-brace lock with one -hand operation Door Wings inclinable to the sidewalls with hold-open device (loose)
Portal	stainless Steel
Surface	The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval

Rear Doors

Single Panel Narrow Opening

2-Panel Narrow Opening

2 Panel Full Opening

3 Panel Full Opening

4 Panel Full Opening

Overhead Rear Door

Side & Special Door Options

Single Opening

Double Opening

Single roll-Up door

Profiles Options

Tell us what you need: Wh it is wing doors with a 270° opening angle and double espagnolette locks or roller shutters for rapid loading in tight space

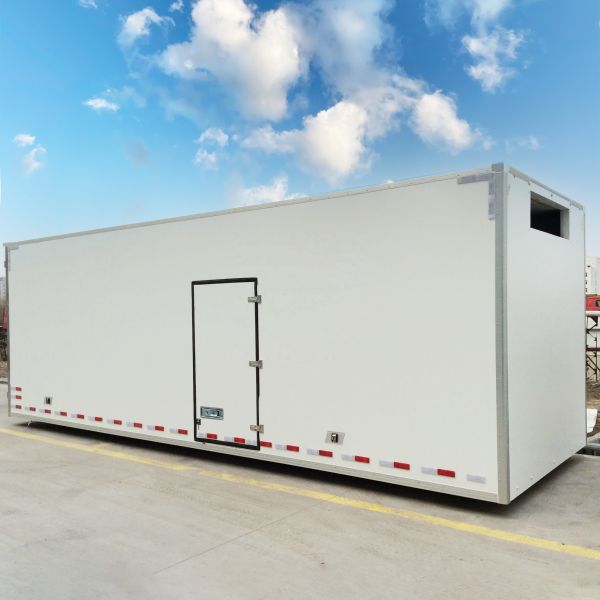

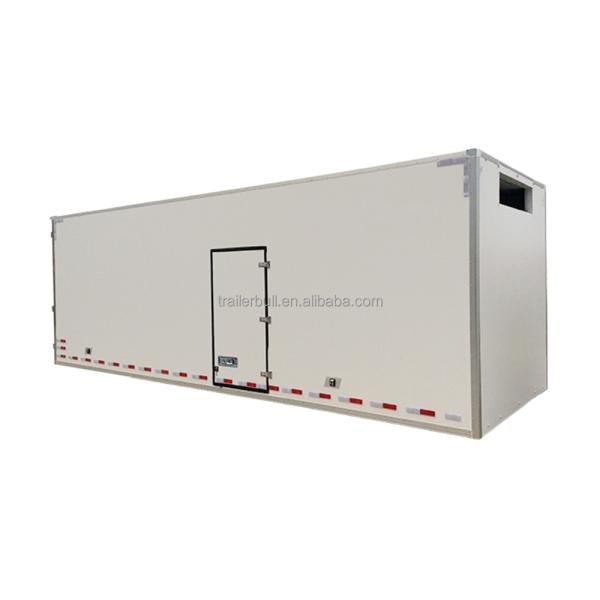

Customized Size Side door for easy discharging. Side Wall Embedded to keep the Strengthen

Aluminum Checked Mat for Anti-Skid T Rail For Air-Cycle and Easy Water Washing.

The optional strip curtain provides the rear of the body with an additional means of closure and prevents the immediate loss of cool air when the rear door is open.

Smart & customized cargo Loading control system

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy

Aluminium alloy or steel platform hydraulic tail lift 12/24V Type 1T ,1.5T,2T Model are available

Multi-temperature purpose longitudinally movable, insulated transverse partition wall

Refrigeration Units

Direct-Drive Units for Trucks and Vans A complete line of refrigeration units for a wide variety of vehicle chassis and applications.

A complete line of self-powered diesel truck units that deliver lower cost of ownership through lower maintenance costs, improved fuel economy and unmatched reliability.

A complete line of refrigeration units for a wide variety of big Trailers and semi trailer for long distance Fresh cargo delivery.

A complete line of single-temperature units for long haul and delivery applications.

Precedent® multi-temp takes the premier trailer platform in the industry and optimizes it for food distribution.

Dependable heat for trailer and intermodal applications.

KV Series

RV Series

SV series

T Series

SLXi Series

Details @ www.Thermoking.com

Supra Series

Vector Series

VIENTI series

X Series

Details @ www.Carrier.com

N series

U series

DS series

PF series

TC series

TL series

Details @ www.Denso.com

BOX INSTALLATION PROCESS

Distinguish the different panels for different walls, Floor,Roof, Side walls (2 sets), Front wall, Rear Wall, and pre-install for their position.

Install the panels with glues one by one, from floor to front wall, then the side wall , then the roof , at last put the rear wall with tail door.

After all the walls been installed with glue, clamp the box with F-Shape Fixture to let the Composite glue Hard , and then clean the surface and the joint edges, then a box finished.

Production Workshop

FAQ

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers’ request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

It is very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the FRP-Pie Panel Kits sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies ckd we provide have included all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, you can assemble them by yourself without purchasing any material. Generally, 3-4 workers can assemble 5-6 bodies everyday.
Moreover, at the beginning we will assign our engineers to supply you some technical guidance.

CKD Panel Kits

1. Prepare the chassis
2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts
3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least
8 h at +20 ℃ .
4. Install the required options
5. Finishing

1.Prepare the chassis
2. Mount the BOX tog with subframes on the chassis
3. Install the required options
4. Finishing

It depends how will use it. Normally, the life is about 15~20 years

Product Tags:


*From:	Your email address is incorrect!
*To:	GET INDUSTRY & VEHICLES CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Refrigerated Truck Box
Place of Origin:	China
Brand Name:	GET COLD CHAIN \| GET VEHICLES
Price:	$5,500.00 - $9,800.00/units
Product name:	Refrigeration truck Box Kits
K.VALUE:	0.295
Fire-Retardant Grade:	"B" , According to EN 13501-01
Temperature Range:	-20~+20 oC
Side Wall Material:	CFRT/FRP +PU/XPS+FRP
Floor:	Aluminum Air Duct (Interior)+PUR(injection Foaming 45kg/cbm)+FRP
Portal:	SS304 with 2-wings opening Hinge doors / Roll Up door
Truck body Application:	Refrigerated Trucks,Mobile Cold Room,
Quick Installation:	3 people 1.5 hour / unit
Suitable Truck:	ISUZU,FOTON,FORD,BENZ,IVOCO,ETC
