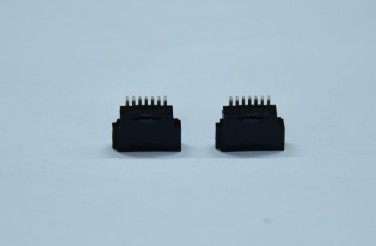

SATA 7p/F Solder Type Wire to Board Connector

I. Basic overview
SATA 7P/F Solder Type Wire to Board Connector, a 7-pin F-type design.
Application: Widely used in solid-state hard disk, mobile hard disk, computer motherboard, communication equipment and other electronic products, to achieve high-speed and stable data transmission.

Second, product characteristics
1. High-speed transmission:
Supports SATA interfaces for high-speed data transmission, providing stable data transmission rates to meet the requirements of different application scenarios.
With the continuous development of SATA standards, such as SATA 2.0, SATA 3.0, etc., the connector can support higher data transfer rates.
2. Hot Swap support:
Allows storage devices to be connected or disconnected while the system is running, without shutting down the system, improving the flexibility and efficiency of data transfer.
3. Compact design:
Compared to traditional parallel ATA (PATA) connectors, SATA connectors are smaller and have fewer pins, which helps to save space and make the internal wiring of the computer more compact and flexible.
4. Strong compatibility:
It has good compatibility and can connect SATA devices of different manufacturers and models, which is convenient for users to use and maintain.
5. Stable and reliable:
Using differential signal transmission technology, with strong anti-interference ability, to provide stable and reliable data transmission.

Iii. Technical specifications
Pin count: 7 pins
Interface type: F
Connection method: Weld wire to board
Electrical specifications:
Voltage rating: 250V
Current rating: Minimum 1.5A per needle
Contact resistance: maximum 30mΩ
Insulation resistance: minimum 100MΩ
Withstand voltage: 500V AC
Physical specifications:
Plug type: In line
Insertion force: 45N Max
Pullout force: Minimum 10N
Durability: 500 insertion and removal cycles
Housing material: thermoplastic, according to UL 94V-0 fire rating

4. Application field
Mainly used in industrial control motherboard, embedded motherboard, tax control machine, computer motherboard and communication products and other fields, to meet the data transmission needs in a variety of complex environments.

5. Precautions
During use, ensure that the connector is correctly connected to the device to avoid signal transmission problems caused by poor contact.
Pay attention to the use of the connector environment, avoid the use of humid, high temperature or strong electromagnetic interference environment, to ensure the stability and reliability of data transmission.

to sum up, SATA 7P/F Solder Type Wire to Board Connector is a product with high-speed transmission, hot-swap support, miniaturized design, strong compatibility and high data transmission stability. It is widely used in various electronic products. It provides a reliable solution for data transmission.
