CA1981076 198-1076 1981076 Kit Plunger Fits C-A-T 216B 216B3 226B 226B3 232B 236B 236B3 242B 242B3 247B 247B3 252B 252B3

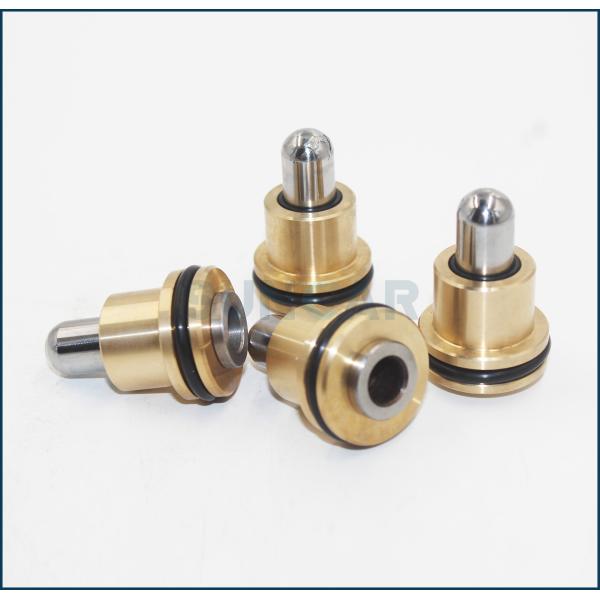

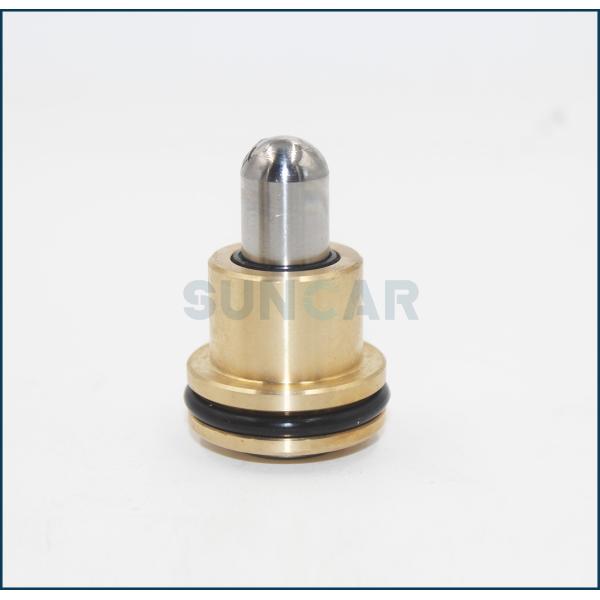

CA1981076 198-1076 1981076 Kit Plunger

Description:A sleeve valve takes the form of one or more machined sleeves. It fits between the piston and the cylinder wall in the cylinder of an internal combustion engine, where it rotates and/or slides. Ports (holes) in the side of the sleeves come into alignment with the cylinder's inlet and exhaust ports at the appropriate stages in the engine's cycle.

Product name	CA1981076 198-1076 1981076 Kit Plunger
Brand name	SUNCAR
Warranty	6 months from the day of shippment
OEM number	CA1981076 198-1076 1981076
Loading port	Huangpu port,China
Availability	Have enough stock for selling
Terms of payments	Western Union, T/T, Bank Transfer, Paypal
Original place	Guangdong provice,China
AppliC-A-Tion	excavator
Delivery time	3-5 days after payment received(public holiday excluded)
Condition	100% New
Compatible equipment	C-A-T
Quality	High guarantee

Compatible equipment models:

COMPACT TRACK LOADER	259B3
MULTI TERRAIN LOADER	247B 247B3 257B 257B3 267B
SKID STEER LOADER	216B 216B3 226B 226B3 232B 236B 236B3 242B 242B3 252B 252B3 268B
TRACK LOADER	933C 939C
TRACK-TYPE TRACTOR	D3C III D4C III D5C III

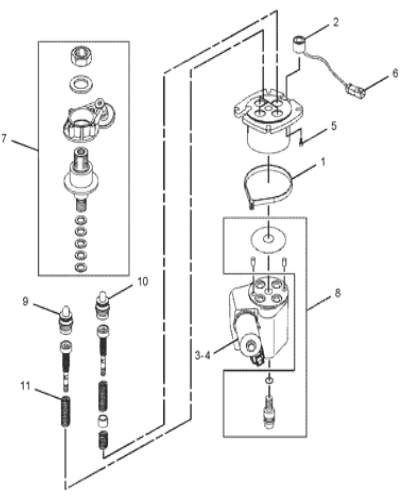

Parts for your 216B3 SKID STEER LOADER:

Pos.	Part No	Qty	Parts name
1	7K-1181	[1]	STRAP-CABLE
2	172-0970	[1]	COIL AS (12-VDC)
	8T-8729	[2]	PIN-CONNECTOR (16-GA TO 18-GA)
	102-8802	[1]	KIT-RECEPTACLE (2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
3	195-9700 Y	[1]	VALVE GP-SOLENOID (12-VOLT)(WORK TOOL)
4	8T-1158 M	[1]	BOLT-SOCKET HEAD (M8X1.25X20-MM)
5	8T-9405 M	[1]	BOLT-SOCKET HEAD (M4X0.7X16-MM)
6	102-8802	[1]	KIT-RECEPTACLE (2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
7	313-6251	[1]	KIT-JOINT
			(INCLUDES SHIMS, NUT, WASHER, DETENT ARM & CARDAN)
8	9T-2837	[1]	KIT-SEAL (VALVE)(PILOT VALVE)
			(INCLUDES PINS, O-RINGS & BOLT)
9	198-1076	[3]	KIT-PLUNGER (PILOT VALVE)
			(INCLUDES PLUNGERS, SNAP RINGS, CAPS & WASHERS)
10	203-1100	[1]	KIT-PLUNGER (TILT BACK)
			(INCLUDES PLUNGERS, SNAP RINGS & RETAINERS)
11	160-6778	[1]	KIT-PILOT VALVE (SPRING)
			(INCLUDES SPRINGS)
			PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

299-9119: VALVE GP-PILOT
