| Brand Name: | YUHONG |
| Model Number: | E05C, ASME SA179 Carbon Steel Seamless Tube with ASME SA266 Gr.2N Tubesheet |
| Certification: | ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS |
| Place of Origin: | China,Korea |
| MOQ: | 1Set |
| Price: | 2000 ~ 10M usd |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50SETS/MONTHS |
| Delivery Time: | 45---150 DAYS |
| Packaging Details: | Pallet |
| Certificate: | ASME U STAMP |
| Tube: | ASME SA179 Carbon Steel Seamless Tube |
| Tubesheet: | ASME SA266 GR.2 N |
| Spacer: | ASME SA179 Carbon Steel Seamless Tube |
| BAFFLES: | ASME SA56 GR.70 |
| IMPINGEMENT PLATE: | ASME SA56 GR.70 |
| NOMINAL CAPACIT: | SHELL SIDE (---) / TUBE SIDE (2127 LITERS) |
| Weight: | 7700kgs |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

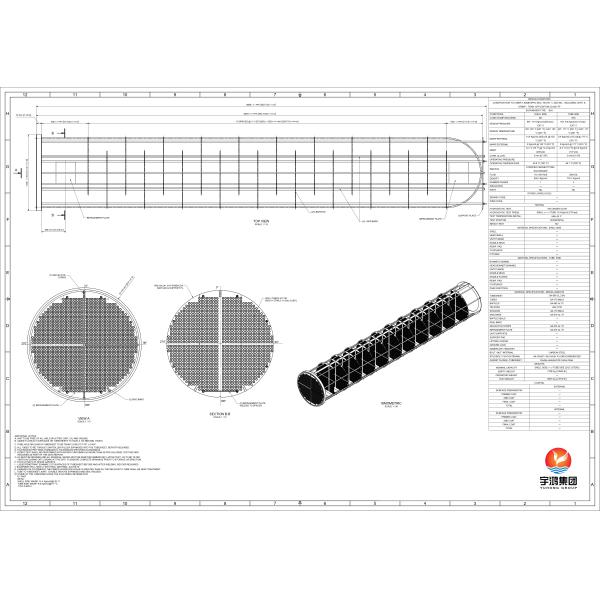

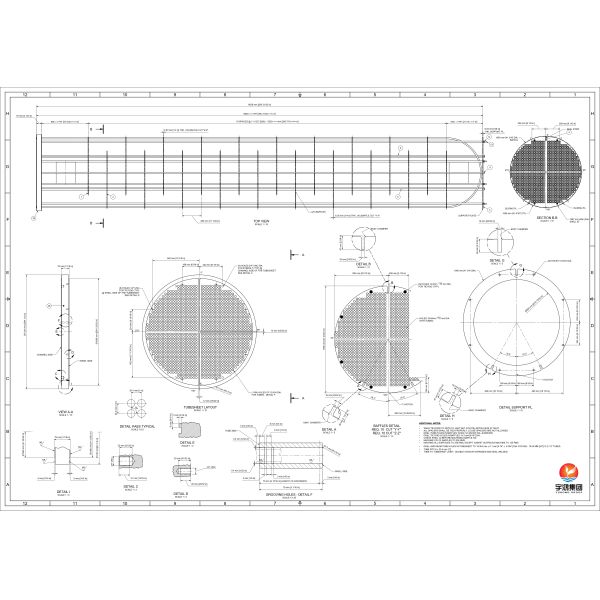

Tube Bundle, ASME U STAMP, D-E05C, ASME SA179 Carbon Steel Seamless
Tube with ASME SA266 Gr.2N Tubesheet
Yuhong Holding Group deal with tube bundle, heat exchanger, Air
cooler, Cooling Tower, Pressure Vessel, Tank, boiler, Per-Heater,
Furnace more than 35 years , till now export more than 85
countries, the products material contain: Stainless Stee, Duplex
Steel , Super Duplex Steel , Nickel Base Alloy Steel , Titanium ,
Copper & Copper Alloy, Carbon Steel , Chromium Molybdenum, ...

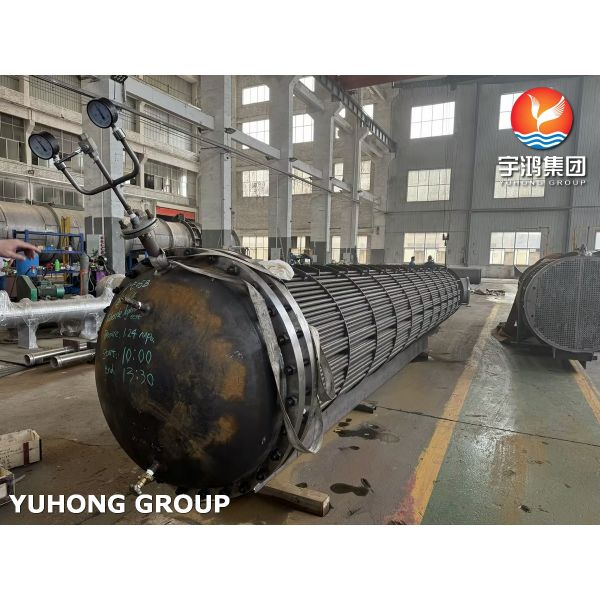

The Tube bundle finished assembling , we will arrange tube side
pressure test according to design pressure, and witness by buyer/
TPT/ASME INSPECTOR (A.I.).
All of our equipments can accept ASME inspection , and final aslo can support ASME U STAMP.

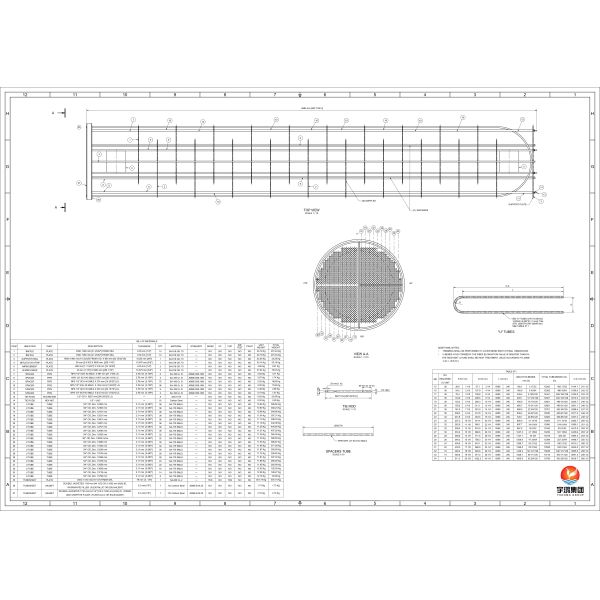

| ITEM | DESPRITION | Standard And Grade | SIZES (MM) | QTY | UNIT | ||||
| 1 | SMLS TUBE U TYPE | ASME SA179 | O.D.19.05 X 2.11(Min.) X L | 582 | PCS | ||||
| 2 | TUBESHEET | SA-266 CL.2 | DISC 1130 mm [44 1/2"] FINISH DIA. | 1 | PCS | ||||
| 3 | TUBESHEET | / | / | / | PCS | ||||
| 4 | TIE ROD & 2 NUTS | AISI 1018 | Ø12.7 (M12)X 6627MM | 10 | SETS | ||||
| 5 | SPACER | SA-106 Gr. B | PIPE NPS 1/2" SCH 40 SMLS | 128 | PCS | ||||
| 6 | BAFFLE | SA-516 Gr. 70 | |||||||
| 7 | IMPINGEMENT PLATE | SA-516 Gr. 70 | |||||||
| 8 | DEFLECTOR STRIPS | SA-516 Gr. 70 | |||||||
| 9 | SKID BARS | SA-516 Gr. 70 | |||||||




|
