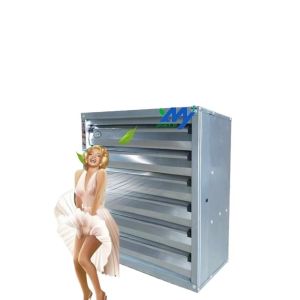

Source Factory 50 Inch Pig Pen Using Poultry Exhaust Fan Poultry Fan Poultry Farm Ventilation Fans for Sale

Product Description

50inch 1380mm industrial workshop exhaust fan poultry farm air cooling fans greenhouse wall mounted air ventilation hoods

Adopt CAD/CAM optimization design and manufacture, select panels and accessories, strict quality control, high quality testing requirements make the fan produced by Big Herdsman has the following characteristics: high total pressure, large air volume, low noise, low energy consumption, smooth operation, long life and so on.

Product Name	Exhaust Fan
Support Customization	OEM, ODM, OBM
Current Type	AC
Installation	Wall Fan
Blade Material	Stainless Steel
Voltage	380V, 220V, 415V, 230V or as your request
Warranty Period	2 Years
After-sales Service System	Online Support

Model	Blades Diameter (mm)	Dimension(mm)	Blades Speed(rpm)	Motor Speed(rpm)	Air flow (m³/hr)	Input power (KW)
XMY800	710(28inch)	800*800	660	1400	18000	0.37
XMY900	750(30inch)	900*900	630	1400	22000	0.55
XMY1000	900(36inch)	1000*1000	610	1400	25000	0.75
XMY1100	1000(40inch)	1100*1100	600	1400	32500	0.75
XMY1220	1100(44inch)	1220*1220	460	1400	38000	0.75
XMY1380	1270(50inch)	1380*1380	439	1400	44000	1.1
XMY1530	1400(56inch)	1530*1530	325	1400	55800	1.5

Main Features：

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally.
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Frame 275g Thicken galvanized sheet

We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.

Motor

Motor Protection Grade: IP55
Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

Belt pulley

Fan belt pulley made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability.

Fan shutter

High light hot galvanized sheet with zinc thickness of 275g/m2, automatic opening and closing, to wind, rain, dust and other functions, beautiful and generous.

Centrifugal System

centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume.When close,the sealing can effciently block light and wind into the poultry farm house. As the first one adopt high quality nylon to ensure
the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, reduce friction

Belt

Belts are Japanese Mitsubishi brand and Sanlux brand for option. Belt type: A and B. wear-resistant and longe service life.Long service life and no repair Modified B type belt,so that service life increase 3times than Type A.

Fan blade

The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable

Fan safe net

The fan protective mesh cover is made of hot-dip galvanized wire and electrostatic plastic spraying. Not easy to rust, beautiful and durable

Bearing

Imported double-row bearing with special waterproof design.

Advantage: High strength, low noise, free maintenance and long service life.

XINGMUYUAN Exhaust fan are widely used in Agriculture and industry ventilation and cooling.

It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc..

Company Profile

Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co.,Ltd. is a professional and comprehensive company engaged in the R&D, production and sales of temperature control equipment. we devotes ourselves to the scientific and technological development of ventilation and cooling equipment, heating equipment , workshop ventilation and cooling,greenhouse ventilation and cooling,animal husbandry machinery. Five series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, poultry and greenhouse exhaust fan, circulation fan, roof exhaust fan, FRP fan and so on, which can be widely used in agriculture, animal husbandry, plant, textile, mining,greenhouse and other industries. We strive to create products with good performance, good in quality,complete in variety and excellent price.

Our overseas customers are mainly concentrated in Southeast Asia, Middle East,West Asia, South Asia and other regions and established good cooperative relations and widely recognized and trusted by users. We do OEM or ODM service,no matter customize pattern, logo, package,all welcome. We have a professional international trading team and complete testing equipment and strong technical advantage.All of our products have passed strict quality control and been issued certification of CE, ISO. We welcome partners both at home and abroad contact and visit us.

Our Production Lines：

Supporting over 200 employees, our 20,000 square meter factory is top-notch, XINGMUYUAN Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
Steel coil sliding and cutting line, steel pipe cutting line. Aluminum Die Cast Tooling & Casting; Plastic Molding & Injection workshop; Metal Stamping & Laser Cutting; Motor Copper Coil Winding Line;Motor Assembly Workshop;Exhaust Fan Assembly Workshop;Cooling pad Assembly Workshop.

Why Choose Us

Long Standing History

15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.

Well Equipped.

Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.

Fully Customizable

Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.

Most Complete Fan Sizes

15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM

Fast Delivery

The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.

Our Team

XINGMUYUAN has 20+ years of professional design and production experience, more than 300 efficient

R & D and production team.

Certifications

The products of our company have been granted certificates such and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”XINGMUYUAN”.our Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate".

Exhibition

XINGMUYUAN Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers

Package And Shipping

Our products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc. Global service, Annual sales over $ 30 million.

FAQ

Q1. Are you a factory or trading company?

A1:We are a professional and comprehensive poultry farm equipment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed.

Q2. What payment methods do you accept?

A2:We accept T/T, Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.

Q3:What about the delivery time?

A3:Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.

Q4:Do you provide free sample?

A4:Yes, we can buy a sample to check our quality and need to take the express fee. The freight cost will be very high,but If you are satisfied with our samples and place an order again, we will deduct the expenses you paid for this sample.

Q5:May I visit your factory?

A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.

Q6:Can you guarantee your quality?

A6:Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we put a high value on our reputation.

Q7:How do you ensure my right if I’m going to place the order?

A7:Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

Q8:Can you open our own brand?

A8:Yes, we can offer OEM and ODM service and put your logo for the produce. We would like to custom your products as you need. We always insist on customer's benefit first. We don't show any of customer's info on website. Welcome to contact us！
