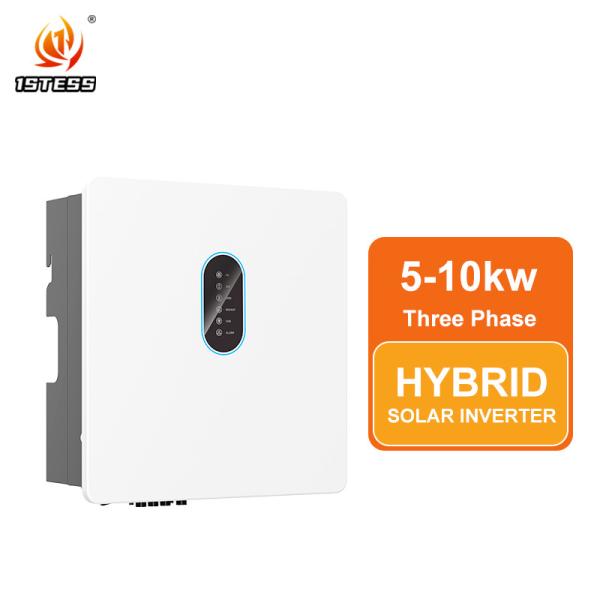

Product Features:

1.Maximum efficiency of 97.8% and battery efficiency of 97.0%

2.Advanced parallel function

3.Maximum battery charge/discharge current of 50A

4.Multiple built-in protections, with optional AFCl

5.Maximum battery charge/discharge current of 50A

6.Large MPPT current, compatible with high-power solar panels

Technical Parameters:

Core Advantages Summary:

High - Efficiency Power Conversion Supported by:

Maximum PV - to - AC efficiency up to 97.8% (e.g., TP10KH), excellent European efficiency (e.g., 97.3% for TP5KH), and top BAT - to - AC efficiency of 97.0%. Value: Significantly reduces energy loss and improves energy utilization across power generation, storage, and consumption stages.

Flexible PV Input Adaptation Supported by:

MPPT operating voltage range of 160V–950VDC, max input current per MPPT of 20A/30A (model - dependent); supports 1–2 MPPT groups with 1–2 PV strings per MPPT. Value: Flexibly matches voltage characteristics and layouts of diverse PV arrays to maximize solar energy capture.

Wide Energy Storage Battery Compatibility Supported by:

Compatible with both Lithium - ion/Lead - acid batteries, with a battery voltage range of 120V–600VDC (nominal 250V–600VDC) and max charge/discharge current up to 15,000W/11,300W (e.g., TP10KH). Value: Compatible with mainstream energy storage solutions, meeting requirements for residential, commercial, and industrial scenarios.

Stable Grid Connection & Backup Power Supported by:

• Grid - connected mode: Rated AC output power 5kW–10kW, apparent power 5.5kVA–11kVA; supports 380V/400V/415V grids (voltage adjustable to 260V–520V), frequency range 45Hz–65Hz (adjustable), power factor >0.99, THDi <5%.
• Backup mode: Rated output power 5kW–10kW, mains transfer time <10ms (typical), peak apparent power up to 15kVA (10s duration). Value: Ensures grid interaction stability and continuous load power supply via UPS functionality.

High - Reliability Protection Design Supported by:

IP65 ingress protection (dust - and water - proof); integrated protections (anti - islanding, AC/DC overcurrent/overvoltage/short - circuit, DC reverse protection); compliance with Class I safety standards. Value: Withstands harsh environments and fully safeguards equipment and personnel.

Harsh Environment Adaptability Supported by:

Maximum operating altitude 4000m (derated when altitude >2000m), operating temperature range - 25℃–60℃ (derated when temperature >45℃), relative humidity 0–100%; natural cooling design with wall - mountable installation (weight 32kg). Value: Adapts to complex scenarios (plateau, severe cold, high temperature, humidity) and reduces deployment difficulty with lightweight design.

Intelligent Monitoring & O&M Supported by:

Optional LED/LCD display and mobile App; supports multiple communication interfaces (RS485/CAN for BMS, DRM, optional WiFi/LAN). Value: Enables local and remote monitoring, simplifying operation and maintenance processes.

Authoritative Certification & Warranty Supported by:

Compliance with international standards (IEC/EN 62109 - 1&2, IEC/EN 61000) and certifications (VDE 4105, EN 50549 - 1); optional 5 - year/10 - year warranty. Value: Internationally recognized technical reliability with extended after - sales support.
