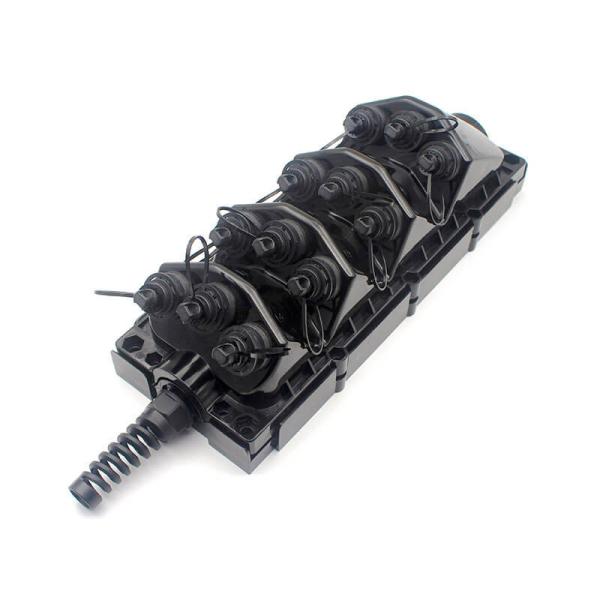

IP68 Waterproof 12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

12 Ports MST Multiport Service Terminal Enclosure With Drop Cable

The Multiport Service Terminal (MST) is an environmentally-sealed,Outside Plant (OSP) fiber optic terminal that provides a point for connecting subscriber drop cables to the network. Designed for Fiber To The Premises (FTTP) applications,the MST consists of a two-piece plastic housing equipped with multiple optical ports.

No.	Items		Unit	Specification
				G.657A1
1	Mode Field Diameter	1310nm	um	8.4-9.2
		1550nm	um	9.3-10.3
2	Cladding Diameter		um	125±0.7
3	Cladding Non-Circularity		%	≤ 0.7
4	Core-Cladding Concentricity Error		um	≤ 0.5
5	Coating Diameter		um	240±0.5
6	Coating Non-Circularity		%	≤ 6.0
7	Cladding-Coating Concentricity Error		um	≤ 12.0
8	Cable Cutoff Wavelength		nm	λ∞≤ 1260
9	Attenuation(max.)	1310nm	dB/km	≤ 0.35
		1550nm	dB/km	≤ 0.21
		1625nm	dB/km	≤ 0.23
10	Macro-Bending Loss	10tumx15mm radius @1550nm	dB	≤ 0.25
		10tumx15mm radius @1625nm	dB	≤ 0.10
		1tumx10mm radius @1550nm	dB	≤ 0.75
		1tumx10mm radius @1625nm	dB	≤ 1.5

1.2 Cable Parameters:

Items		Specifications
Tone Wire	AWG	24
	Dimension	0.61
	Material	Copper
Fiber Count		2-12
Colored Coating Fiber	Dimension	250±15um
	Color	Standard Color
Buffer Tube	Dimension	2.0 ±0.1mm
	Material	PBT and Gel
	Color	White
Strength Member	Dimension	2.0 ±0.2mm
	Material	FRP
Outer Jacket	Diameter	3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
	Material	PE
	Color	Black

1.3 Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	300
Tension(Short Term)	N	600
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius (Dynamic)	mm	60
Min. Bend Radius (Static)	mm	60

Features:

2.1 Seamlessly integrates with Corning, Huawei, ZTE, and other major waterproof adapter brands, providing flexibility for various network configurations.

2.2 Supports plug-and-play FastConnect drop cables for quick, no-splicing deployment, making setup easier and faster for FTTH, FTTA, and other outdoor installations.

2.3 Flexible choice of ports: 2, 4, 6, 8 terminals are available.

2.4 Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.

2.5 Dielectric, toneable, or armored input stub cables

2.6 Pole, pedestal, handhole, or strand mounting options

2.7 Ships with universal mounting bracket

2.8 User-friendly packaging allows foreasy un-spooling

2.9 Factory-sealed enclosure for environmental protection

Application:

3.1 FTTH Projects
3.2 FTTA Projects
3.3 Truck cable connectings
3.4 Prospecting or military communication
