| Categories | Rubber Fuel Hose |
|---|---|
| Brand Name: | PASSION |
| Model Number: | 5/16" |
| Certification: | IATF16949, ISO9001:2015, CE, ROHS, REACH. |
| Place of Origin: | CHINA |
| MOQ: | 1000 |
| Price: | 14 USD/m |
| Payment Terms: | T/T |
| Supply Ability: | 50000 meters/month |
| Delivery Time: | 25-30days |
| Packaging Details: | well packed by high quality braided straps |
| Working pressure: | 218 psi |
| Burst Pressure: | 725 psi |
| Rubber Material: | FKM, ECO |
| Reinforcement: | Aramid Fiber |
| Barrier: | THV Barrier |
| Suggest Working Temperature: | Up to +130 °C (+266°F) |
| Resistant Working Temperature: | Up to +150 °C (+302°F) |
| Inner Diameter: | 3/16" to 5/8" |
| Outer Diameter: | 10.3 mm to 23.6 mm |
| Medium: | gasoline, ethanol gasoline, diesel, bio-diesel |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

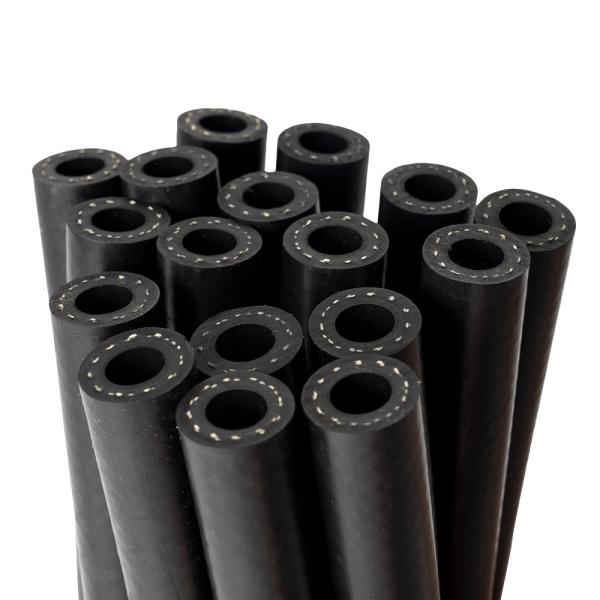

SAE J30R14 Fuel Hose Application:
Designed for fuel engines where low permeation is required.
Product Description
Temperature Resistant: Up to +130 °C (+266°F) for long term use and +150 °C (+302°F) for
short term use.
Standard Color: Black
Standard: SAE J30 R14 fuel line
| Part Number | I.D. | O.D. | Max W.P. | Min B.P. | |||
| No. | in | mm | mm | psi | MPa. | psi | MPa |
| PJ30R14-03 | 3/16" | 4.8 | 10.3 | 218 | 1.5 | 725 | 5.0 |
| PJ30R14-04 | 1/4" | 6.4 | 13.0 | 218 | 1.5 | 725 | 5.0 |
| PJ30R14-05 | 5/16" | 7.9 | 14.6 | 218 | 1.5 | 725 | 5.0 |
| PJ30R14-06 | 3/8" | 9.5 | 16.5 | 218 | 1.5 | 725 | 5.0 |
| PJ30R14-08 | 1/2" | 12.7 | 20.4 | 218 | 1.5 | 725 | 5.0 |
| PJ30R14-10 | 5/8" | 15.9 | 23.6 | 218 | 1.5 | 725 | 5.0 |
|
