| Categories | Single Phase Motor |
|---|---|
| Brand Name: | BM |
| Model Number: | 112M1-4 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 10PCS |
| Price: | USD35-USD120 |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 25 days |
| Packaging Details: | Cartons/Pallets |
| Name: | Washing Machine Motor |
| Pole: | 2pole,4pole |
| Mounting: | B3 Hollow shaft 24mm |
| Frequency: | 50HZ |
| Protection Grade: | IP55 |
| Power: | 3KW |
| Company Info. |
| Bimo Machinery Co.,Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

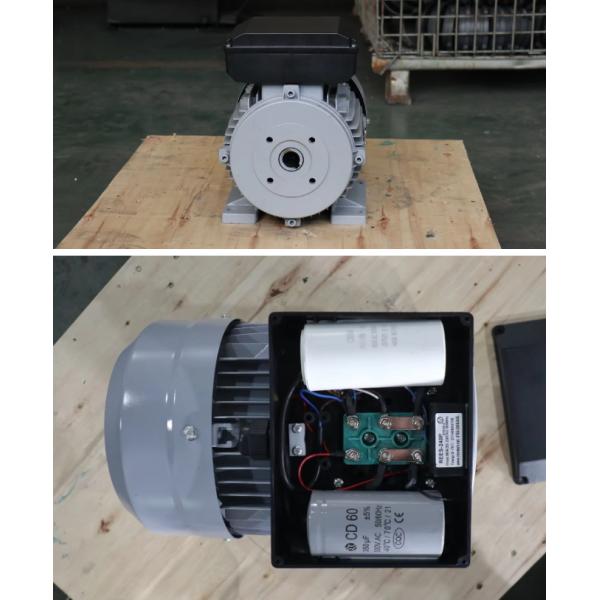

3KW 4HP Washing Machine Single Phase Vertical Hollow Shaft Electric Motor
The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution
Product name | Hollow shaft electric motor |
Motor housing | Aluminum |
Installation | B3 Hollow shaft 24mm |
Flange size | B3 87/61mm B3 75/90mm |
Bearing | C&U |
Shaft | C#45 |
Insulation | Class F |
Protection | IP55 |
Voltage/Frequency | Single phase 220V OR other request |
Speed | 900rpm/1400rpm/2850rpm |
Application | Cleaning equipment |

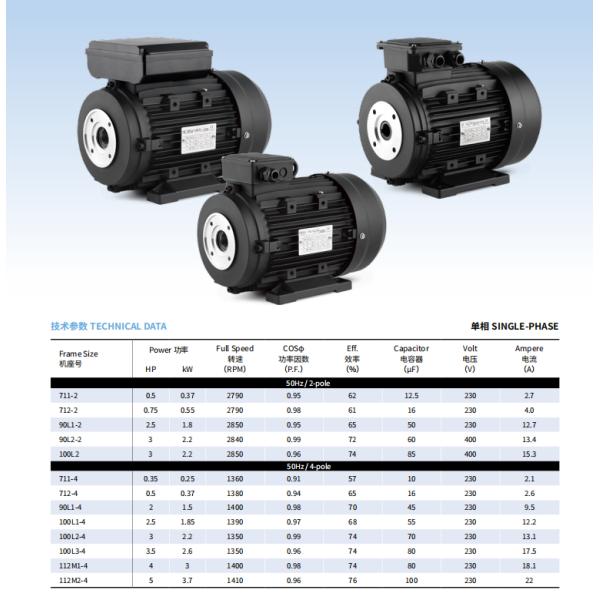

Type No.![]() ![]() ![]() | |||||||||||
|
