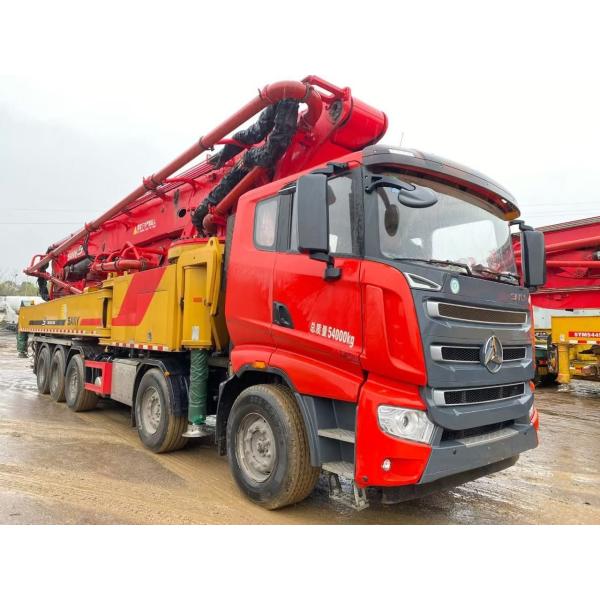

Sany 65M Concrete Pump Truck Used Pump Truck 2022

Sany SYM5541THBF 65m Concrete Pump Truck – Detailed Technical Description

Overview

The Sany SYM5541THBF 65m Concrete Pump Truck is a high-performance, truck-mounted boom pump designed for large-scale construction projects, including high-rise buildings, bridges, and industrial structures. With a 65-meter (213 ft) five-section Z-fold boom, it delivers superior reach, precision, and pumping efficiency. This model ensures reliability, fuel efficiency, and compliance with China VI emission standards.

Key Specifications & Features

1. Boom & Reach System

• Boom Length: 65m (213 ft) – Five-section Z-type folding boom.

• Boom Rotation: 365° continuous rotation for flexible placement.

• Maximum Vertical Reach: 58m (190 ft) – Suitable for 20+ story buildings.

• Horizontal Reach: 56m (184 ft) – Ideal for large-area pours.

• End Hose Length: 3m (9.8 ft) for precise concrete placement.

2. Pumping Performance

• Maximum Concrete Pressure: 13 MPa (high-pressure pumping for long-distance delivery).

• Cylinder Diameter: 230mm (ensures smooth concrete flow).

• S-Valve Design: High wear resistance for abrasive concrete mixes.

3. Hydraulic System

• Closed-Loop Hydraulics: Energy-efficient and smooth operation.

• Intelligent Pressure Control: Automatically adjusts to concrete resistance.

• Emergency Relief Valve: Prevents system overload.

4. Control & Operation

• Advanced PLC Control System: Touchscreen interface with real-time diagnostics.

• Wireless Remote Control: Allows safe operation from a distance.

• Automatic Boom Stabilization: Prevents tipping during pumping.

5. Safety Features

• Overload Protection: Sensors detect excessive pressure.

• Emergency Stop System: Immediate shutdown in critical situations.

• Anti-Collision Sensors: Prevents boom contact with obstacles.

6. Applications

✔ High-rise buildings (20+ floors)
✔ Bridges & tunnels
✔ Power plants & dams
✔ Large industrial & commercial projects

Advantage of the Sany SYM5541THBF 65m Pump

✔ High Pumping Capacity: Up to 180 m³/h (low pressure) and 125 m³/h (high pressure).
✔ Powerful Engine: 348 kW (466 HP) D13C6-480E engine with China VI compliance.
✔ Long Reach: 64.2m vertical boom height for high-rise construction.
✔ Large Hydraulic & Water Tanks: Ensures continuous operation.
✔ 5-Axle Chassis: Enhances stability and load distribution.
✔ High-Speed Mobility: 90 km/h max speed for efficient job site transfers
