| Categories | 2960 Switch |
|---|---|
| Brand Name: | WS-C2960L-48PQ-LL |
| Model Number: | WS-C2960L-48PQ-LL |
| Place of Origin: | Beijing |
| Packaging Details: | Brand new original unopened |
| Supply Ability: | 50 Piece/Pieces per Day |
| MOQ: | 2 pieces |
| Price: | $1,075.00/pieces 2-99 pieces |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time: | 3-5days |
| Private Mold: | NO |
| Products Status: | Stock |
| Ports: | 48, 48 10/100/1000 Ports |
| Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 176G |
| Product Name: | WS-C2960L-48PQ-LL |
| Condition: | NIB Original |
| Warranty: | 1 Year |
| Device Type: | Switch - 48 Ports - Managed |
| Lead time: | 3~7 Days |
| Shipping: | DHL UPS FEDEX |
| Weight: | 4.54kg |
| Dimensions (H x W x D): | 4.4 x 44.5 x 29.2 cm |
| Port: | Beijing&HK |
| Company Info. |
| Beijing Lianmai Tongchuang Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
WS-C2960L-48PQ-LL offering 48 x GigE PoE+ ports, 4 x 10G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features.??

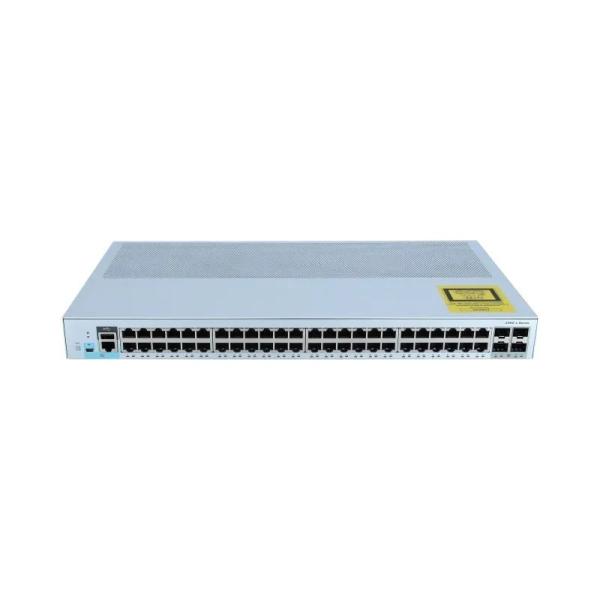

Figure 1 shows the appearance of WS-C2960L-48PQ-LL.
Table 1 shows the Quick Specs.
| Product Code | WS-C2960L-48PQ-LL |
| IOS | LAN Lite |
| Forwarding bandwidth | 88 Gbps |
| Switching bandwidth | 176 Gbps |
| 10/100/1000 Ethernet Ports | 48 PoE+ Ports |
| Available PoE Power | 370W |
| Uplink Interfaces | 4 x 10G SFP |
| Fanless | N |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Dimensions (H x D x W) | 1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm) |
| Net Weight | 9.81 lb (4.54 kg) |
Figure 2 shows the front panel of WS-C2960L-48PQ-LL.
?
Note:
| ① | Mode button |
| ② | USB mini-Type B (console) port |
| ③ | RJ-45 Console Port |
| ④ | 48 x 10/100/1000 PoE+ ports |
| ⑤ | SFP module slots |
| ⑥ | USB Type A port |
| ⑦ | System LEDs |
· There are a Security slot, Heat sink fins and an AC power connector on the back panel.
Table 2 shows the recommended elements for the WS-C2960L-48PQ-LL.
| Model | Description |
| CAB-CONSOLE-USB | Cisco?CAB-CONSOLE-USB?Console Cable 6 ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | Cisco?CAB-CONSOLE-RJ45?Console Cable 6ft with RJ45 and DB9F |
| CAB-ACE= | CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M |
| CAB-ACU= | CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m |
Table 3 shows the comparison of WS-C2960L-48PS-LL and WS-C2960L-48PQ-LL.
| Model | WS-C2960L-48PS-LL | WS-C2960L-48PQ-LL |
| IOS | LAN Lite | LAN Lite |
| Forwarding bandwidth | 52 Gbps | 88 Gbps |
| Switching bandwidth | 104 Gbps | 176Gbps |
| 10/100/1000 Ethernet Ports | 48 | 48 |
| Available PoE Power | N/A | 370W |
| Uplink Interfaces | 4 x 1G SFP | 4 x 10G SFP |
Product Code | WS-C2960L-48PQ-LL |
IOS | LAN Lite |
Forwarding bandwidth | 88 Gbps |
Switching bandwidth | 176 Gbps |
10/100/1000 Ethernet Ports | 48 PoE+ Ports |
Available PoE Power | 370W |
Uplink Interfaces | 4 x 10G SFP |
Fanless | N |
DRAM | 512 MB |
Flash memory | 256 MB |
Dimensions (H x D x W) | 1.73 x 11.5 x 17.5 in. (4.4 x 29.2 x 44.5 cm) |
Net Weight | 9.81 lb (4.54 kg) |
|
