| Categories | Auto Body Collision Repair System |
|---|---|
| Place of Origin: | Shanghai, China |
| Brand Name: | AA4C |
| Model Number: | AA-ACR399E |
| Certification: | ISO9001 |
| Packaging Details: | Metal frame car chassis straightening bench AA-ACR399E |
| Supply Ability: | 10 Yard/Yards per Month car chassis straightening bench AA-ACR399E |
| Price: | $5,000.00 - $8,000.00/Units |
| MOQ: | 1 unit |
| Weight: | 2.6T |
| Bench Height: | 560mm |
| Max. Hydraulic Pressure: | 10T |
| Max. Lifting Capacity: | 3.5T |
| Max. Tension (N): | 10KN |
| Worktable Length: | 6000mm |
| Worktable Width: | 2200mm |
| Warranty: | 1 Years |
| Product name: | car chassis straightening bench AA-ACR399E |
| Movable: | Mobile version |
| Color: | Blue |
| Mainly market: | America |
| Using range: | 4S Station/garage Store/according |
| Measuring system: | Higher Exactitude |
| Kinds of clamps: | Standard Clamps 4 Pcs |
| Company history: | History |
| Why choose us: | IS90001. High |
| Port: | Shanghai |
| Company Info. |
| Shanghai AA4C Auto Maintenance Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

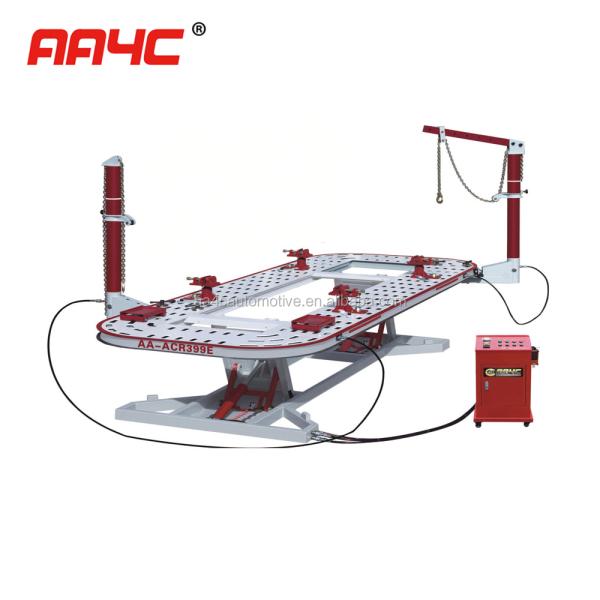

car chassis straightening bench AA-ACR399E
Hydraulic vertical lifting bench, On the platform of 10mm thick plate, plate is 8mm thick, single panel width is 600mm wide, 5 holes, each hole below the ribs, and connected with the upper and lower plate, and lateral reinforcement is 8mm thick, the middle is 6mm thick, longitudinal ribs and transverse ribs and cross distribution. The rings are made of 10mm thick walled steel tubes, Two 360°rotating pulling towers; All accessories and clamping tools are forged with the mould, hardened and tempered under HRC28 degrees, and clamp tooth are heated under HRC40 degrees.






|
