| Categories | Excavator Hydraulic Pump |
|---|---|
| Brand Name: | Hyundai |
| Model Number: | 31N4-15011 31N4-15012 31N4-15013 FOR Hyundai R140W-7 R150W-7 EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable price |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 300pcs /Month |
| Delivery Time: | 5-8 Weekdays |
| Packaging Details: | Wooden case or as required |
| Product name: | 31N4-15011 31N4-15012 31N4-15013 FOR Hyundai R140W-7 R150W-7 EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL |
| Applicable machine model：: | Hyundai R140W-7 R150W-7 EXCAVATOR PARTS |
| Applicable Industries：: | Mechanical repair shops, retail, construction, energy, mining |
| category: | Hydraulic Pump |
| Condition: | NEW/REBUILT |
| Brand: | Hyundai |
| Company Info. |
| Guangzhou Tieqi Construction Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
31N4-15011 31N4-15012 31N4-15013 FOR Hyundai R140W-7 R150W-7 EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 31N4-15011 31N4-15012 31N4-15013 FOR Hyundai R140W-7 R150W-7 EXCAVATOR PARTS HYDRAULIC PUMP MAIN PUMP HYDRAULIC PISTON PUMP GP-VANE AFTERMARKET ORIGINAL | category: Hydraulic Pump | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

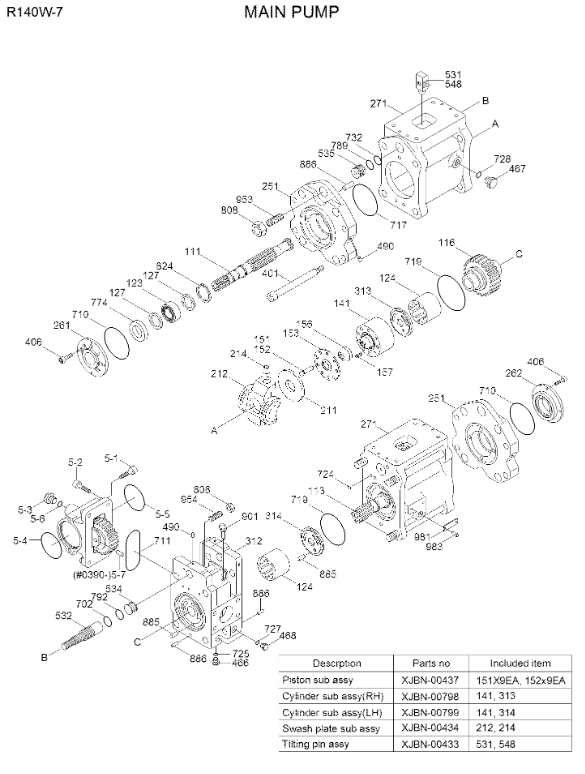

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N4-15011 | [1] | MAIN PUMP | STD |
| *. | 31N4-15012 | [1] | MAIN PUMP | STD |
| *. | 31N4-15030 | [1] | MAIN PUMP | LOW NOISE |
| *-1. | XJBN-00848 | [1] | MAIN PUMP UNIT | STD |
| *-1. | XJBN-01028 | [1] | MAIN PUMP UNIT | |
| *-1. | XJBN-00927 | [1] | MAIN PUMP UNIT | LOW NOISE |
| 111 | XJBN-00432 | [1] | SHAFT(F)-DRIVE | |
| 113 | XJBN-00431 | [1] | SHAFT(R)-DRIVE | |
| 116 | XJBN-00804 | [1] | GEAR-1ST | |
| 123 | XJBN-00429 | [2] | BEARING-ROLLER | |
| 124 | XJBN-00428 | [2] | BEARING-NEEDLE | |
| 127 | XJBN-00806 | [4] | SPACER-BEARING | |
| NS141. | XJBN-00807 | [2] | BLOCK | |
| NS151. | XJBN-00425 | [18] | PISTON | |
| NS152. | XJBN-00424 | [18] | SHOE | |
| 153 | XJBN-00423 | [2] | PLATE-SET | |
| 156 | XJBN-00422 | [2] | BUSHING-SPHERICAL | |
| 157 | XJBN-00421 | [18] | SPRING-CYLINDER | |
| 211 | XJBN-00420 | [2] | PLATE-SHOE | |
| S212. | XJBN-00419 | [2] | PLATE-SWASH | |
| S214. | XJBN-00418 | [2] | BUSHING-TILTING | |
| 251 | XJBN-00417 | [2] | SUPPORT | |
| 261 | XJBN-00416 | [1] | COVER(F)-SEAL | |
| 262 | XJBN-00810 | [1] | COVER-RR | |
| 271 | XJBN-00415 | [2] | CASING-PUMP | |
| 312 | XJBN-00812 | [1] | BLOCK-VALVE | |
| S313. | XJBN-00413 | [1] | PLATE(R)-VALVE | |
| S314. | XJBN-00412 | [1] | PLATE(L)-VALVE | |
| 401 | XJBN-00411 | [8] | SCREW | |
| 406 | XJBN-00410 | [8] | SCREW | |
| 466 | XJBN-00356 | [2] | PLUG | |
| 467 | XJBN-00409 | [4] | PLUG | |
| 468 | XJBN-00237 | [2] | PLUG | |
| 490 | XJBN-00032 | [15] | PLUG | |
| S531. | XJBN-00408 | [2] | PIN-TILTING | |
| 532 | XJBN-00407 | [2] | PISTON-SERVO | |
| 534 | XJBN-00406 | [2] | STOPPER(L) | |
| 535 | XJBN-00405 | [2] | STOPPER(S) | |
| S548. | XJBN-00404 | [2] | PIN-FEED BACK | |
| 702 | XJBN-00403 | [2] | O-RING | STD |
| 702 | XJBN-00888 | [2] | O-RING | LOW NOISE |
| 710 | XJBN-00402 | [2] | O-RING | |
| 711 | XJBN-00095 | [1] | O-RING | |
| 717 | XJBN-00401 | [2] | O-RING | |
| 719 | XJBN-00400 | [2] | O-RING | |
| 724 | XJBN-00361 | [18] | O-RING | |
| 725 | XJBN-00362 | [2] | O-RING | |
| 727 | XJBN-00233 | [2] | O-RING | |
| 728 | XJBN-00097 | [4] | O-RING | |
| 732 | XJBN-00879 | [2] | O-RING | STD |
| 732 | XJBN-00820 | [2] | O-RING | LOW NOISE |
| 774 | XJBN-00399 | [1] | SEAL-OIL | |
| 789 | XJBN-00398 | [2] | RING-BACK UP | |
| 792 | XJBN-00397 | [2] | RING-BACK UP | |
| 808 | XJBN-00396 | [4] | NUT-HEX | |
| 824 | XJBN-00395 | [2] | RING-SNAP | |
| 885 | XJBN-00394 | [2] | PIN-VALVE PLATE | |
| 886 | XJBN-00365 | [4] | PIN-SPRING | |
| 901 | XJBN-00393 | [2] | BOLT-EYE | |
| 953 | XJBN-00105 | [2] | SCREW-SET | |
| 954 | XJBN-00392 | [2] | SCREW-SET | |
| 981 | XJBN-00156 | [1] | NAME PLATE | STD |
| 981 | XJBN-00867 | [1] | NAME PLATE | LOW NOISE |
| 983 | XJBN-00341 | [2] | PIN | |
| *-2. | @ | [1] | REGULATOR ASSY | REAR |
| *-2. | @ | [1] | REGULATOR ASSY | FRONT |
| *-5. | XJBN-00975 | [1] | PTO UNIT | STD |
| *-5. | XJBN-01018 | [1] | PTO UNIT | STD |
| *-5. | XJBN-00926 | [1] | PTO UNIT | LOW NOISE |
| 5 | XJBN-00828 | [1] | PTO ASSY | STD/LOW NOISE |
| 5 | XJBN-01020 | [1] | PTO ASSY | STD |
| 5 | XJBN-00828 | [1] | PTO ASSY | LOW NOISE |
| 5-1. | XJBN-00160 | [2] | SCREW-SOCKET | |
| 5-2. | XJBN-00725 | [4] | SOCKET-FLANGE | |
| 5-3. | XJBN-00357 | [1] | PLUG | |
| 5-4. | XJBN-00837 | [1] | O-RING | |
| 5-5. | XJBN-00402 | [1] | O-RING | |
| 5-6. | XJBN-00363 | [1] | O-RING | |
| 5-7. | XJBN-01023 | [1] | PIN-SPRING | STD |
| *-51. | @ | [1] | GEAR PUMP | |
| S. | XJBN-00437 | [1] | PISTON SUB ASSY | |
| S. | XJBN-00798 | [1] | CYLINDER SUB ASSY-RH | SEE ILLUST |
| S. | XJBN-00799 | [1] | CYLINDER SUB ASSY-LH | SEE ILLUST |
| S. | XJBN-00434 | [1] | SWASH PLATE ASSY | SEE ILLUST |
| S. | XJBN-00433 | [1] | TILTING PIN ASSY | SEE ILLUST |
