High Precision Pressure Gauge, Dry Air Inflation Kit, Density Relay, Safety Valve [KSCQ-5G]

High-Precision SF6 Inflation Kit KSCQ-5G – Pressure Regulation Solution
The best inflatable kit with the most complete configuration, including safety valves, high-precision pressure gauges, high-end pressure reducing valves, and imported rubber hoses......

Operational Overview

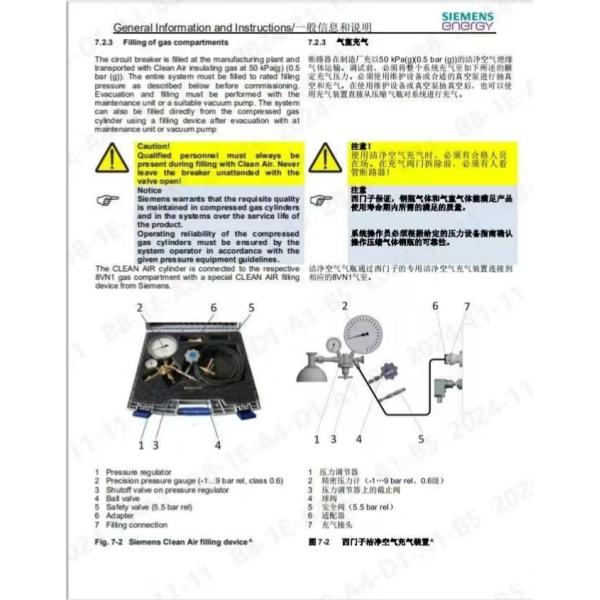

Environmentally friendly gas inflation device, compatible with Siemens Energy.

dry air inflation kit.


This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS systems via a pressure regulator, reinforced hose, and density relay. Featuring a 0.25-class accuracy pressure gauge and selectable safety valves (5.5bar/9.8bar), it ensures precise pressure management and overpressure protection during industrial gas charging operations.

System Configuration

ComponentSpecification
Adjustable Pressure Regulator1 unit (0-10 bar output range)
High-Precision Pressure Gauge0.25-class accuracy, 0-10 bar scale
Safety Relief Valve5.5bar (79.8psi) or 9.8bar (142psi)
DN8 Reinforced Inflation Hose5m length, 15bar working pressure
SF6 Density RelayAuto shut-off at preset density levels
Impact-Resistant CaseFoam-lined, 600×400×250mm dimensions

Technical Parameters

ParameterStandard Value
Model CodeKSCQ-5G
ApplicationGIS system SF6 gas charging
Gauge Accuracy0.25 class (±0.025bar F.S.)
Safety Valve Options5.5bar / 9.8bar (dual types)
Hose Pressure Rating15bar (217.5psi) max
Temperature Range-20°C to +60°C
Case ProtectionIP54 dust/water resistance

Key Features

  • Dual Safety Protection: Pressure regulator with integrated safety valve prevents overcharging
  • Industrial-Grade Build: Reinforced hose and corrosion-resistant fittings for long-term use
  • Precision Measurement: 0.25-class gauge ensures density control within ±1% tolerance
