2.4G 5.8G 4dBi Wifi Omni Fiberglass Antenna 20x160mm

1. Specification

2. Antenna - S Parameter Test Data
2.1 VSWR

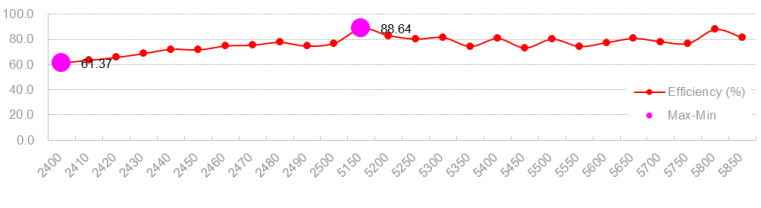

2.2 Total Efficiency & Gain:

Frequency(MHz)	2400	2410	2420	2430	2440	2450	2460	2470	2480	2490	2500
Gain (dBi)	3.4	3.6	3.7	3.9	4.1	3.9	4.0	3.9	4.0	3.8	3.8
Efficiency (%)	61.4	63.3	65.7	68.7	72.2	71.6	74.8	75.5	77.6	74.6	77.0

Frequency(MHz)	5150	5200	5250	5300	5350	5400	5450	5500	5550	5600	5650	5700	5750	5800	5850
Gain (dBi)	3.2	2.7	2.2	2.2	1.9	2.5	2.2	2.7	2.5	2.7	2.9	2.9	3.0	3.6	3.4
Efficiency (%)	88.6	82.9	80.3	81.5	74.4	80.6	73.2	80.2	74.4	77.4	80.8	78.2	76.9	87.9	81.3

	3D	2D-Horizontal	2D-Vertical
2400MHz
2450MHz
2500MHz

3D	2D-Horizontal	2D-Vertical
5150MHz
5550MHz
5850MHz
