| Categories | Inconel Alloy |
|---|---|
| Brand Name: | HUONA |
| Model Number: | Rod |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1kg |
| Price: | Bargain |
| Payment Terms: | T/T |
| Supply Ability: | 1000kg Per Week |
| Delivery Time: | A Week |
| Packaging Details: | Carton or Wooden Case |
| Density: | 8.47 g/cm³ (0.306 lb/in³) |
| Melting Range: | 1354–1413°C (2470–2580°F) |
| Electrical Resistivity: | 1.03 μΩ·m (at 20°C) |
| Thermal Conductivity: | 14.9 W/m·K (at 100°C) |
| 14.9 W/m·K (at 100°C): | Typically <1.02 (non-magnetic when annealed) |
| Oxidation Resistance:: | Excellent up to 1095°C (2000°F) |
| Company Info. |
| Huona (Shanghai) New Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

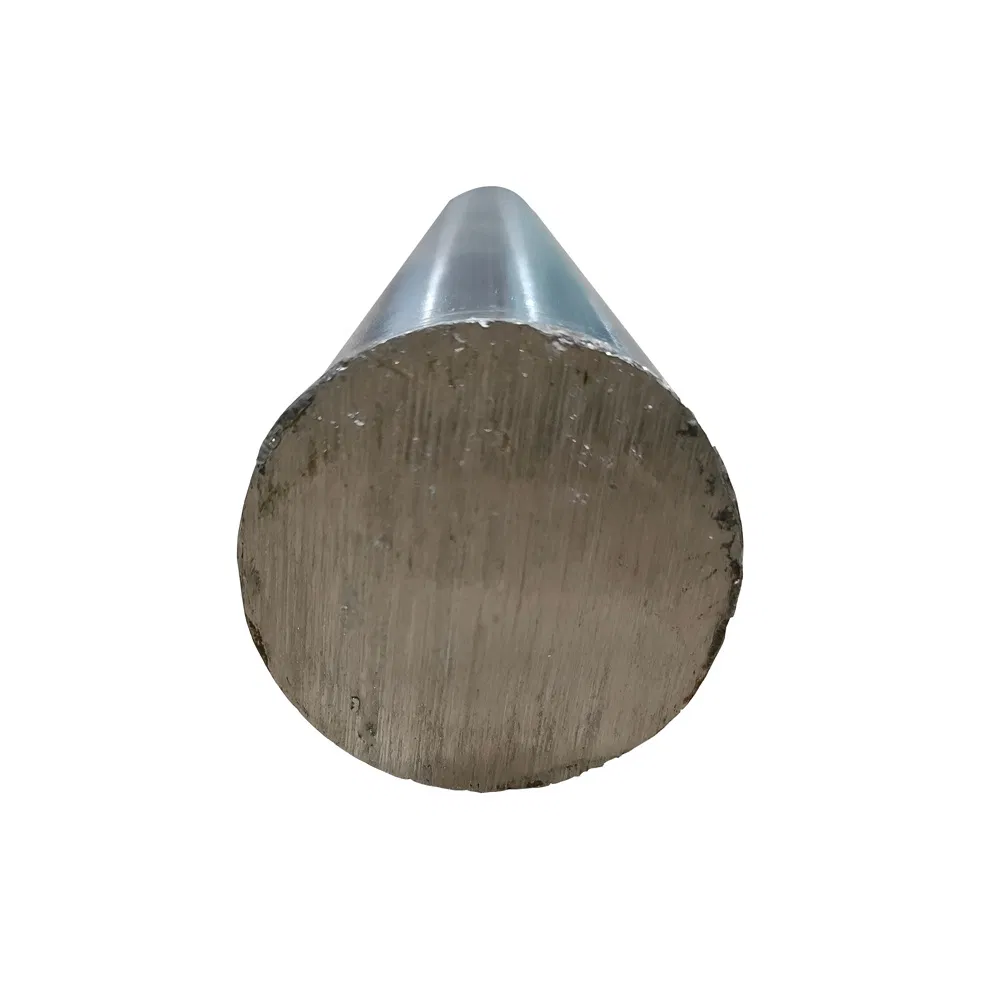

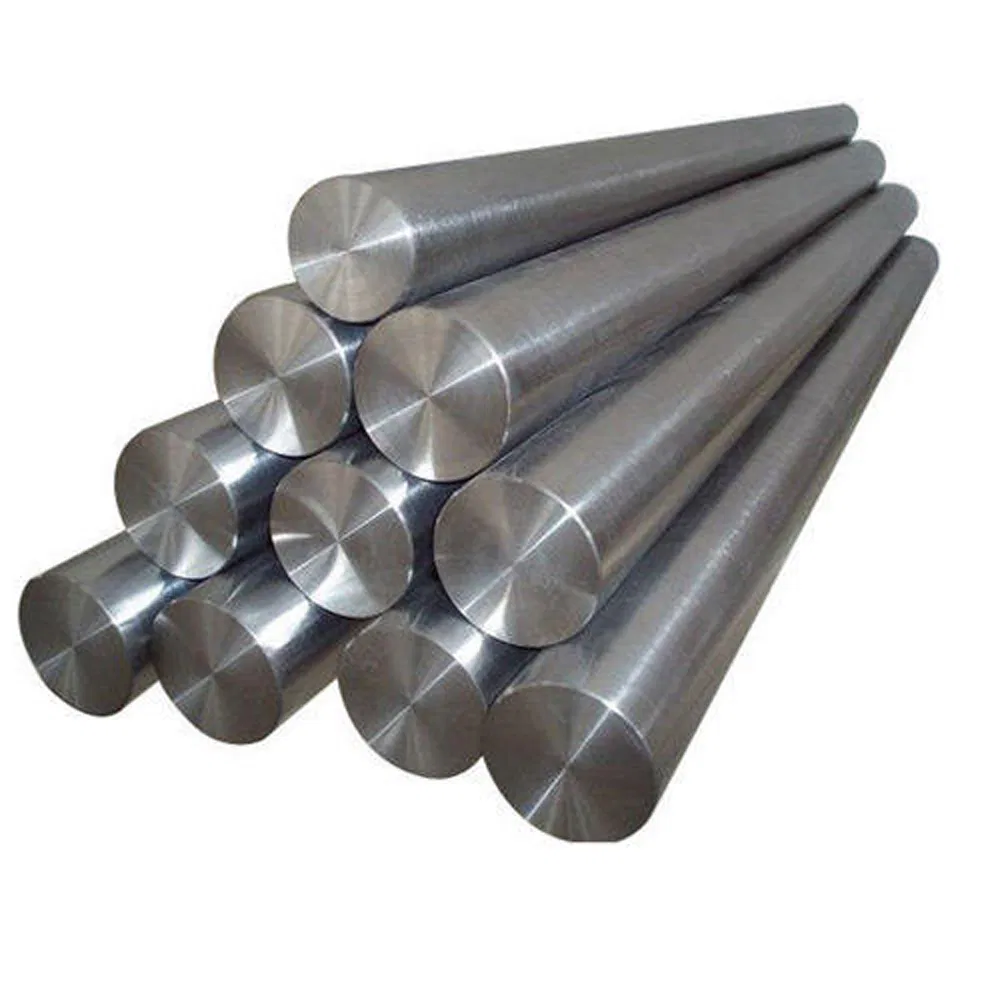

Nickel Alloy Bar Inconel 600 625 718 Incoloy 800, Monel 400 K500,
Hastelloy C22 C-276
Inconel 625, a Nickel-Chromium-Molybdenum alloy with low Carbon and Niobium
addition, has superior resistance to high temperature effects such
as oxidation and carburization as well as to a wide range of
corrosive environments of unusual severity, especially resistance
to pitting and crevice corrosion. Typical applications for inconel
625 are seawater applications, aerospace components, chemical
processing equipment, nuclear water reaction components.
Inconel series: 600,601,617,625,690,718,825
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
| Item | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
|
