| Categories | Road Maintenance Equipment |
|---|---|
| Brand Name: | FAW |
| Model Number: | FAW |
| Certification: | ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 unit |
| Price: | Negotiate |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300 units/mouth |
| Delivery Time: | 40 worker days |
| Packaging Details: | nude |

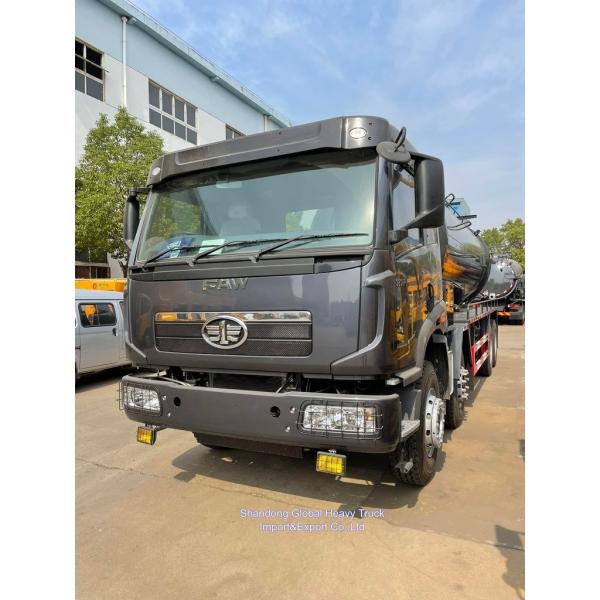

| Product Name: | FAW 6*4 5cbm Sewage Suction Vacuum Tank Truck |
| Tank Volume: | 5000L |
| Drive Wheel: | 6*4 |
| Hoesrpower: | 251-350hp |
| Tank Material: | Q235 Carbon Steel/Head 5.0mm, Q235 Carbon Steel/5. |
| Front Axle: | Hf9 |
| Capacity: | 12m3 |
| Emission: | Euro 2 |
| Company Info. |
| Shandong Global Heavy Truck Import&Export Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Chassis | Chassis Model | SX1250MB4 |
Wheelbase | 4375+1350 mm | |
Gross Weight | 25000kgs | |
Curb Weight | 12400kgs | |
Engine | Engine Brand | WeiChai |
Type | Multi cylinder, 4stroke, 6 cylinder water cooled, direct fuel
injection, turbo-diesel engine. | |
Displacement Volume(ml) | 9726 | |
Net Power(KW) | Min 249 KW at rated RPM | |
Fuel Type | Diesel | |
Emission Standard | Eour 3~5 | |
Clutch System | Model | Single Plate, dry friction |
Steering System | Power Steering | Left hand driving, RHD is available |
Transmission System | Manually Operated | 9-speed |
Brake System | Service Brake | Hydraulic disk brakes |
Park Brake | Air Brake & Hand Brake | |
Suspension System(Front & Rear) | Semi-elliptical leaf spring with telessopic shock absorber (both
front & rear) | |
Type | Type Quantity | 10 pcs |
Type Specification | 12.00R20 16PR/12.00R20 18PR | |
Cabin | The cabine of 3 person (including driver), cruise control, ABS, air
conditgioning, electric glass, adjustable headlights, USB, etc. | |
Body/Superstructure | Tank Capacity | Water Tank: 8 m³ Sewage Tank: 10 m³ |
Tank Material | 8mm high quality carbon steel | |
Vacuum pump | China famous vacuum pump | |
Vacuum rate | 99% | |
Suction Head | 8m | |
Rotation speed | 500rpm, low nosice, high efficiency | |
Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |
Paint | Tank color is according to client's requirements. | |
Optional Equipments | 1.Italy or Spain vacuum pumps 2.Stainless steel tank body 3.Anti-rust coating inside tank | |

|
