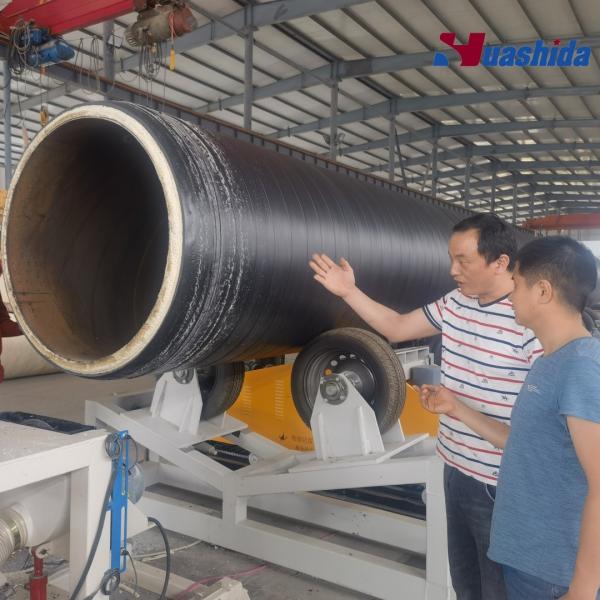

Huashida Rigid polyurethane spraying polyethylene winding prefabricated directly buried insulation pipe consists of steel working pipe, spraying polyurethane rigid foam insulation layer and winding polyethylene outer protective pipe.



The production line employs a continuous spraying manufacturing process. It is characterized by a high level of automation, rapid production efficiency, conservation of raw materials, enhanced foaming and closed-cell ratios, a lowered water absorption rate, and three-in-one molding, which makes its performance more dependable. Low-carbon and eco-friendly products bring about significant economic and social benefits.

The production line is composed of three major parts:
√ Steel Pipe Shot Blasting Machine

√ Polyurethane Spraying Production Line

√ PE Outer Jacket Winding Production Line

Application:

Mainly used for the production of thermal insulation pipes for heating, cooling, petroleum, chemical and other fields.

Production steps:

1.External shot blasting for steel pipe rust removal
2.Steel pipe transferred to spraying conveyor line via pipe transport cart
3.Pipe preheating
4.Polyurethane foam spraying
5.Pipe transported to storage platform by lifting cart
6.PE jacket winding
7.Water cooling
8.Connection cutting
9.Finished pipe inspection
10.Pipe end repairing
11.Spray coding and packaging

Production line parameter:

1.Steel pipe range: 206mm-1820mm

2.Processing capacity:≤250m²/h

3. Cleaning class: Sa2.5

4.Used material: ISO (isocyanate), POLY (premixed polyether polyols), PE

5.Main equipment: Shot blasting and rust removal production line, Polyurethane spray production line, PE winding production line.

Shot blasting rust removal production line

Polyurethane spray production line

PE winding production line

1. Awarded the first (set) technical equipment in Shandong Province
2. Evaluation Report on Standardization of Scientific and Technological Achievements in Qingdao City
3.Having multiple national patents
4.Intelligence, automation, and reducing manual labor
5.Efficient and energy-saving, with low production costs
6.Stable and reliable, with a high yield of finished products and minimal waste

1. company profile

Qingdao Huashida Machinery Co., Ltd. is located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have tens of years experience in plastic pipe, sheet, and board extrusion lines, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.

2. main products

Our main products include as following,HDPE PU pre-insulation Jacket Pipe extrusion line,3PE steel pipe anticorrosion&coating machinery,Rubber&plastic foam flexible insulation tube/sheet production line,HDPE water supplying pipe extrusion line,PE PP sheet board extrusion line,Heat shrinkable sleeve production line,Hollow wall spiral pipe production line,Plastic welding rod extrusion line,Radiation cross-linked PE heat shrinkable sleeve,Electro fusion tape,Portable extrusion welder.

Our machines make products what are widely used as jacket pipe of PU foam insulation pipe in municipal heating pipe system; Municipal water supplying and drainage pipeline; Oil and gas pipeline; Pipe joints of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;

4. Our certificates and Patents

5. Global market
Our purpose is to supply highest cost-effective products and the most suitable solutions to our clients, as well as intimate help and service, on this basis we reach a win-win situation.
For over 14years We have exported to many foreign countries, such as Russia, Iran, Turkey, U. A. E, Sudan, Ukraine, Uzbekistan, Azerbaijan, South Asia, Poland etc.

6. Core Team

The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.We will provide the technical service train the workers from the buyers for free.We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
