| Categories | 166mm Solar Panels |
|---|---|
| 品牌: | Bluesun |
| 型号: | BSM455M-72HPH |
| 原产地: | Anhui, China |
| 电池片尺寸: | 166mmx166mm |
| 类型: | 打击乐, 半电池, 双层-玻璃 |
| 尺寸: | 2094*1038*35mm |
| 组件效率: | / |

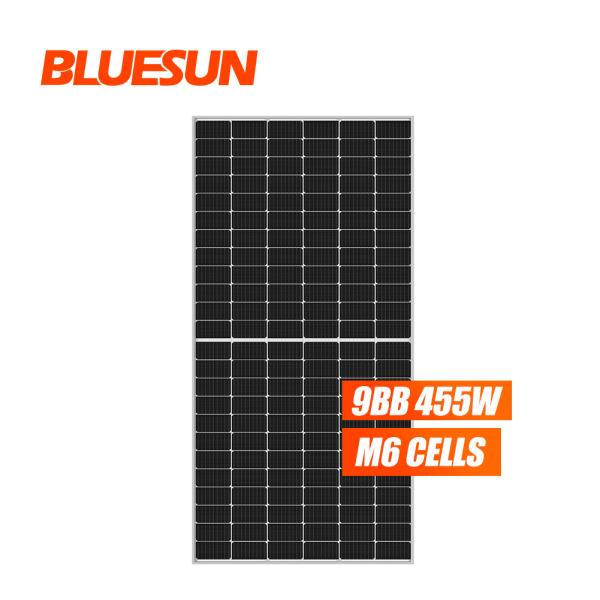

| Product name: | Half Cell Mono Solar Panel |
| Certificate: | BSI/TUV |
| Weight: | 23.5kg |
| Brand: | Bluesun |
| Power: | 425w-455w |
| Junction Box: | IP68 |
| Frame: | Anodized Aluminum Alloy Frame |
| Type: | PERC, Half Cell, Bifacial, Double-glass, BIPV |
| Warranty: | 25 years |
| 保修期: | 10YEARS |
| Company Info. |
| Bluesun Solar Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |


Electrical Characteristics | ||||||||||||||
Model Number | BSM425M-72HPH | BSM430M-72HPH | BSM435M-72HPH | BSM440M-72HPH | BSM445M-72HPH | BSM450M-72HPH | BSM455M-72HPH | |||||||
Testing Condition | STC | |||||||||||||
Maximum Power (Pmax/W) | 425 | 430 | 435 | 440 | 445 | 450 | 455 | |||||||
Open Circuit Voltage (Voc/V) | 48.3 | 48.5 | 48.7 | 48.9 | 49.1 | 49.3 | 49.5 | |||||||
Short Circuit Current (Isc/A) | 11.23 | 11.31 | 11.39 | 11.46 | 11.53 | 11.60 | 11.66 | |||||||
Voltage at Maximum Power (Vmp/V) | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 | 41.5 | 41.7 | |||||||
Current at Maximum Power (Imp/A) | 10.50 | 10.57 | 10.64 | 10.71 | 10.78 | 10.85 | 10.92 | |||||||
Module Efficiency(%) | 19.6 | 19.8 | 20 | 20.2 | 20.5 | 20.7 | 20.9 | |||||||
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell
Temperature 25 ℃, Spectra at AM1.5 | ||||||||||||||

Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||

|
