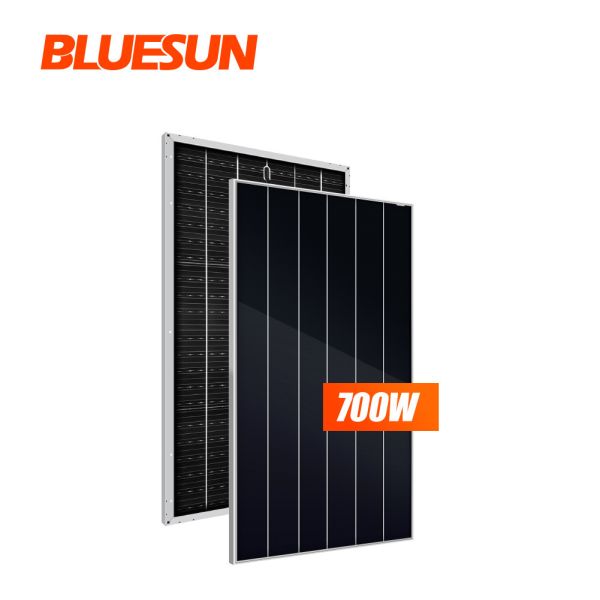

High Efficiency Shingled Double Glass 700w 700watt 700wp Solar Panel for Home and Industrial Application

Categories Shingled Solar Panel
Brand Name: BLUESUN
Model Number: BSM700PMB6-70SDC
Place of Origin: Anhui, China
Cell size: 210mmx210mm
Panel Dimensions: 2384*1303*35mm
Panel Efficiency: 22.81%
Product name: Solar Panel
Junction Box: IP65 Waterproof
Certificate: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Warranty: 25 Years Solar Panel
Frame: Anodized Aluminium Alloy
OEM: Accepatable
Connector: PV Compatible Connector
Solar cell: N-Type Monocrystalline
Type: Monocrystalline Solar Panel
Application: Solar Panel System
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Efficiency Shingled Double Glass 700w 700watt 700wp Solar Panel for Home and Industrial Application

Products Description
Product Parameters
SPECIFICATIONS
SPECIFICATIONS
Module Type
BSM675PMB6-70SDC
BSM680PMB6-70SDC
BSM685PMB6-70SDC
BSM690PMB6-70SDC
BSM695PMB6-70SDC
BSM700PMB6-70SDC
STC
STC
STC
STC
STC
STC
Maximum Power (Pmax/W)
675
680
685
690
695
700
Operating Voltage (Vmp/V)
39.20
39.30
39.40
39.50
39.60
39.60
Operating Current (Imp/A)
17.23
17.32
17.41
17.49
17.57
17.68
Open-Circuit Voltage (Voc/V)
47.20
47.30
47.40
47.50
47.60
47.70
Short-Circuit Current (Isc/A)
18.32
18.41
18.50
18.59
18.68
18.80
Module Efficiency (%)
21.90
22.10
22.30
22.50
22.60
22.81
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5
Electrical characteristics with different rear side power gain(refer to700W front)
Pmax gain
Pmax/W
Vmpp/V
Impp/A
Voc/V
Isc/A
5%
735
39.6
18.56
47.7
19.74
10%
770
39.6
19.45
47.7
20.68
15%
805
39.6
20.33
47.7
21.62
20%
840
39.6
21.22
47.8
22.56
25%
875
39.6
22.10
47.8
23.50
Advantages Of Shingled Panel

* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
