We are proud to offer self-lubricating polyacetal bushings, also
known as POM bushings, sourced from China. Polyacetal, also
referred to as Polyoxymethylene (POM) or Acetal Resin, is a
high-performance engineering plastic with exceptional mechanical
properties, wear resistance, and dimensional stability.
The self-lubricating nature of POM bushings makes them ideal for
applications where lubrication may be limited or inconvenient. POM
bushings are widely used in various industries, including
automotive, machinery, and electronics, due to their ability to
reduce friction and wear while maintaining precise dimensions.
As a reliable supplier from China, we ensure that our POM bushings
meet strict quality standards and are manufactured using the latest
technology. We provide a range of sizes and specifications to meet
your specific requirements and offer competitive pricing to ensure
you get the best value for your money.
We understand the importance of timely delivery and excellent
customer service, which is why we strive to provide both. Wh you
need a small quantity of POM bushings or a large bulk order, we are
here to help. Contact us today to learn more about our
self-lubricating polyacetal bushings and how we can meet your
needs.

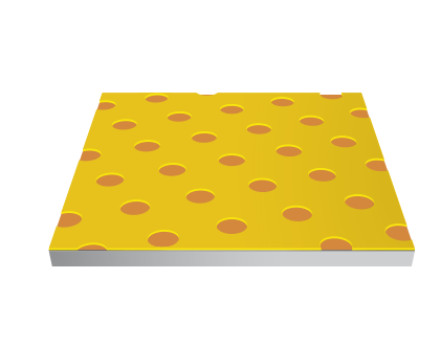

Maintenance-free, self lubricating bearing polyacetal Coted Strips
The structure of this prelubricated yellow bushing strip material
consists of spherical powdered bronze sintered onto a steel backing
and polyacetal resin impregnated into the surface.
Metal-polymer-composite material Polyacetal-Copolymer bearing
material (POM)
Cylindrical bushes Flanged bushes Thrust washers Flanged washers
Strips
VIIPLUS POM Coted bushing based sliding bearing also similar
bushing, boundary lubrication bearing,SF-2 oilless bearing,dry
bearing, POM lined plain dry bush. It has similar material
structure with bushing. The difference is the layer with POM coated. We are leading exporter of POM Coated Bushing,sliding bearing,boundary lubrication bearing,Dry
Bearing in china.
Dry bearing material Metal-polymer-composite material POM with lubrication indents
VSB-20 Strips, Slide paths PAS self lubricating low-maintenance
Wrapped POM Lined Bearings Steel + Bronze Powder + POM Strips
Our POM range of wrapped acetal lined bearings are suitable for rotary and
oscillating movement applications.
The VIIPLUS plain bearings are available in metric and imeprial sizes as
standard.
Our in-house machining service is able to offer non-standard sizes
to suit customer specific requirements.
Characteristics
VIIPLUS range of wrapped POM lined bearings are suitable for rotary and oscillating movement
applications. They benefit from long re-lubrication intervals, no
absorption of water, outstanding damping behaviors and have a low
suceptibility to edge loading.
Strips PAS are available as an even material section. This material
section can be used to make sliding elements in a variety
of shapes.
Metal - Polymer Composite Bearing With POM Material
The VIIPLUS range are ideal for the automotive, machine building and
agricultural industries and indeed any application where lubricant
cannot be supplied continuously.
Material Information
- Low-maintenance standard solutions
Plain Bearing Production
Sliding elements in a great variety of designs are produced from
the composite material in cutting, stamping and shaping processes.
Standard designs are:
- Cylindrical bushes
- Thrust washers
- Strips
If these material sections are used to create slide paths, they
have the following main functions:
- Absorbing and transferring forces acting vertically to the running
surface
- Fixing moving components to each other
- Ensuring guidance accuracy for axial movements over the entire
service life
Strips are available in two material groups:
- Material group P1 for maintenance-free, dry-running applications
- Material group P2 for low-maintenance, lubricated applications
For the advantages of each group and help deciding which material
group is best for the relevant use, please refer to the information
provided in the section cylindrical bushes, flange liners and
thrust washers.
VSB-20 Flange liners PAF
- Marginally lubricated bushings for grease or oil lubricated
applications
- Standard parts contain grease indents in the sliding layer; plain
sliding layer available by request
- Optimum performance under relatively high loads and low speeds
- Suitable for linear, oscillating and rotating movements
- Wide range of parts available from stock
Suitable for rotating and oscillating movement, less maintenance
requirements due to the long re-lubrication intervals, lower wear,
lower susceptibility to edge loading, no absorption of water and
therefore no swelling, good damping behaviours, good resistance to
shock loads.
Strusture
Our wrapped POM lined bearings have a high wear resistance and low
friction even with very small quantities of lubricant
The surface carries a pattern of circular indents which should be
filled with grease on assembly
Low carbon steel gives exceptionally high load carrying capacity
and excellent heat disspation
1. POM thickness 0.30~0.50 mm. It provides high wearresistance and
low friction even with only minute volume oflubricant are supplied,
this bearing surface carries a pattern of circular indents which
should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special
composition of powdered copper is thermally fused to the steel
backing. This contact layer acts as an anchor for the layer and
conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel
back provides exceptional stability,load carrying and heat
dissipation characteristics.
Technical Data
Structure And Composition
- Metal-Polymer Composite Bushing Material
- Steel Back + Porous Bronze Sinter + POM with Lubrication Indents
| Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back
|
OPERATING PERFORMANCE |
Dry | Poor |
Oil lubricated | Good |
Grease lubricated | Very Good |
Water lubricated | Poor |
Process fluid lubricated | Poor |
Avaibearing Properties
GENERAL |
| Unit | Value |
|---|
Maximum load | Static
Dynamic | N/mm2
N/mm2 | 250
140 |
Operating temperature | Min
Max | °C
°C | - 40
110 |
GREASE LUBRICATED |
|
|
|
Maximum sliding speed |
| m/s | ＞2.0 |
Coefficient of friction |
|
| 0.05 – 0.20 |
Max. load | Static | 250N/mm2 |
Dynamic | 140N/mm2 |
| Rotaing oscillating | 60N/mm2 |
Max. speed | Dry | 2m/s |
Lubrication | >2m/s |
Max. PV (Dry) | Short-time | 3.6N/mm2*·m/s |
Continuous | 1.8N/mm2*·m/s |
Temp. | -195℃~+280℃ |
Friction coefficient Dry | 0.03~0.20 |
Lubrication | >2m/s |
Thermal conductivity | 42W (m·k)-1 |
Coefficient of thermal expansion | 11*10-6k-1 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates
Metric bearings and imperial bushings made to order: standard
bushing forms in special dimensions, half-bushings, special shapes
obtained by stamping, bearings with locating notches, lubricant
holes and machined grooves, customized bushing designs
Typical Applications
- Rear chassis hinges
- Articulation joints
- Spindles of drills
- Gearboxes & clutches
- Grinding and milling machines
