Zinc Plated Furniture Cam Lock Custom Panel Furniture Connection Kits

Product Description:

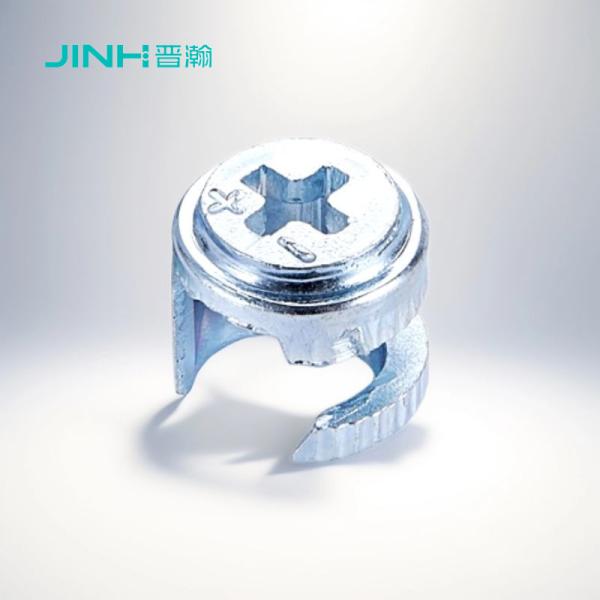

The JINHAN Minifix Cam Lock (Model JH-1049) is a high-performance fastening solution designed for seamless and durable connections in furniture assembly. Crafted from cold-rolled carbon steel with a blue zinc-plated finish, this cam lock ensures exceptional strength and corrosion resistance. Ideal for cabinetry and storage systems, it combines robust engineering with a sleek, low-profile design for both functional reliability and aesthetic appeal.

Key Features
Premium Material: Made from cold-drawn, high-quality carbon steel (superior to standard zinc alloy alternatives), offering enhanced tensile strength and long-term durability.
Hidden Installation: Low-profile design allows for discreet mounting, maintaining a clean and modern appearance.
Secure Grip: Vertical ridges on both internal and external surfaces of the eccentric cam increase friction, ensuring a tighter, more stable hold.
Optimized Dimensions: 12mm diameter and 13.5mm height, paired with a 13.5mm pre-drilled hole depth, ensure compatibility with standard furniture panels.
Corrosion-Resistant Finish: Blue zinc plating provides added protection against rust and wear, extending product lifespan.
Universal Model: Designed for versatile use across furniture types, including cabinets, wardrobes, and storage units.

Applications
The JH-1049 Minifix Cam Lock is engineered for connecting panels in a wide range of furniture and storage systems, such as:
Kitchen cabinets and modular units
Wardrobes and closet organizers
Shelving units and storage cabinets
Office furniture and display systems

Product Details:

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

Technical Parameters:

Packing Method:

3000/4000/5000pcs per carton or as per your requirements.
