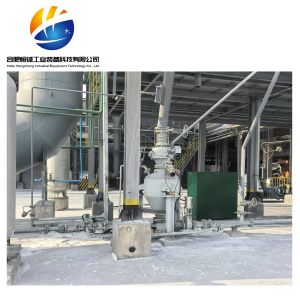

Powder Transport Medium Customizable Dense Phase Pneumatic Conveying Silo Pump Advanced Powder Conveying System

Categories Pneumatic Conveying Pump
Brand Name: Hengcheng
Model Number: PCD24/H PCD26/H PCD28/H PCD30/H
Certification: ISO CE
Place of Origin: China,Hefei
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5 sets\month
Delivery Time: 90 days
Packaging Details: Standard shipping packaging
Name: Dense Phase Pneumatic Conveying Vessel Pump
Type: Powder Enclosed Conveying System
Transport Items: Powder
Capacity: 5-150 m³/h
Applications: Power plant fly ash, cement, raw materials, mineral powder, etc
Transport medium: powder
Application: Power plant fly ash, metallurgy, mining, chemical industry, etc
Purpose: Transporting powdered materials
Working Pressure: 0.2-0.6 MPa
Silo Volume: 1-50 m³
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Powder Transport Medium Customizable Dense Phase Pneumatic Conveying Silo Pump Advanced Powder Conveying System

Core Advantages
  1. Energy saving and efficient
The conveying pressure is 0.3-0.6MPa, and the gas consumption is only one-third of that of the dilute phase system
Unique segmented boosting technology, suitable for long-distance transportation of over 500 meters

2. Wide adaptability of materials

Capable of handling particles with a diameter ≤ 50mm (such as slag, quartz sand)
⊙ Wear resistant alloy/ceramic lined pipes with a lifespan of over 10000 hours
3.Intelligent Control
PLC automatically adjusts pressure and flow rate to prevent pipe blockage and pulse phenomenon
Optional IoT remote monitoring, real-time feedback of transmitted data

Product Overview
The dense phase pneumatic conveying silo pump adopts the principle of high-pressure and low-speed conveying, and is specially designed for highly abrasive and fragile powder particles such as cement, fly ash, and chemical raw materials. Compared to dilute phase conveying, energy consumption is reduced by 30% -50%, material damage rate is less than 0.1%, achieving dust-free, low consumption, and high stability industrial grade conveying.
Our Dense Phase Pneumatic Conveying Vessel Pump is engineered for industries requiring gentle, high-capacity powder transfer with minimal air consumption and zero material degradation. Ideal for:
✔ Cement plants (cement, raw meal, fly ash)
✔ Power stations (fly ash, limestone powder)
✔ Mining & minerals (silica, alumina, bentonite)
✔ Food & pharma (sugar, starch, powdered additives)


Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density (t/)ModelPCD24/HPCD26/HPCD28/HPCD30/HConveying Distance
Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
Pulverized Coal0.5Delivery Volume (t/h)50~8060~9065~11080~13020020
Fly Ash0.7575~12585~13095~160125~19020020
Limestone Powder/Mineral Powder0.880~13090~140100~170130~20020020
Cement/Raw Meal1100~150115~175130~215165~26020020


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density (t/m3)ModelPCD24/LPCD26/LPCD28/LPCD30/LConveying Distance
Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
Pulverized Coal0.5Delivery Volume (t/h)20~4025~4530~5545~65100025
Fly Ash0.7535~6045~6545~8065~95100025
Limestone Powder/Mineral Powder0.840~6545~7050~8570~100100025
Cement/Raw Meal150~8055~9065~11090~120100025


Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density(t/)ModelPCD18/NPCD20/NPCD20/NReference Conveying Distance
Specification5.0~6.77.0~10.010.0~15.0m³Level (m)Vertical (m)
Pulverized Coal0.5Delivery Volume (t/h)12~2016~3225~5050030
Fly Ash0.7518~3225~4835~7050
Limestone Powder/Mineral Powder0.820~3526~5138~7550030
Cement/Raw Meal1.024~4232~6548~9550030
Silicon Powder1.228~5040~7555~11550030


Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

MaterialBulk Density(t/)ModelPCD08/MPCD10/MPCD12/MPCD14/MReference Conveying Distance
Specification0.2~0.50.6~1.61.5~2.52.5~5.0Level (m)Vertical (m)
Pulverized Coal0.5Delivery Volume (t/h)0.5~1.81.5~5.55.0~9.08.0~18.010020
Fly Ash0.750.9~2.82.5~8.57.0~14.012.0~27.010020
Limestone Powder/Mineral Powder0.81.0~3.03.0~9.08.0~15.012.0~28.010020
Cement/Raw Meal1.01.2~3.53.5~11.510.0~18.016.0~36.010020
Silicon Powder1.21.5~4.04.5~13.512.0~20.019.0~43.010020


Why Choose Our System?
1. Unmatched Reliability
• Patented pressure vessel design – 20% longer service life than competitors
• Auto pressure control – maintains steady flow without pulsation
2. Smart Operation
• PLC + touchscreen control – preset recipes for different materials
• Remote monitoring – real-time tracking via mobile/PC
3. ASEAN Market Focus
• CE & ATEX certified – meets strictest regional standards

Easy 4-Step Order Process:
1. Consultation – Share your material specs
2. Solution Design – We provide drawing layout & quote
3. Factory Acceptance Test – Verify performance
4. Installation Support – Onsite or remote guidance


Field Service
Installation and commissioning: Dispatch engineers to the customer's site to guide installation and commissioning, ensuring that the equipment meets the process requirements.
Regular maintenance: Provide preventive maintenance (such as valve seal inspection, pipeline wear assessment, control system calibration).
Emergency maintenance: Quickly respond to sudden malfunctions (such as pipe blockages, leaks, control system failures) and reduce downtime.
