| Brand Name: | GCL |
| Model Number: | Gprime P1.56\P1.95\P2.604 |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Place of Origin: | China |
| MOQ: | Min. order: 20 |
| Price: | Price to be discussed |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
| Delivery Time: | 15-20Days |
| Packaging Details: | Single package size:60X60X30 cm |
| brand name: | GCL |
| RODUCT MODEL: | Outdoor rental Gprime series |
| Panel size: | 500*500mm |
| Module size: | 250*250mm |
| ip rating: | IP65 |
| Certifications: | EMC/CE/ROHS/CCC/FCC/ISO |
| Panel weight: | 7.4kg/panel |
| Color: | Full Color |
| Brightness: | 4500nits |
| Refresh: | 7680Hz |
| Ohthers: | outdoor advertising machines |
| Company Info. |
| Shenzhen GCL Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Newest Outdoor Rental LED Screen P1.5625 P1.953 7680 Hz Rate Panel Curved Shape Screen For Stage Show Event and Outdoor advertising machine
Model Number:outdoor P1.5625, P1.953, P2.604 mm
Product Creative Concept:
1. There are three point spacing product specifications available for outdoor rental: P1.5625, P1.953, and P2.6mm.
2. Widely used in various scenarios such as outdoor concerts, commercial press conferences, roadshows, etc.
3,One hand operation, 3 seconds to complete the installation.

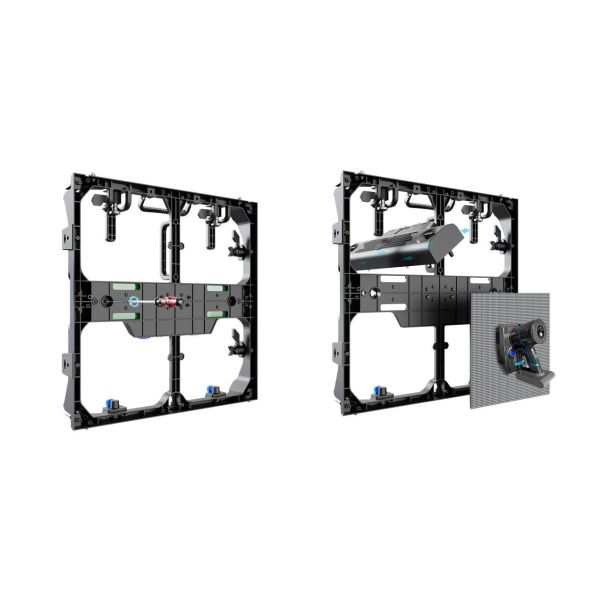

The handle is located in the middle of the cabinet, convenient for one-hand operation, The upper and lower lock can be operated with one hand, and it can be automatically inserted and installed quickly.
4,Front maintenance: remove the magnetic module and use a hexagonal screwdriver to unscrew the knob hole to remove the power box.
Rear maintenance: an independent modular design, allowing for easy front & rear maintenance of modules, power supplies, and receiving cards
5. The product has a brightness of 4500nits and a refresh rate of 7680Hz. When combined with a 125 * 250mm small module and a special 90 degree corner design, it can be used as an outdoor 360 degree vertical circular advertising machine, adding more application scenarios.
| Outdoor Product | Gprime-1.5 | Gprime-1.9 | Gprime-2.6 |
| Pixel Pitch (mm) | P1.5625 | P1.953 | P2.604 |
| Density pixels/㎡ | 409600 | 262144 | 147456 |
| LED Type | SMD1010 outdoor | SMD1010 outdoor | SMD1415 outdoor |
| Brightness (cd/㎡) | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ |
| Scan Method | 1/40S | 1/32S | 1/16S |
| Cabinet Size (mm) | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Module Size (mm) | 250*250*17mm | 250*250*17mm | 250*250*17mm |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | ≤7.5kg | ≤7.5kg | ≤7.5kg |
| Cabinet Maintenance | Full Front/Rear Service | Full Front/Rear Service | Full Front/Rear Service |
| Max Power Consumption/㎡ | 700W | 700W | 700W |
| Average Power Consumption/㎡ | 180W | 180W | 180W |
| Refresh Rate | 7680HZ | 7680HZ | 7680HZ |
| Grey Scale | 14BIT | 14BIT | 16BIT |
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | ﹣40℃-﹢70℃ | ||
| Working Humidity | 10%-90%RH | ||
| Protection Level | IP65 | ||
| Color Temperature | 3000-9500K | ||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||






|
