TRL230LLH Rolling Lobe Air Spring For HINO 700 FRT(LH) Air Suspension Auto Parts

TRL230LLH Rolling Lobe Air Spring For HINO 700 FRT(LH) Air Suspension Auto Parts

Product Description

Manufacturer: GUOMAT
Part Number: 1TTRL230LLH
Material: Rubber and Steel
Warranty: 12 Months
Position: Truck Axle

Application: For HN 700 FRT

The Following are the Original Equipment Manufacturers Number

Technical Data

The Design Height: 320mm

Top Cover Plate Diameter: 260mm

Combination Studs:M20X1.5,R3/8
Baffle Height: 100mm

Base Piston Diameter: 200mm
Base Piston Height: 172mm

For HINO Suspension Air Spring

HINO Truck Suspension Air Spring Shock Absorber
In the suspension system of HINO (Hino) trucks, air spring shock absorber (air suspension system) is one of its key components, mainly used to improve driving smoothness, protect cargo and chassis, and adapt to different load requirements

1. Functions of air spring shock absorber
Load adaptation: By adjusting the air pressure in the airbag, it automatically adapts to different loads and keeps the height of the vehicle body stable.

Damping and noise reduction: Compared with leaf springs, air springs can more effectively absorb road impacts and reduce vibration and noise.

Protect cargo: Especially suitable for the transportation of precision instruments, fragile goods and other vibration-sensitive cargo.

Extend chassis life: Reduce damage to the frame and components caused by road impact.

2. Common models of HINO truck air suspension
Some models of HINO's medium and heavy trucks (such as 300 series, 500 series, 700 series) can be equipped with optional or standard air suspension, for example:

HINO 700 (flagship heavy truck): commonly used in long-distance logistics and cold chain transportation, high-end models are equipped with air suspension.

HINO Profia (Japanese market model): Some models offer rear axle air suspension options.

3. Composition of air spring shock absorbers
Air airbag: made of rubber composite material, bears pressure and adjusts height.

Shock absorber (damper): cooperates with the airbag to control the rebound and compression speed.

Height valve: automatically adjusts the airbag inflation and deflation to maintain the set height.

Air tank & compressor: provides a compressed air source (shared with the brake system for some models).

Control system: can manually or automatically adjust the suspension hardness and height.

4. Common Problems and Maintenance
Airbag rupture: Aging, foreign body puncture or overload may cause air leakage, and surface cracks need to be checked regularly.

Air leakage failure: Check the air pipe joint and the sealing of the height valve.

Shock absorber failure: If the vehicle shakes more severely, it may be due to shock absorber oil leakage or valve body damage.

Height abnormality: It may be caused by height valve failure or insufficient air pressure.

Maintenance suggestions:

Clean the airbag surface regularly to prevent corrosive substances from remaining.

Check the sealing of the air pressure system to avoid airbag collapse after long-term parking.

Replace aging parts according to the manufacturer's manual (the general airbag life is about 5-8 years, depending on the use environment).

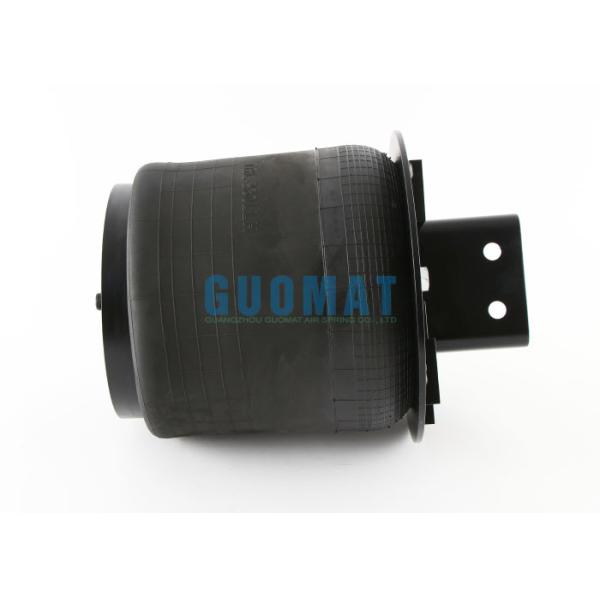

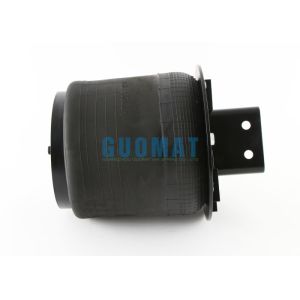

The pictures of GUOMAT No. 1TTRL230LLH

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
