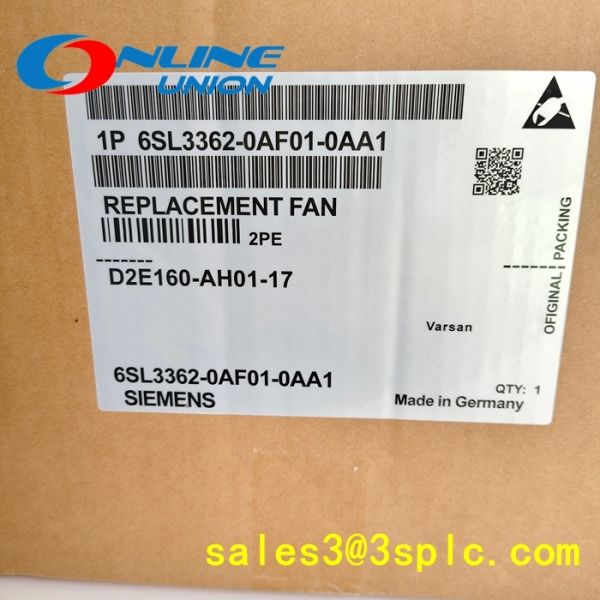

6SL3362-0AF01-0AA1 three-phase backup fan in the Siemens SINAMICS series

Product Name: Siemens SINAMICS Series Backup Fan
Model: 6SL3362-0AF01-0AA1
Application scenario: Electrical cabinet heat dissipation, suitable for industrial scenarios such as machine tools, printing, textiles, packaging, and automated production lines that require high dynamic response.
2, Physical characteristics

Impeller diameter: 160mm
Motor speed: 1850 revolutions per minute
Appearance material: plastic/galvanized sheet shell, metal impeller connected to metal outer rotor motor
Protection level: IP20
Size: Compact design, easy to integrate into electrical cabinets (compatible with standard electrical cabinet installation)
3, Electrical parameters

Working voltage: 230VAC (single-phase)
Voltage range: AC175V~235V
Working frequency: 50Hz
Working current: 1.80A
Input power: 655W
Starting capacitor: 10.0uF/450V
4, Performance parameters

Maximum air volume: 1195 cubic meters per hour (confirmed by most sources)
Noise index: 64 decibels
Maximum wind pressure: 200Pa to 725Pa
Service life: L10 expected to last for 35000 hours at 25 ℃
5, Environmental adaptability

Working temperature range: -25 ℃ to 40 ℃
Applicable altitude: ≤ 1000m (without power derating)
6, Wiring and installation

Lead method: 270mm long wire from the wind coil, with exposed TR64 plug at the end for power connection
Wiring instructions:
Blue line: power supply
Black line: Power common terminal
Brown line: capacitor
Color line: Grounding
7, Security protection

Basic protection functions: overcurrent, overvoltage, undervoltage protection
Certification standard: Complies with electromagnetic compatibility requirements for industrial environments and meets IE2 energy efficiency standards
8, Other information

Supporting equipment: Suitable for heat dissipation of Siemens frequency converters (such as SINAMICS S120 series), especially providing cooling for high-power components such as IGBTs, CPU boards, and driver boards.
This fan is designed specifically for industrial environments, with high reliability, long lifespan, and low noise characteristics, and is a key component to ensure the stable operation of the frequency converter.
