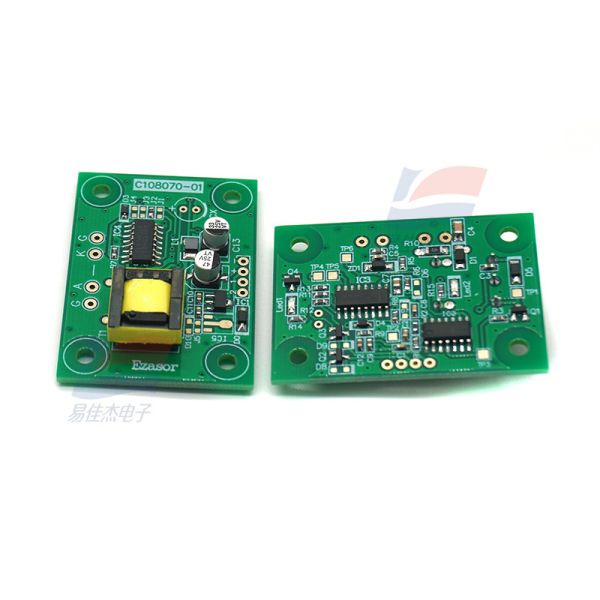

YJJ C108070-01 R2868 Flame Sensor UV Detector Development Board Demo Version

Categories UV Photodiode Sensor
Brand Name: Hamamatsu
Model Number: C108070-01 R2868
Place of Origin: Japan
MOQ: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200
Delivery Time: 5-8 days
Packaging Details: Box pack
Price: Negotiable
Usage: Ray Sensor
Product name: Red ultraviolet sensor
Discharge startup voltage: 280V
Discharge holding voltage: 230V
Average discharge current: 1 mA
Peak current: 30 mA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

YJJ C108070-01 R2868 Flame Sensor UV Detector Development Board Demo Version

Product Description:
YJJ C108070-01 R2868 Flame Sensor UV Detector Development Board Demo Version
Features:
R2868 is a UVTRON ultraviolet on/off detector that utilizes the metal photoelectric effect and gas multiplication effect. It has a narrow spectral sensitivity range of 185 nm to 260 nm and is completely insensitive to visible light. Unlike semiconductor detectors, it does not require a visible light cutoff filter, making it very convenient to use.
Detailed parameters
Spectral sensitivity characteristics (short) 185 nm
Spectral sensitivity characteristics (long) 260 nm
Electrode material Ni
Weight 1.5 g
[Maximum Rating] Power supply voltage (DC) 400 V
[Maximum Rating] Average discharge current 1 mA
[Maximum Rating] Peak current 30 mA
[Maximum Rating] Operating environment temperature -40 to +125 °C
Discharge startup voltage (DC) 280 V
Discharge holding voltage (DC) 240 V
Typical sensitivity value 5000 min-1
Maximum background value 10 min-1
[Recommended Operating Parameters] Power supply voltage (DC) 325 ± 25 V
[Recommended Operating Parameters] Average discharge current 0.3 mA
[Recommended Operating Parameters] Shortest extinction time 2 ms
Specifications:
Power supply voltage (DC)400V
Average discharge current1 mA
Peak current30 mA
Weight1.5g
