| Brand Name: | GCL |
| Model Number: | Gsurface-V |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Place of Origin: | Guangdong, China |
| MOQ: | Min. order: 20 |
| Price: | Negotiable |
| Delivery Time: | 15-20Days |
| Packaging Details: | Single package size:101X116X13 cm |
| Application: | Outdoor |
| Type: | LED |
| Color: | Full color |
| Panel Size: | 960*960 mm |
| Supplier Type: | Original manufacturer, ODM, OEM |
| use: | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment |
| Pixel Pitch: | 6mm,8mm,10mm |
| Brightness: | 6000-6500nits |
| IP Rating: | IP65 |
| Resolution: | 3840Hz |
| View Angle(H/V): | H140°,V140° |
| Module size: | 320*160mm |
| After-sales Service Provided: | 3 Years |
| Cabinet Weight: | 35KG |
| Maintenance: | Rear Service |
| Company Info. |
| Shenzhen GCL Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

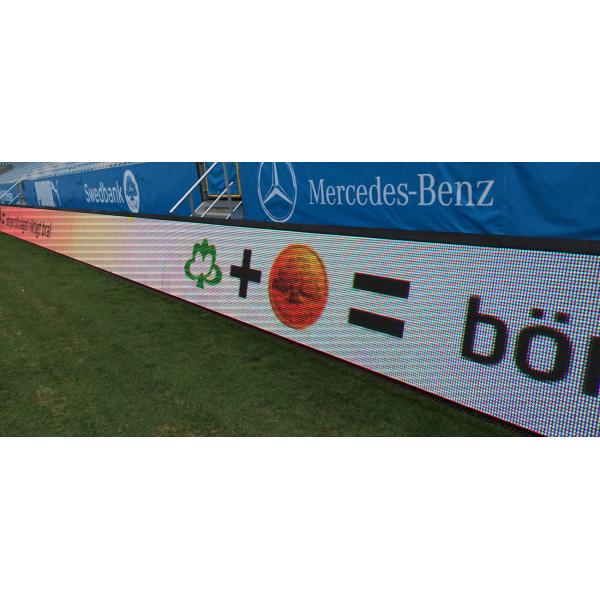

GCL Waterproof Full Color P6 P8 P10 mm Giant Stadium Panel Video
Wall Outdoor LED Display Screen
Product features
High Protection Performance
High quality cotton on top to reduce impact
Polymer soft cover to prevent collision injuries
Easy Installation
Two fast locks on both sides and the top, easy installation;
Multiple Usages
The cabinet without the protection pad and the supporting leg
Can be used in either outdoor rental use or fixes installation
Support frame can be adjust the angle
Parameters of Gsport Series:
| Product | P6 | P8 | P10 |
| Pitch(mm) | 6 | 8 | 10 |
| Density(pixels/m2) | 27777 | 15625 | 1000 |
| LED Type | SMD2727 | ||
| Brightness(nits) | 6000 | 6000 | 6500 |
| Cabinet Size(mm) | Customized | ||
| Cabinet Material | Magnesium Diecasting | ||
| Cabinet Weight | 35kg/m2 | ||
| Protection Level | IP65 | ||
| Cabinet Maintenance | Rear Service | ||
| Max Power Consumption | 750w/㎡ | 800w/㎡ | 720w/㎡ |
| Average Power Consumption | 250w/㎡ | 300w/㎡ | 240w/㎡ |
| Refresh Rate | 2880-3840Hz | ||
| Grey Scale | 16 bit | ||
| Viewing Angle | H140o,V140o | ||
| Voltage | AC100~240V(50-63Hz) | ||
| Working Humidity | 10% -- 90%RH | ||
| Color Temperature | 6500-9500K | ||
| Certificationa | EMC/CE/ROHS/CCC/FCC/ISO | ||





|
