New Energy Vehicle Modification Training Education Equipment

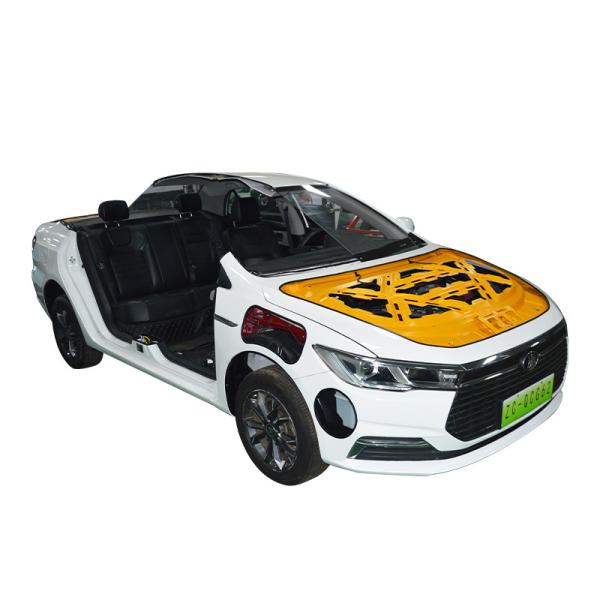

BYD Qin EV Pure Electric Vehicle Dismantling Training Model Technical Specifications

1. Basic Powertrain Configuration

• Power Type: Pure electric (dedicated training model)
• Motor Configuration: Permanent magnet synchronous motor (training dismantling version)
• Power Parameters: Max. power 100kW (for demonstration purposes)
• Battery System: 53.1kWh training battery pack (non-functional, for structural study only)
• Range Data: Nominal 421km (for reference only)

This Vehicle Modification Training & Education Equipment accurately replicates the original powertrain layout, with all components designed for repeated disassembly and reassembly, allowing trainees to study EV core systems and working principles.

2. High-Voltage Safety Training System

• High-Voltage Distribution System: Equipped with visual protection devices
• Relay Detection Module: Supports status monitoring exercises
• Pre-charge Simulation System: Demonstrates complete pre-charge sequence
• Insulation Detection Module: Enables fault simulation training
• Collision Safety Demo: Shows high-voltage cutoff mechanism
• Interlock Detection System: Supports fault setting and diagnostics

The model features a complete high-voltage safety training system, with all protection strategies accessible via dedicated interfaces for parameter monitoring and fault simulation—ideal for New Energy Vehicle (NEV) safety education.

3. Training-Specific Features

Safety Enhancements

All high-voltage components are insulated

• Emergency stop switch installed
• Critical dismantling points feature special markings

Training Support Functions

• Quick-connect compatibility with fault simulation platforms
• Rapid-disassembly wiring harness design
• Includes specialized dismantling toolset
• QR-coded 3D identifiers on key components

Structural Advantages

• • Modular chassis for sectional disassembly

  • Removable battery pack assembly

  • Modularized drive system configuration

  • Preserved original wiring layout

As dedicated Vehicle Modification Training & Education Equipment, this model combines authentic automotive architecture with optimized training safety and operability, serving as the premier platform for EV technology instruction.

4,Product detail diagram

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
