| Categories | Automatic Blow Moulding Machine |
|---|---|
| Brand Name: | Dawson |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 42860-43820 |
| Payment Terms: | L/C, T/T |
| Blow Molding Type: | Extrusion Blow Molding Machine |
| Maximum Application Size: | 30L |
| Cooling water pressure: | 0.6 MPA |
| Water Consumption: | 150 L/Min |
| Mould Lifespan: | > 1,000,000 Cycles |
| Mold Material: | P20, 2316, S136H, Aluminum with beryllium copper. |
| Language settings: | Chinese and English operation panel |
| Instructions provided: | Instructions in Chinese and English |
| Labor demand: | 1~2 operetor |
| Samples provided: | If required |
| Company Info. |
| Dawson Machinery & Mould Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

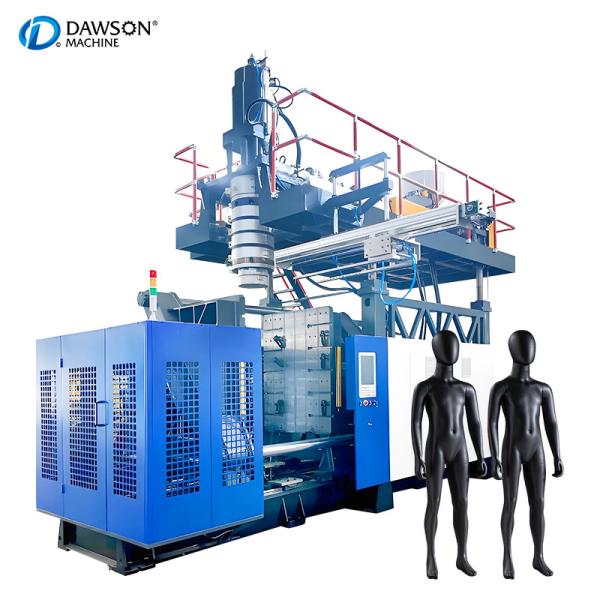

Extrusion Blow Molding Machine ABLD100
| Max.product volume | L | 120 | 300 |
| Dry cycle | PC/H | 360 | 300 |
| Screw diameter | MM | 100 | 120 |
| Screw L/D ratio | L/D | 28 | 33 |
| Screw drive power | KW | 55 | 132 |
| Screw heating capacity | KW | 22 | 36 |
| No.of heating zone | ZONE | 5 | 6 |
| Output of HDPE | KG/H | 200 | 350 |
| Oil pump drive power | KW | 22 | 37 |
| Clamping force | KN | 600 | 900 |
| Max.size of mold | MM | 1000×1300 | 1200×1700 |
| Material storage | L | 14 | 24-35 |
| Template size | MM | 1150x1150 | 1200×1600 |
| Mold stroke | MM | 500-1350 | 880-1700 |
| Max.die diameter | MM | 450 | 700 |
| Die heating power | KW | 21 | 36 |
| Die heating few segments | ZONE | 5 | 6 |
| Blowing pressure | MPA | 0.8 | 0.8 |
| Air volume | m³/MIN | 1.6 | 1.6 |
| Cooling water pressure | MPA | 0.3 | 0.3 |
| Water consumption | L/MIN | 150 | 180 |
| Size of machine | L×W×H | 5.4×2.5×4.5 | 7.5×3.5×5.5 |
| Weight of machine | TON | 15 | 36 |
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience
in the field of plastic machinery, injection molding machine, blow molding machine, PET blow molding
machine, injection blow molding machine, during the past 18 years,
we always force our energy into new areas of plastic machinery,
plastic packaging machinery, to update the technology, to learn
advanced experience, to confirm new theory and new design, we are
forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective
after-sales service, upon the market,customers from more than 45 countries, we provide complete solution
for your plastic industry business, as well as all sorts of technical support & after-sale
services!
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai.
For overseas customers, you can fly to Shanghai Pudong
International Airport. We can pick you up in the Airport. (or
Hongqiao International Airport. ) We also provide visit online by
video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo
if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us
for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before
loading,after shipment we provide 24 HRS online support, video
technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual
production cycle will vary according to the degree of
customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and
stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for
guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant
design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the
full set of machines after testing in our factory. It will save a
lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do
our best to give you max support!
|
