| Categories | Silicone Thermal Pad |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIF780R Series |
| Certification: | RoHS and UL recognized |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | 0.1-10 USD/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | 24*13*12cm cartons |
| Products name: | Silicone Thermal Pad 8.5W/M-K Insulation Conductive Pads Thermal Gap Pad For Unmanned Aerial Vehicle(UAV） |
| Keywords: | Thermal Gap Pad |
| Sample: | Sample Avaliable |
| Flam rating: | 94 -V0 |
| Thermal Conductivity: | 8.5 W/mK |
| Color: | Gray |
| Hardness: | 30±10 Shore 00 |
| Thinkness range: | 2.0mmT |
| Company Info. |
| Dongguan Ziitek Electronical Material and Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

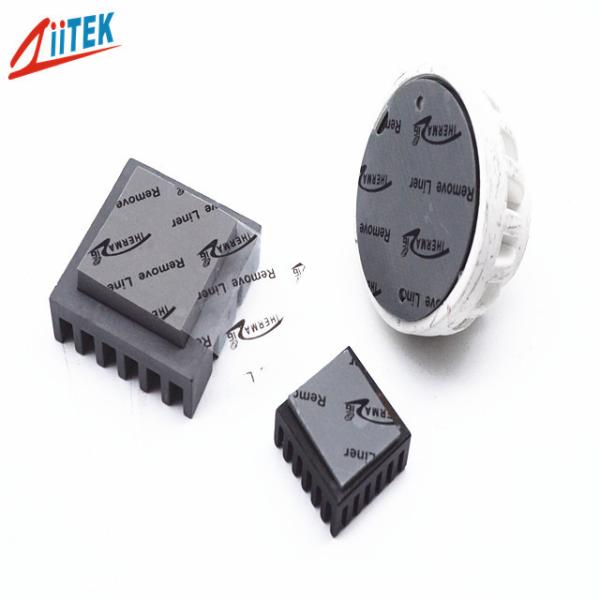

Silicone Thermal Pad 8.5W/M-K Insulation Conductive Pads Thermal Gap Pad For Unmanned Aerial Vehicle(UAV)
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
TIFTM780R thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 8.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIFTM780R Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Specific Gravity | 3.55g/cc | ASTM D792 |
| Thickness range | 2.0mm | ASTM D374 |
| Hardness (thickness ≥1.0mm) | 30±10 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | ≥4000 VAC | ASTM D149 |
| Operating Temp | -45 ~200℃ | ******* |
| Dielectric Constant | 5.5 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
| Fire rating | 94-V0 | UL E331100 |
| Thermal conductivity | 8.5W/mK | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Product Thicknesses:
Product Thicknesses:0.020-inch to 0.200-inch(0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming.
Safe disposal method does not require special protection. The
storage condition is low temperature and dry , away from openfire
and away from direct sunlight. For detailed method, please refer to
the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
|
