Our stainless steel 316 wrapped bushing, compliant with DIN 1494 and ISO 3547 standards, is a maintenance-free solution designed for exceptional performance in a wide range of applications. Constructed from corrosion-resistant stainless steel 316, this bushing offers superior durability and longevity, even in harsh environments.

The (polytetrafluoroethylene) wrapping enhances the bushing's lubrication properties, reducing friction and wear during operation. This self-lubricating design ensures smooth performance and extended service life, eliminating the need for regular lubrication or maintenance.

Compliant with DIN 1494 and ISO 3547 standards, our bushing meets industry-recognized quality and performance criteria. This ensures that it will integrate seamlessly into your machinery and provide reliable performance in various settings.

Wh you need a bushing for heavy-duty industrial equipment, marine applications, or any other high-performance scenario, our stainless steel 316 wrapped bushing is an ideal choice. Its maintenance-free design reduces downtime and operational costs, making it a cost-effective solution for your business.

In conclusion, our stainless steel 316 wrapped bushing, compliant with DIN 1494 and ISO 3547 standards, offers a maintenance-free, high-performance solution for a wide range of applications. Its superior durability, lubrication properties, and industry-recognized compliance ensure reliable and cost-effective operation for your machinery.

Search for bushing sleeve staninless steel 316 product designation, category, Cylindrical bushes, Flanged bushes, Thrust washers, Sliding plates, CAD models or catalogs. Get a Free Quote!

Bushes EGB..-E40, bushes, maintenance-free, with steel backing

Wrapped split bushings produced from an ID of 3mm to 400mm, wrapped bushing, split joint type,stainless steel 316 or 304 backed bushing bearings/, DIN 1494/ISO 3547, Maintenance-free.

Corrosion-free and maintenance-free material due to stainless steel and . Outstanding sliding and wear performance.

The recommended application conditions are the high load, high temperature and high polluted environment with grease or oil lubrication. It has excellent wear resistance. This material is widely used in the kingpin bushing, piston pump, agricultural machinery. It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.

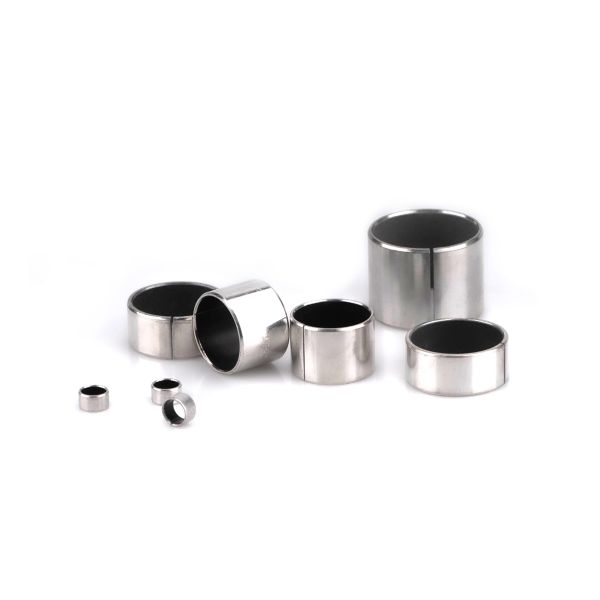

-based Self-Lubricating Metal-Polymer stainless steel backed bushing bearings

COMPOSITE BEARING STRUCTURE : -BASED BEARINGS AND THERMOPLASTIC BEARINGS

The superior performance of metal polymer plain bushings lies in their unique composite structure:

1.Stainless Steel 316 or 304 backing for high mechanical strength

2.Impregnated anti-friction overlay enriched with and fillers or extruded thermoplastic tape

3.Porous sintered bronze interlayer for high wear resistance

• Specific load capacity static≤ 250 [N/mm2]
• Specific load capacity dynamic≤ 140 [N/mm2]
• Sliding speed≤ 2.0 [m/s]
• Friction value0.02 [µ] to 0.20 [µ]
• Temperature strain-200 [°C] to +280 [°C]
• Max. PV-value1.8 [N/mm² x m/s] ,for a short time 3,6

Materials

• Support materialStainless steel
• Intermediate layerSintered bronze
• Sliding layer

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

4.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •
  •
  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

•

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

•

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.

•
