M0820-150mm Extended 6mm Shank Tungsten Carbide Burrs Standard Double Cut Carbide Burrs

M0820-150mm Extended 6mm Shank Tungsten Carbide Burrs Standard Double Cut Carbide Burrs

Description:

The M0820-150mm Extended 6mm Shank Tungsten Carbide Burr with Standard Double Cut combines the extreme durability and cutting power of tungsten carbide with a versatile conical shape and extended reach, making it an indispensable tool for precision work and material removal in challenging applications.

Specifications:

Brand: BABOS

Cutting Head Material: Tungsten Carbide

Shank Material: 40Cr Steel

Cut Dia.: 8mm

Cut Length: 20mm

Shank Diameter: 6mm

Shank Length: 150mm

Cut Type: STANDARD CUT(M), STANDARD DOUBLE CUT (X), WIDE CUT (C), FINE CUT (F), ALUMINUM CUT (W), DIAMOND CUT(D)

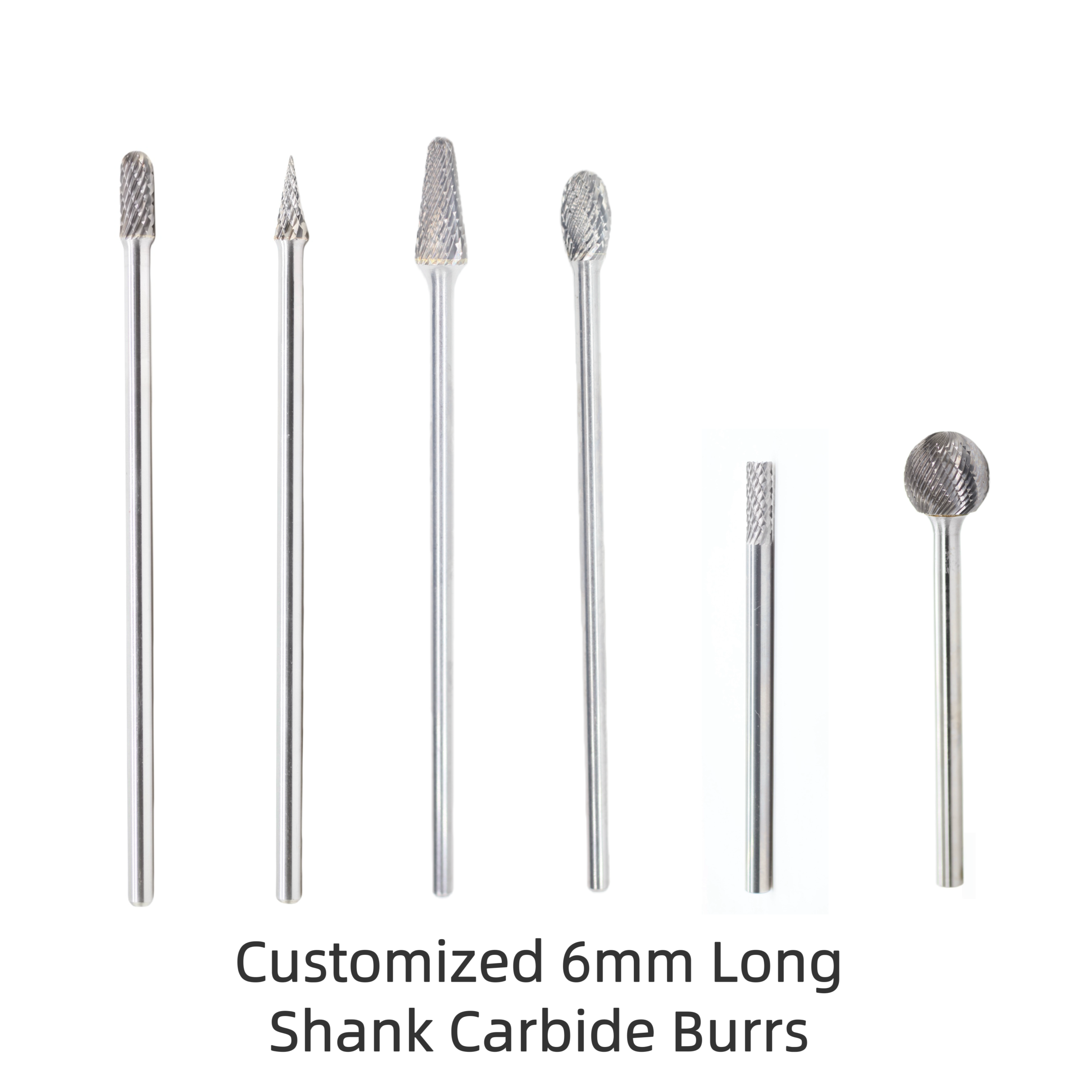

Available Shapes(A-N)

SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Customization:

1. Please send us the drawings or other important information if you need non-standard carbide burrs.
2. Please contact us if you need more information about 150mm extended shank burrs with any shape.
3. OEM is avaliable.
4. Free sample is avaliable.
5. We also offer other long shank burrs in metric standard, such as: 75mm, 100mm,150mm,300mm,450mm

Cut Selection Guide:

STANDARD CUT(M)	STANDARD DOUBLE CUT (X)	WIDE CUT (C)	FINE CUT (F)	ALUMINUM CUT(W)	DIAMOND CUT(D)
