Dwyer Series 2000 All Stainless Steel Digital Magnehelic Gauge (0–2 kPa)

Dwyer Series 2000 All Stainless Steel Digital Magnehelic Gauge (0–2 kPa)

Product Introduction

The Dwyer Series 2000 Digital Magnehelic Gauge is a precision instrument designed for measuring low-pressure differentials in industrial and commercial applications. Constructed with stainless steel components, it offers ±1% full-scale accuracy for pressure ranges up to 2 kPa. Leveraging Dwyer’s frictionless Magnehelic motion principle, the gauge eliminates wear and lag, ensuring reliable readings for positive, negative (vacuum), or differential pressure of air and non-corrosive gases. Its rugged design and NEMA 4X enclosure make it suitable for harsh environments, while the 4-digit LCD display provides clear, real-time pressure visualization.

Product Features

Measurement Capabilities

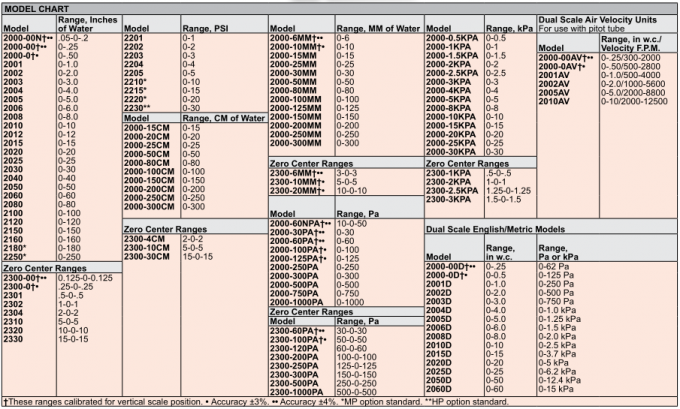

Pressure Range: 0–2 kPa (customizable across 81 ranges, down to 0–60 Pa).

Accuracy: ±1% FS (±2% for ranges ≤1 in w.c.).

Media Compatibility: Air and non-combustible, non-corrosive gases.

Engineering Units: Selectable in kPa, Pa, in w.c., mm w.c., psi, mBar, etc.

Design & Durability

Stainless Steel Construction: Resists corrosion and wear for long-term reliability.

NEMA 4X (IP66) Enclosure: Protects against dust, water jets, and harsh conditions.

Frictionless Magnehelic Principle: Eliminates mechanical wear, ensuring consistent performance.

Display & Power

4-Digit LCD Display: 0.60" height digits with selectable update intervals (1 sec–10 min).

Power Options:

9V alkaline battery (150 hours at 1 sec update; 1.5 years on standby).

External 9–24 VDC power supply for continuous operation.

Versatility

Wide Temperature Range:

Operating: 0–140°F (-18–60°C); compensated: 32–122°F (0–50°C).

Overpressure Protection:

2 psi (13.7 kPa) for ranges ≤5 in w.c.; 11 psi (75 kPa) for higher ranges.

Technical Specifications
