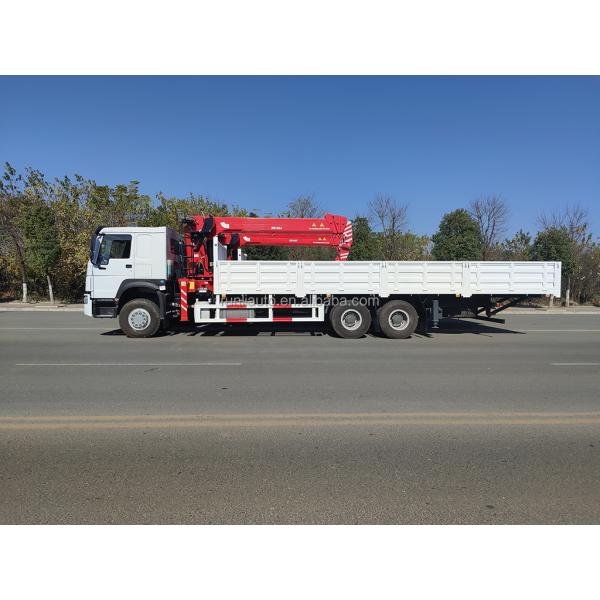

Cargo Mounted Crane SQS250 SQS300 SINOTRUK HOWO 6x4 10t Crane Truck

Dimension(L×W ×H)(unloaded)(mm)

12000×2550×3200

Cargo body size (L×W×H)(mm)

9600x2300x800

Approaching angle/Departure angle(°)

16/9

Overhang(front/rear) (mm)

1500/3300

Wheel base (mm)

5850+1350

Max speed(km/h)

110

Curb weight(kg)

13800

Loading Weight(kg)

15070

Actual loading

10-30T

Engine

(Steyr technology, made in China)

Model

WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

213/2200

Emission

EURO 2

Fuel tanker capacity (L)

400

Transmission

Model

HW13710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF(LHD)

Front axle

Steering with double T-cross section beam HF9

Rear axle

Cast axle housing, central double reduction with differential locks between axles and wheels HC16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Mounted crane

SQ10A4

Brand

CX

Max loaded weight

10 Tons

Control system

Hydraulic rod operation

Working radius

13.6m

Hydraulic oil tank volume

160 L

Rotation

360°

Kerb weight

3970KG

Lifting height

15.6 m
