Mv Swa Electrical Armoured Cable 2.5mm2 - 500mm2 Kema Certified Up To 35kv

2.5MM2-500MM2 KEMA Certified MV SWA Armoured Electrical Power Cable Up to 35kV

Application:
Medium Voltage XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4.Excellent electrical performance, resistance to chemical corrosion.

Construction

Application:


a. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
b. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.
c. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.

Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request

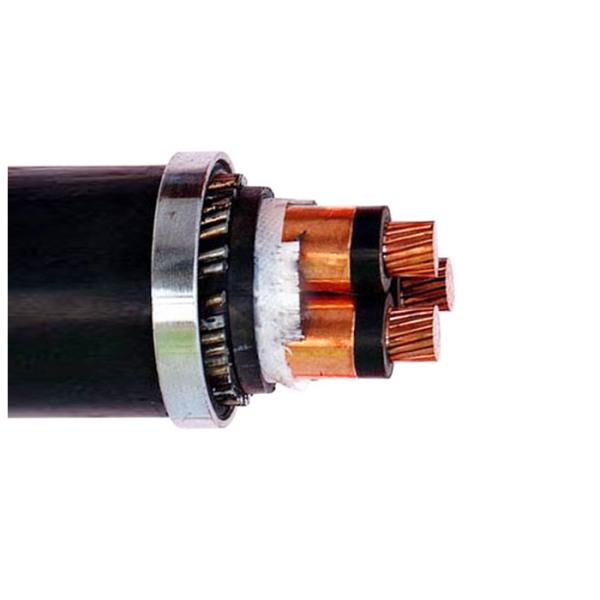

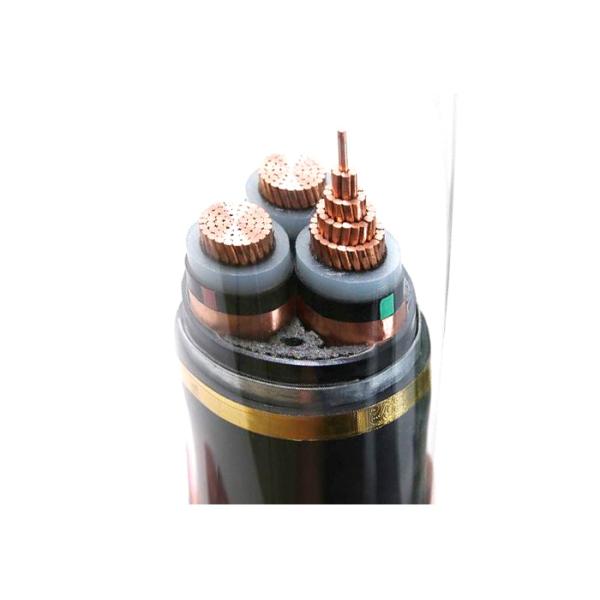

　Three Core XLPE Cable Steel Wire Armored
　　1. Conductor 2. Conductor Screen 3. XLPE insulation 4. Insulation Screen
　　5. Metal Screen 6. Filler 7. Seperating Sheath(Inner Covering)
　　8. Armor 9. Outer sheath
　　Service Conditions And Parameters Of Cable:
　　The maximum conductor operating temperature: 90℃;
　　Short Circuit Temperature 250℃Not more than 5 secretary
　　Environmental Temperature of operating
　　In air: 40℃, Underground: 25℃
　　Depth of laying in direct: 80cm
　　Thermal Resistance of soil: 100℃.cm/W
　　Environment temperature should be no lower than 0℃ for laying the cable.
　　D.C Resistance of finished cable at 20℃ per km is not more than the following.
