GB DIN JIS Concentric Reducer Wall Thickness Sch5-SCH160 High Corrosion Resistance

ASTM, AISI, GB, DIN, JIS Stainless Steel Butt Welded Fittings concentric weld reducer

►Products Description

Our stainless steel butt welded concentric reducers represent the perfect combination of precision engineering and industrial durability. Manufactured from high-grade 304/316/316L stainless steel, these reducers ensure smooth diameter transitions in high-pressure piping systems while maintaining optimal flow characteristics.

Key Product Advantages:

Precision Flow Control: The true concentric design minimizes turbulence and pressure loss for maximum system efficiency
Superior Material Quality: Manufactured from certified stainless steel with excellent corrosion and erosion resistance
Strict Compliance: Conforms to ASME B16.9, ANSI B16.25, ASTM A403 standards
Versatile Applications: Ideal for oil & gas, chemical processing, power generation, and water treatment systems

Our Manufacturing Superiority:

State-of-the-art production facilities with advanced CNC machining and automated welding
Rigorous quality control including hydrostatic testing, dimensional checks, and material certification
Custom engineering capabilities for special sizes, thicknesses, and material grades

Inventory & Supply Chain Strength:

One of the industry's largest ready stock with immediate availability of standard sizes from 1/2" to 48"
Complete schedule coverage including SCH 10S, 40S, 80S, and heavier wall thicknesses
Rapid delivery network ensuring just-in-time supply for urgent project requirements

►Industry-specific attributes

Place of Origin	China
Brand name	Yuhao
Connectivity	Welding
Size	1/2" up to 110"
Wall thickness	SCH 5s-SCH XXS
customized Support	ASTM DIN EN BS JIS GOST etc.
Surface treatment	Sand blasting, Roll blasting, Pickled or Polished
Type	Concentric, Eccentric
Pressure	High Pressure
Packing	Cartons, Pallet, Cases

►Product Size

DN	NPS	OD	Nominal Wall Thickness
DN	NPS	OD	Schss	Sch10S	Sch405	Sch8os	Sch10	Sch20	Sch30	STD	Sch40	Sch60	XS
6	1/8	10.3	-	1.24	1.73	2.41	-	-	-	1.73	1.73	-	2.41
8	1/4	13.7		1.65	2.24	3.02	-	-	-	2.24	2.24	-	3.02
10	3/8	17.1	-	1.65	2.31	3.2	-	-	-	2.31	2.31	-	3.2
15	1/2	21.3	1.65	2.11	2.77	3.73	-	-	-	2.77	2.77	-	3.73
20	3/4	26.7	1.65	2.11	2.87	3.91	-	-	-	2.87	2.87	-	3.91
25	1	33.4	1.65	2.77	3.38	4.55	-	-	-	3.38	3.38	-	4.55
32	1 1/4	42.2	1.65	2.77	3.56	4.85	-	-	-	3.56	3.56	-	4.85
40	1 1/2	48.3	1.65	2.77	3.68	5.08	-	-	-	3.68	3.68	-	5.08
50	2	60.3	1.65	2.77	3.91	5.54	-	-	-	3.91	3.91	-	5.54
65	2 1/2	73	2.11	3.05	5.16	7.01	-	-	-	5.16	5.16	-	7.01
80	3	88.9	2.11	3.05	5.49	7.62	-	-	-	5.49	5.49	-	7.62
90	3 1/2	101.6	2.11	3.05	5.74	8.08	-	-	-	5.74	5.74	-	8.08
100	4	114.3	2.11	3.05	6.02	8.56	-	-	-	6.02	6.02	-	8.56
125	5	141.3	2.77	3.4	6.55	9.53	-	-	-	6.55	6.55	-	9.53
150	6	168.3	2.77	3.4	7.11	10.97	-	-	-	7.11	7.11	-	10.97
200	8	219.1	2.77	3.76	8.18	12.7	-	6.35	7.04	8.18	8.18	10.31	12.7
250	10	273	3.4	4.19	9.27	12.7	-	6.35	7.8	9.27	9.27	12.7	12.7
300	12	323.8	3.96	4.57	9.53	12.7	-	6.35	8.38	9.53	10.31	14.27	12.7
350	14	355.6	3.96	4.78	-	-	6.35	7.92	9.53	9.53	11.13	15.09	12.7
400	16	406.4	4.19	4.78	-		6.35	7.92	9.53	9.53	12.7	16.66	12.7
450	18	457	4.19	4.78	-	-	6.35	7.92	11.13	9.53	14.27	19.05	12.7
500	20	508	4.78	5.54	-	-	6.35	9.53	12.7	9.53	15.09	20.62	12.7

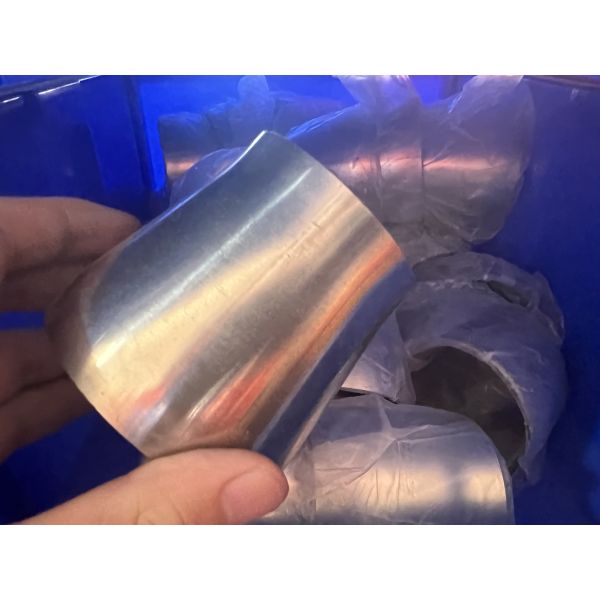

►Shot Shoot

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How is the after-sales service?

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.

Product Tags:


*From:	Your email address is incorrect!
*To:	Zhejiang Yuhao Stainless Steel Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Butt Welded Pipe Fittings
Brand Name:	Yuhao
Model Number:	Butt Weld Pipe Fittings
Certification:	ASTM, AISI, GB, DIN, JIS
Place of Origin:	China
MOQ:	100kgs
Price:	Negotiation
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	2000tons/per month
Delivery Time:	15days
Packaging Details:	Standard sea worth bundles,Standard Plywood cases
Wall Thickness:	Sch5-SCH160
Standard:	ASTM, AISI, GB, DIN, JIS
Surface Finish:	Polished, Brushed, Matte, Sandblasted
Material:	304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.
Pipe Fitting Type:	Concentric reducer
Connection Type:	Butt Welded
Application:	Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding
Diameter Range:	DN15-DN900
Corrosion Resistance:	High Corrosion Resistance
Size:	1/2" up to 110"
End:	Bevel end ANSI B16.25
Package:	Wooden box or Pallet or carton
Customized Support:	OEM, ODM
