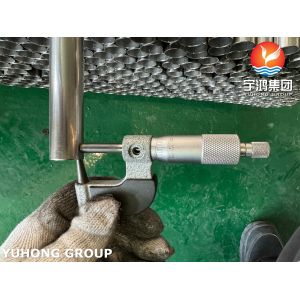

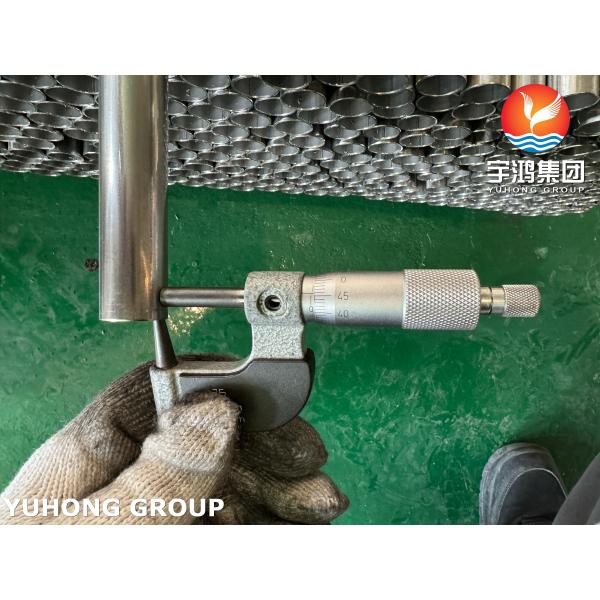

ASTM A249 TP316L Stainless Steel Welded Tube Bright Annealed

ASTM A249 TP316L Stainless Steel Welded Tube Bright Annealed

ASTM A249 is a standard specification for seamless and welded austenitic stainless steel tubes for boilers, superheaters, heat exchangers, and condensers, while TP316L is one of the stainless steel grades under this standard and is the ultra-low carbon version of TP316 stainless steel. ASTM A249 TP316L stainless steel welded tube is commonly used in environments with high requirements for product corrosion resistance, especially in chemical, petrochemical, food and beverage, papermaking, marine, heat exchanger, condenser, and other sanitary cleanliness applications. It is also widely used in the nuclear industry.

ASTM A249 TP316L Stainless Steel Welded Tube Key Characteristics

• Process type: ASTM A249 standard covers seamless steel tubes and welded steel tubes. Seamless tubes are mainly produced through perforation, extrusion, or hot rolling/cold drawing processes, with no weld seams on the surface; Welded tubes are usually made by using automatic welding processes such as TIG welding, laser welding, plasma welding, and high-frequency welding to curl and shape steel strips or plates, and then weld them together. Welded tubes need to meet the same mechanical properties, corrosion testing, and flaw detection requirements as seamless tubes.
• Heat treatment: All ASTM A249 TP316L tubes must undergo solution heat treatment to completely dissolve carbides into the austenitic matrix and allow the material to recrystallize and soften, achieving optimal corrosion resistance and mechanical properties. The main method is to first heat to a high temperature of about 1040-1150 ° C (1900-2100 ° F), and then rapidly cool (quench), usually by water quenching or spray cooling. This ensures that carbides do not precipitate in the sensitization temperature range, maintaining the material's resistance to intergranular corrosion.
• Surface treatment: Depending on the application requirements, acid pickling passivation (removal of oxide scale and formation of passivation film), polishing (mechanical polishing to achieve Ra value requirements, especially for sanitary applications), sandblasting and other treatments may be carried out.

ASTM A249 Stainless Steel Tubes Mechanical Properties

ASTM A249 Stainless Steel Welded Heat Exchanger Tube Chemical Composition

ASTM A249 TP316L Stainless Steel Welded Tube Application:

• Heat exchanger and condenser tubes: This is one of the most classic applications of TP316L stainless steel welded tubes. ASTM A249 TP316L stainless steel welded tube can be widely used in chemical, petrochemical, power (power plant condenser) HVAC, Shell and tube heat exchangers in fields such as ships have high corrosion resistance to cooling water (especially chloride ions), steam, and various process media.
• Food, beverage, dairy, pharmaceutical (biopharmaceutical) industry: In sanitary grade process piping systems, ASTM A249 TP316L stainless steel welded tubes can be used to transport raw materials, products, CIP/SIP cleaning solutions, purified water, injection water, etc. In such industrial systems, it is usually required that the inner wall of the connecting pipeline be smooth and free of dead corners (the inner weld bead must be treated flat or removed+polished), easy to clean and disinfect, corrosion-resistant, and the material is pure. Must comply with strict standards such as 3-A Sanitary Standards, ASME BPE (Biological Processing Equipment), EHEDG, FDA, etc. In this regard, TIG welding is widely used due to its long length and good controllability of the inner surface.
• Chemical and petrochemical process pipelines: ASTM A249 TP316L stainless steel welded tube typically plays an important role in systems that transport moderately corrosive chemicals, solvents, and intermediates. In such non extremely demanding industrial environments, welded pipes are an economical choice.
• Water treatment and distribution system: ASTM A249 TP316L stainless steel welded pipes can be used as corrosion-resistant pipelines in ultra pure water systems, seawater desalination equipment, and wastewater treatment.
• Structural components and decoration: When both corrosion resistance and appearance are required, ASTM A249 TP316L can often be used as building decoration, railings, handrails, etc.
