Container House Introduction:
Prefabricated container house is a kind of custom-made modular/prefab/mobile house , which are generally made into six sided boxes constructed in a factory, then delivered to site and using a crane, the modules are set onto the building's foundation and joined together to make a single building. It is strong and firm with high wind resistance and earthquake resistance performance.
The container modules can be placed side-by-side, end-to-end, or
stacked, allowing a wide variety of configurations and styles in
the building layout which lead to multi-bay or multi-story
solution.
| Advantages of container house | Functional and Comfortable | Fully equipped with kitchen, bathroom, electrical and plumbing systems. Full options to meet living or working usage. |
| Various appearances, colors and designs | Supports personalized customization of exterior wall color, door and window styles, interior layout and floor, etc. to meet customers' different aesthetic and usage needs. | |
| Modular type allows for flexible combination | Modular design allows for flexible combinations — units can be used individually or joined together horizontally and vertically. | |
| Quick installation, saving time and labor costs | All modules are prefabricated in the factory, and only simple lifting and connection are required on site, which can be completed by a team of two people in three hours. | |
| Strong structure, safe and durable | The galvanized steel structure is wind-resistant, earthquake-resistant, and corrosion-resistant (suitable for seaside locations) and complies with the building standards of many countries. The walls are made of sandwich panel with good thermal insulation. The product has a service life of up to 15-20 years. | |
| Green and environmentally friendly and Recyclable | Reusable and recyclable design helps reduce environmental impact — an eco-friendly building solution. |
Detachable Container House Specification:
Unit Size (20ft container house) | length | 6055mm |
| width | 2990mm | |
| height | 2890mm | |
| External Area | 18.1m² | |
| Parameters | Floor Live load | 2.0 KN/m² |
| Roof Live load | 0.5 KN/m² | |
| Wind load | 0.6 KN/m² | |
| Seismic Resistance | Grade 8 | |
| Design | Roof Type | Flat roof with drainage gutter |
| Numbers of layers | ≤3 layers | |
| Service life | 15-20 years | |
| Structural Frame | pillar | Hot-dip galvanized steel, t=2.2mm - 4mm |
| roof main beam | Hot-dip galvanized steel, t=2.2mm - 4mm | |
| roof secondary beam | Galvanized steel, t=1.1mm - 1.5mm | |
| floor main beam | Hot-dip galvanized steel, t=2.2mm - 4mm | |
| floor secondary beam | Galvanized steel, t=1.1mm - 2mm | |
| Surface Treatment | Electrostatic spraying and baking process | |
| Roof | Roof external sheet | 0.4mm thick galvanized metal sheet |
| Insulation | 50 / 75mm Glass fiberwool coil | |
| Indoor ceiling sheet | 0.3/0.4 thick galvanized metal sheet | |
| Wall | basic wall panel | Insulated sandwich panel, 50/75mm EPS, Rockwool |
| Decorative panel | Aluminum with PU insulation | |
| Floor | Substrate | 18mm thick cement fiberboard, density>1.3g/cm³ |
| Decorative panel | 1.5mm thick PVC coiled floor, various colors on option | |
| Door and Window | Plastic steel window, Aluminum alloy window, Steel security door, Stainless steel door, Glass door. Custom size and types are availble. | |
| Electricity | 220V~250V; With wire, distributor box, fuse box, lights, switch, and socket | |

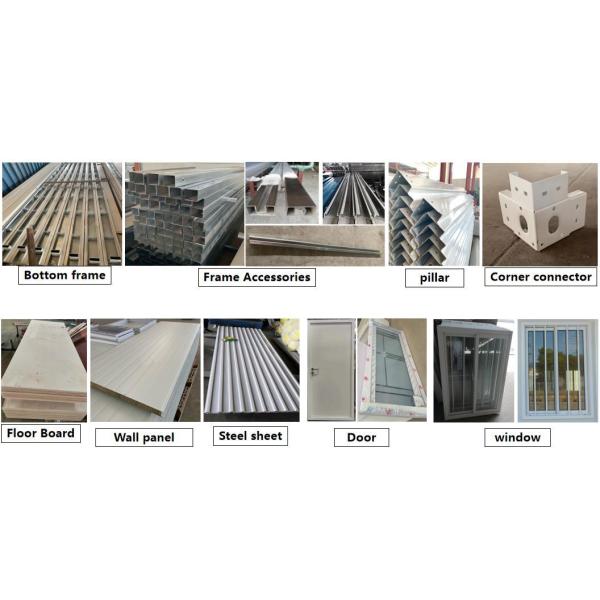

Steel Components Showcase:
KXD Customized Service:
| Customized Service Always Possible For You | ||
| Color and Appearance | Different colors and apprearance options for choice. We could also produce as your design and prefered appearance. | |
| Roof for Solar Panels | Accptable | |
| Inner Layout & Accessories | Indoor partition rooms, Toilet system, Shower system, Washroom system, Kitchen system. All are availble to make and offer as the different usage. | |
| Disassembly and Reassembly | Available and Easy processing | |
| Multi-unit and storeys to combine | Different combinaion to achieve different demanding sizes | |
| Transport | Easy transporting by car tail or mobile roller bracket | |

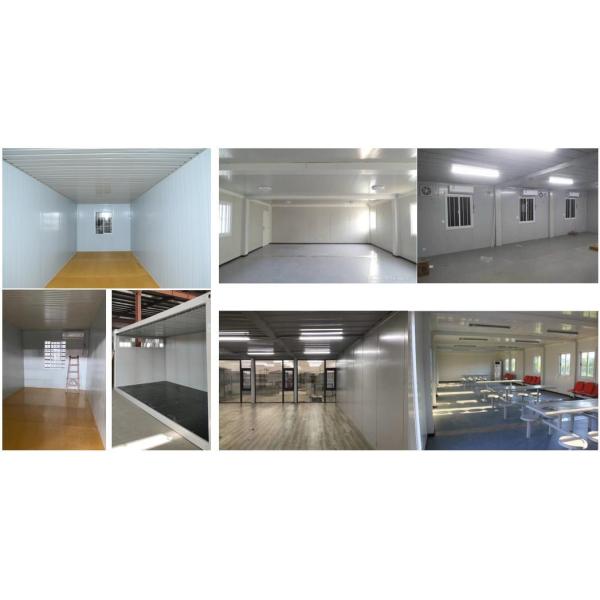

Inner View of Container house:

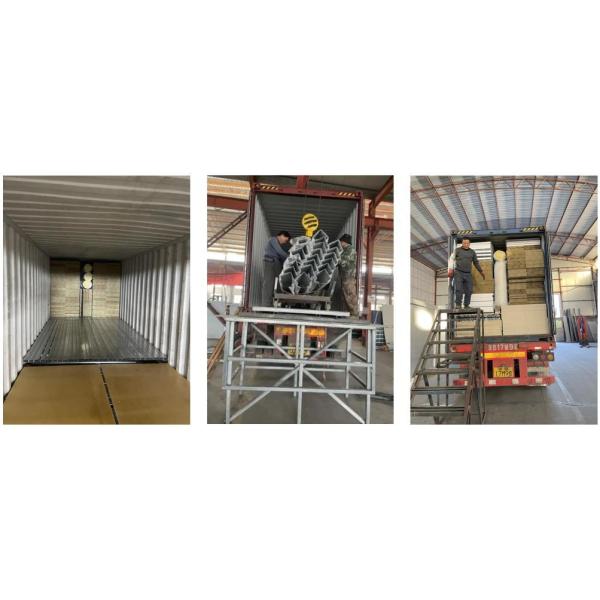

Loading and Shippment Process of Container house:
|
